Brand: General Electric
Product type :GE
Payment method: Wire transfer, Western Union
Shipping port: Xiamen, China
Delivery time :1-3 working days
Condition: New and 100% original
Warranty :12 months
The GE DS200 is a voltage feedback scale plate for the Mark V Speedtronic turbine control system. This is the next generation of boards with improved performance and reliability compared to previous generations. The DS200 has many improvements, including:
Improved accuracy and stability
Reduce noise and distractions
Improved diagnostics and fault tolerance
Improve the scalability of future applications
The DS200 is a field replaceable unit that is easy to install and configure. It is compatible with all Mark V Speedtronic turbine control systems.

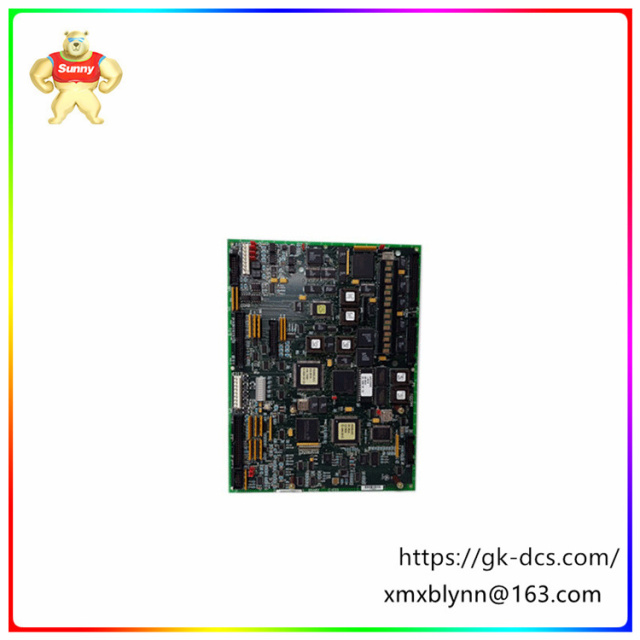

The DS200LRPAG1AGF is a GE circuit board component designed for Mark V Series turbine control. The MKV is the later Speedtronic gas and steam turbine management system that can be used in either TMR or Simplex form, depending on the complexity and needs of the end user. The DS200LRPAG1AGF EX2000 line protection circuit card is usually used with the EX2000 interface. Please note that DS200 series motherboards do not provide any type of component or firmware updates; If necessary, please refer to similar boards listed in the DS215 series listed on our website, such as DS215215LRPAG1AZZ01A.
Hardware tips and specifications
The DS200LRPAG1AGF serves as a line protection card and has more hardware components to help with this function. First, the DS200LRPAG1AGF board is marked with a large number of reference indicators and alignment marks, and includes several factory-made holes, including the center of each edge and a hole at the corner of the board. These drilling holes allow mounting hardware to be added to the board, including brackets and screws, and insulation to protect DS200LRPAG1AGF driver installers from potentially dangerous surface voltages.
The DS200LRPAG1AGF cable protection card has multiple connectors for transmitting data, including terminal blocks, piercing connectors, and female vertical cable connectors. Other board components on the DS200LRPAG1AGF include multiple jumper switches for custom board operation, integrated circuits such as FPgas (field programmable gate arrays) and oscillating chips, potentiometers, resistors, resistor network arrays, radiators with transistors, capacitors (including surface mount high-voltage electrolytic capacitors), leds Indicators, reset switches, relays and diodes. This DS200LRPAG1AGF model Mark V Series printed circuit board is not actually considered to be the original Mark V Series line protection card manufactured by GE; This will be the DS200LRPAG1 female printed circuit board product. Most importantly, this particular model of Mark V Series line protection card is considered to have a specially assembled version of the DS215 representation; Unlike most Mark V series printed circuit boards.
