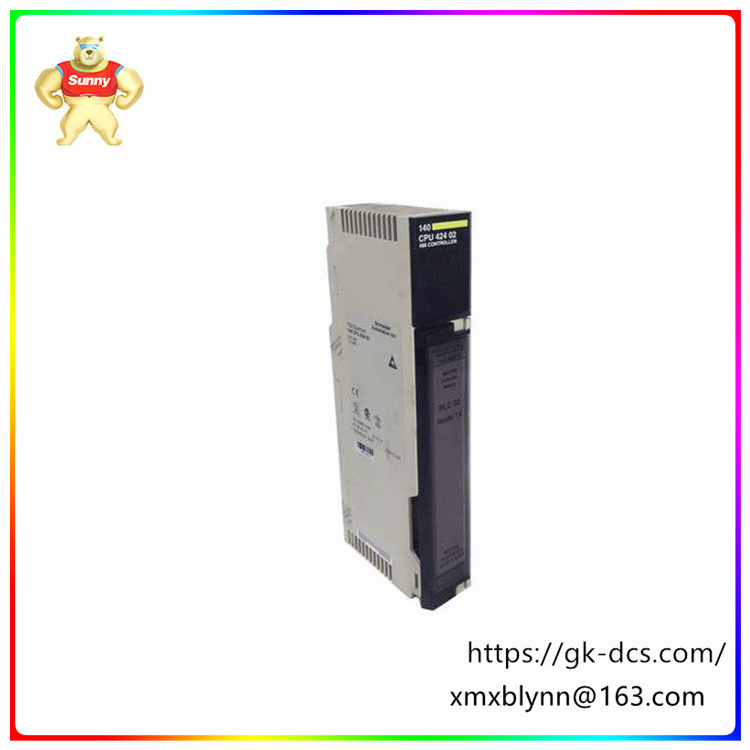

The 140CPU42402 is a Quantum CPU module manufactured by Schneider Electric, specifically their Modicon brand which acts as the brain of the TSX Quantum family of Programmable Logic controller (PLC) systems.
Here is a breakdown of its main functions and applications:
Features:
The 140CPU42402 is the central processing unit (CPU) of the TSX Quantum PLC system. It is responsible for:
Execute PLC programs stored in memory, containing instructions for controlling machines and processes.
Process input signals received from various sensors and I/O modules connected to the PLC system.
Generate control signals based on program logic and processed data. These signals are then sent to the output module, which ultimately controls the machine and process.
Features:
Processing power: While details may vary depending on model revisions, the 140CPU42402 May provide 32-bit processing power for efficient execution of programs in real-time industrial control applications.
Memory: It may require a separate memory expansion board to run. This allows for increased memory capacity to store complex PLC programs, user data, and system information.
Communication capabilities: 140CPU42402 May support communication with programming tools and other devices over ports such as RS-232 or Ethernet (depending on the specific model and configuration).
Applications:
The 140CPU42402 is designed for a variety of industrial automation applications due to its processing power, including:
Machine Control: (Manufacturing, Robotics)
Process Control: (Chemical processing, Oil & Gas)
Material handling System: (conveyor, sorter)
Data acquisition and monitoring system
