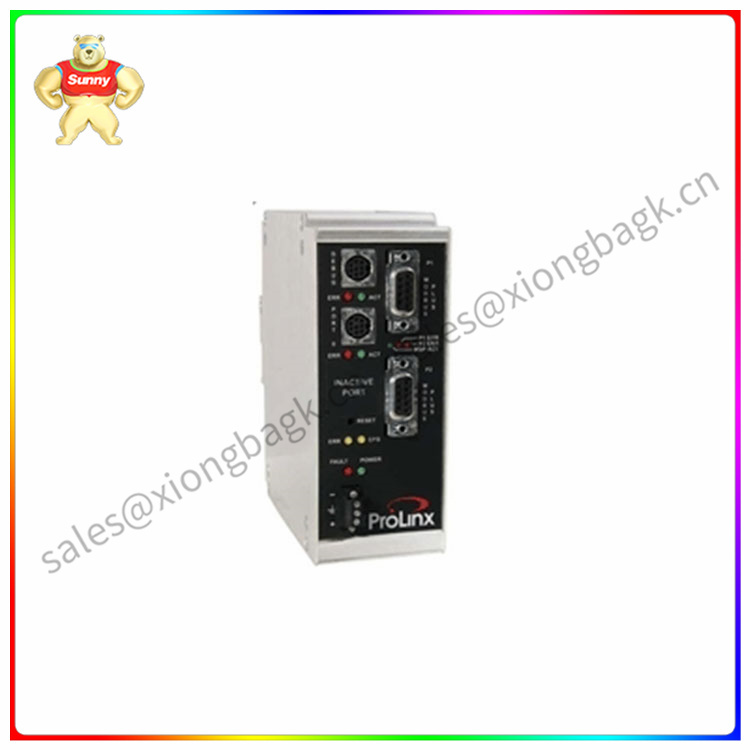

PROSOFT 5301-MBP-DFCM is a professional communication module that can be used to connect and control Modbus Plus devices. The following is a detailed description of the module:
Product Description:
The module supports a number of different connectivity modes, including Modbus Plus, DF1 and ASCI.
The module can be configured and programmed via a USB or RS-232 serial port and can be plugged directly into the controller's slot.
The module can be used to implement a variety of different communication and control functions. For example, the module can communicate with PLC and HMI devices, so as to achieve data collection, control and monitoring functions. In addition, the module also supports remote
Access and control, which can be used for remote monitoring and control.
Product parameters:
Power supply: 24 VDC, rated 18 to 32 VDC
Operating temperature: -4 ° F to 122 ° F (-20 ° C to 50 ° C)
Storage temperature: -40 ° F to 185 ° F (-40 ° C to 85 ° C)
Relative humidity: 5% to 95% (non-condensing)
Dimensions: The standard dimensions are 5 20 inches high x 2.07 inches wide x 4.52 inches deep (13.2 cm x 5.25 cm x 11.48 cm) and the extended dimensions are 5 20 inches high x 2.73 inches wide x 4.52 inches deep (13.2 cm x 6.934 cm x)
11.48 cm)
LED indicator: including power and module status, application status, serial port activity, serial port error status, etc
The 5301-MBP-DFCM is a standalone DIN rail mounted protocol gateway with multiple functions and features. The following is a detailed explanation of its functions and features:
Feature
Modbus Plus Connectivity: This module supports the Modbus Plus protocol and can easily connect and communicate with other Modbus Plus devices.
DF1 device integration: The 5301-MBP-DFCM supports not only Modbus Plus, but also DF1 devices, making it easy to integrate DF1 devices into the system.
Server Support: The module is designed with server support, making it easy to connect to Rockwell Automation PLC equipment such as CLX, SLC, PLC, CPLX, etc.
Multi-port configuration: The module offers one Modbus Plus configurable DB-9F port and one configurable serial port, as well as up to four configurable serial ports, providing great flexibility for device connectivity.
peculiarity
High flexibility: Since the module supports multiple protocols and multiple configurable ports, users can flexibly configure and connect devices according to their needs.
Powerful interface: Combined with Modbus Plus and DF1 support, this module provides a very powerful interface for many DF1 devices in today's industrial market.
Wide range of applications: Due to its functionality and flexibility, the module can be used in most industries, especially in manufacturing, oil and gas, power, and food processing.
Easy integration: Modules are designed with ease of use and integration in mind, making connectivity with other devices and systems simple and efficient.
In summary, the 5301-MBP-DFCM is a powerful, flexible and easy to integrate industrial automation module for a variety of application scenarios and industries.
