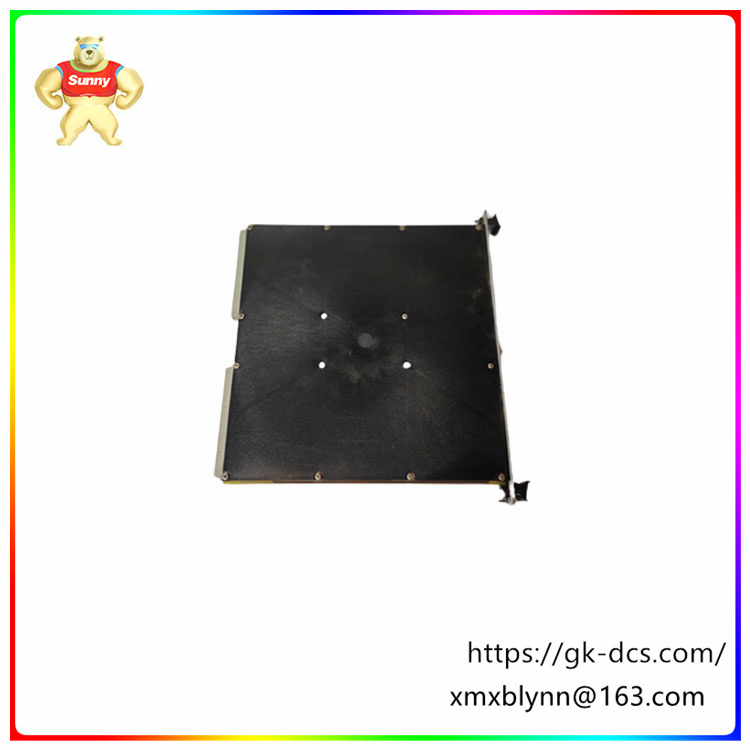

5464-660 Woodward output module
Brand: Woodward Model: 5644-660
Delivery time: 3 working days Origin: Germany
Price: Please contact us Weight: 2.5kg
Loading port: China
Xiamen (in Fujian Province)
Bank Express partners: fedex, DHL, UPS and your express account
Services: Professional sales provide 24 hours /7 days online service
Product Details:
These controls can be used in forward or reverse action applications, as well as single or series actuators.
Models available in three different actuator current ranges, as well as high-voltage models (90 to 150 Vdc or 88 to 132 Vac, 45 to 440 Hz)
And low-voltage models (20 to 40 Vdc). High-pressure models are identified on the front as such; Low pressure models do not.
In a reverse-acting system, when the actuator voltage is reduced, the actuator requires more fuel.
A complete loss of voltage in the actuator will drive the actuator to full fuel.
This allows the standby mechanical ball-head governor to be controlled, rather than turning off the prime mover as in direct-acting systems.
Optional deceleration ramps are also available.
When this option is present, the time to warm up from rated speed to idle is about 20 seconds.
If this option does not exist, this happens immediately.
Table 1-1 and 1-2 show the part numbers and functions for all 9905/9907 Series 2301A load distribution and speed control.
These Woodward 2301A controllers accept high or low voltage power supplies.
Low-voltage models operate at 20 to 40 Vdc, while high-voltage models operate at 88 to 132 Vac or 90 to 150 Vdc.
Both low and high voltage models require a power capacity of at least 15 W.
Do not remove the printed circuit board (PCB) from the control cabinet unless absolutely necessary.
If the PCB must be removed from the control cabinet, follow the following precautions:
Do not touch any part of the PCB except the edges.
Do not touch electrical conductors, connectors, or components with conducting devices or touch them with your hands.
When replacing a PCB, place the new PCB in the plastic anti-static bag it came in until you are ready to install it.
After removing the old PCB from the control cabinet, immediately put it into the anti-static protection bag.
