Product Number: 5503-282
Lead time: 2-3 days
Product Organization: United States
Brand: Woodward
Loading port: Xiamen
Payment: Wire transfer and Western Union

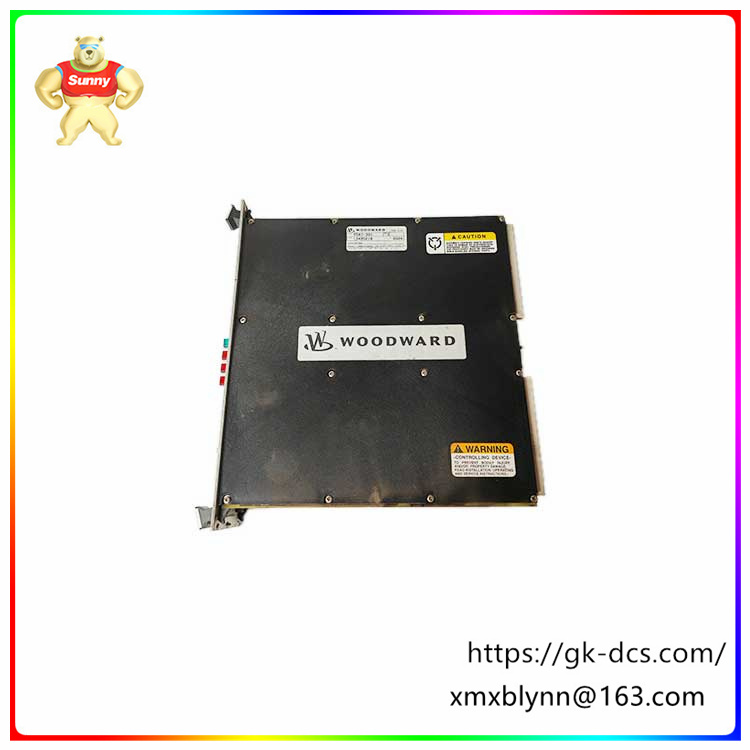

The load sharing module model produced by Woodward is suitable for engines equipped with speed controls that accept ±3 Vdc speed setting inputs,
0.5 to 4.5 Vdc input or PWM (pulse width modulation) input.
The load sharing module allows the use of Woodward power generation accessories and allows for non-Woodward power generation when equipped
The engine of the manufactured speed control unit is shared between the engine and the engine controlled by Woodward Electronic Control Unit or the control unit using other Woodward load sharing modules
Load.
The load sharing module provides synchronization and load sharing for engines in generator set applications.
Other devices in the control system include Woodward SPM-A synchronizer, SPM-D synchronizer,
Automatic generator load Control (AGLC) and automatic Power transmission and Load Control (APTL).
Power supply DC model 18-32 Vdc, about 5 W.
AC model jumper optional for 95-130 or 190-260 Vac wire-to-wire,
50-400 Hz, about 10 W.
Input three-phase PT Input 95-130 or 190-260 Vac wire-to-wire, 50-400 Hz.
The PT input load is 1.6 W per phase at 240 Vac and 0.4 W per phase at 120 Vac.
Three-phase CT input is 3-7 arms at full load, and the CT input load at full load is 0.1VA per phase.
Load sharing inputs 0-3 Vdc to 25 k impedance in synchronous mode and opens the circuit in down mode.
The sync input is compatible with the optional Woodward SPM-A synchronizer.
Speed adjustment allows the output level to be manually adjusted using an external 10 k potentiometer (not available on part number 9907-173).
Droop switch The external droop switch should be connected to the auxiliary circuit breaker contact in series.
When the voltage drop switch or auxiliary circuit breaker is disconnected, select the voltage drop mode.
The output load signal The DC signal is proportional to the total actual current induced by the load sharing module.
Used to adjust the load gain.
