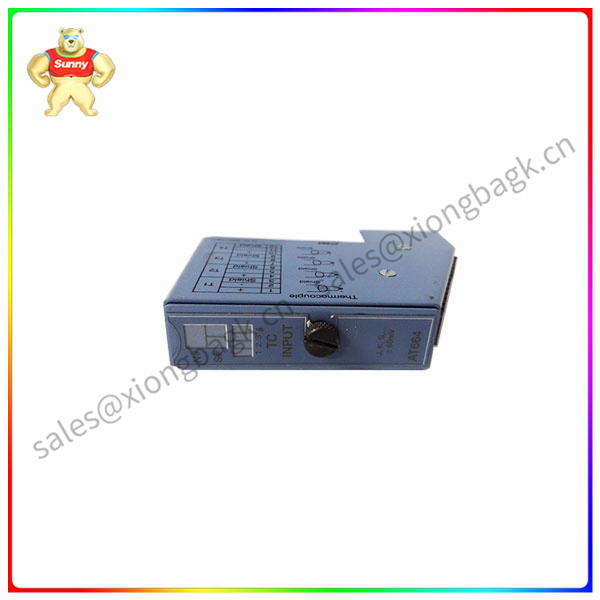

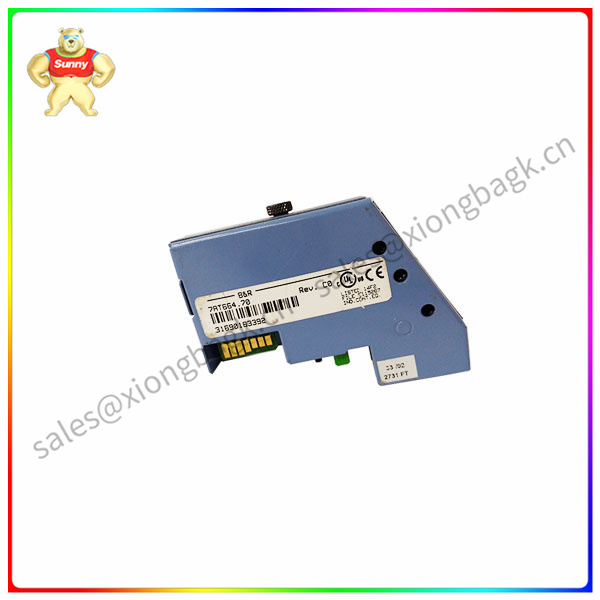

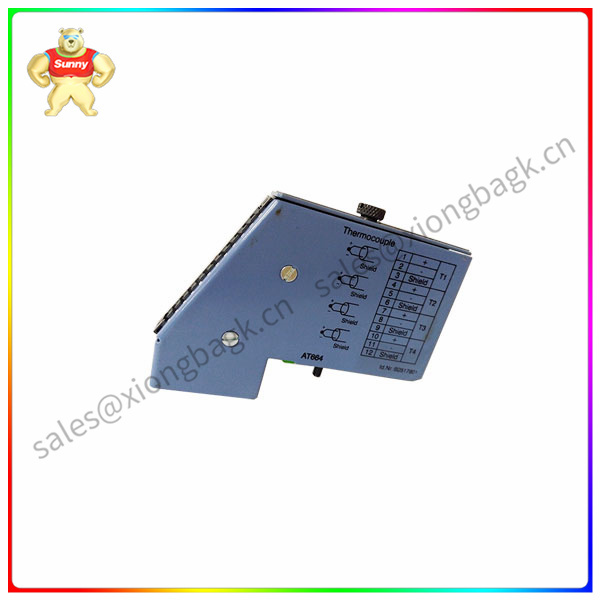

The 7AT664.70 is an analog input module commonly used in industrial automation and control systems to receive and process input signals from analog sensors and convert them into digital signals for monitoring, control and data acquisition. The module may have some specific functions and features, such as:
Analog input: Can receive analog signals, usually voltage or current signals, to represent physical parameters such as temperature, pressure, flow, etc.
Digital output: The received analog signal is converted into a digital signal for subsequent processing and analysis.
Communication interface: There may be an interface to communicate with other devices or systems, such as a serial interface or Ethernet interface.
Fault detection and alarm function: there may be fault detection and alarm function, which can detect abnormal conditions and issue alarms in time.
Industrial automation control using the 7AT664.70 module usually requires the following steps:
Hardware connection: The 7AT664.70 module is connected to other devices in the industrial automation system, such as sensors, actuators, etc. Ensure that connections are correct, stable, and comply with relevant electrical specifications.
Parameter setting: Set the parameters of the 7AT664.70 module according to the actual requirements, such as input signal type, input range, output type, etc. The Settings of these parameters will affect the input and output characteristics of the module and need to be adjusted according to the actual application.
Communication Settings: As required, configure the communication interface of the 7AT664.70 module, such as serial interface or Ethernet interface. Set parameters such as communication protocol, baud rate, data bit, and stop bit to communicate with other devices or systems.
Program writing: According to the actual needs, write a control program, using 7AT664.70 module to receive and process the input signal of the analog sensor. According to the input and output characteristics of the module, the sensor data is processed and the control signal is output to realize the automatic control of the industrial equipment.
Debugging and testing: After the program is written, debug and test. The correctness of input and output characteristics and control program of 7AT664.70 module is tested by simulating the actual operating environment. Find and solve problems in time to ensure the stability and reliability of industrial automation control.
