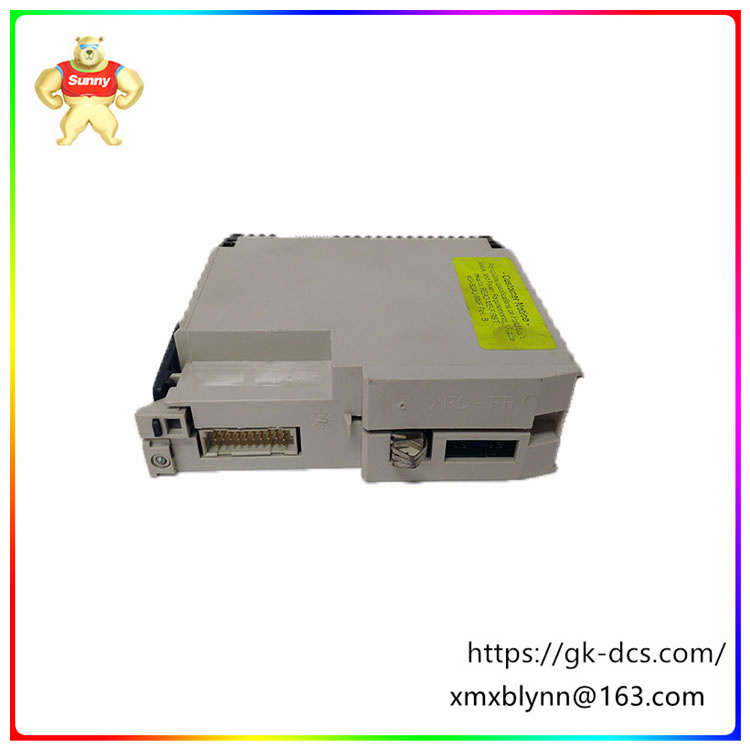

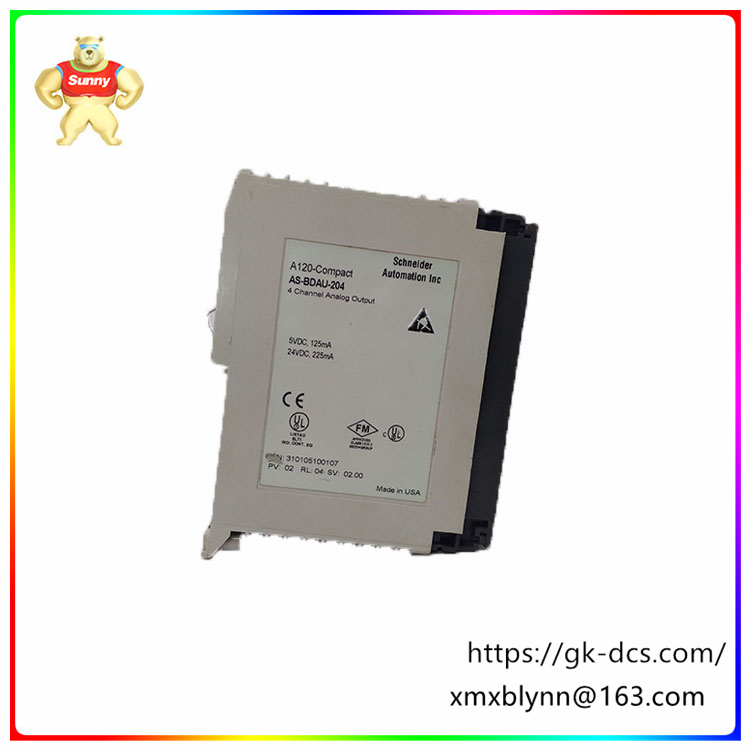

AS-BDAU-204 is an analog input module manufactured by Schneider Electric. This module has four channels and no optical isolation. Its main features include dual slope integral A/D conversion, which is capable of converting analog values to 12-bit digital values. This transformation is done for a specific recommended scope.
The AS-BDAU-204 module can be used with a two-wire +/ -500 mV sensor field unit or a PT100 four-wire resistance temperature detector field device to enable accurate analog signal acquisition and processing in practical applications.
In addition, the AS-BDAU-204 is also a 4-channel analog output module designed to control adjustable frequency drivers, positioning valves, dampers, etc. Each channel can be configured independently to provide voltage or current loop output. In order to function properly, the module requires power from an external power supply (250mA @ 24VDC). If you do not use an external power supply, the module will get power from the internal bus, but it may cause an incorrect reading.
In addition, to maximize the performance of AS-BDAU-204, it is recommended to set the unused channel to the voltage mode configured by ASBDAU204. This can not only avoid the waste of resources, but also ensure the stable operation of the module.
In addition, the AS-BDAU-204 features 4-quadrant control and sinusoidal commutation, which improves motor performance. To facilitate user configuration, Nanotec offers free Plug & Drive Studio software.
Overall, the AS-BDAU-204 is a powerful and flexible analog input/output module for use in a wide range of industrial automation and control systems to meet the needs of users for analog signal acquisition, processing and control.
AS-BDAU-204 module has a wide range of applications, mainly used in industrial automation and control systems for analog signal acquisition, processing and control. Because it has four channels, each of which can be configured independently, it is particularly suitable for applications that require multiple analog input or output channels.
AS for suitable devices, the AS-BDAU-204 module can be used with a variety of devices. For example, it can be used with a two-wire +/ -500 mV sensor field unit or a PT100 four-wire resistance temperature detector field device for accurate analog signal acquisition. In addition, it can also be used to control devices such as adjustable frequency drivers, positioning valves, dampers, etc., to achieve precise control functions.
It should be noted that the AS-BDAU-204 module requires an external power supply (250mA @ 24VDC). Therefore, when selecting and configuring the device, it is necessary to ensure the stability and matching of the power supply to ensure the normal operation of the AS-BDAU-204 module.
In general, the AS-BDAU-204 module has a wide range of applications and can be used with a variety of devices to achieve analog signal acquisition, processing and control functions in industrial automation and control systems. In actual applications, you need to select and configure based on specific application scenarios and requirements.
