Features:
Distributed I/O interface for Ethernet and RS232 networks
4 or 8 slot compact FieldPoint distributed Ethernet/serial network interface
FieldPoint software for fast distributed I/O access
Modbus Support
Including OPC server
Intelligent diagnosis and maintenance
The National Instruments cFP-180x connects directly to Ethernet and automatically negotiates 10 Mb/s or 100 Mb/s communication rates over the network. It includes an RJ-45 connector for connecting 10BaseT and 100BaseTX networks, using standard TCP/ IP-based protocols to maintain full compatibility with existing networks. FieldPoint builds on the standard TCP/IP networking protocol and adds a number of key enhancements, including event-driven communication and publish-subscriber networking. In a publish-subscriber architecture, one or more client PCS subscribe to I/O data from the Compact FieldPoint library.
The network interface monitors the connected I/O modules and publishes I/O data only when the value changes. Analog signals can change value within an optional range, called a dead zone, without causing the system to report data. This event-driven approach, along with data compression, helps you avoid unnecessary Ethernet traffic and maximize communication efficiency. The cFP-180X also includes a standard DB-9 connector for RS232 serial communication. With a direct connection, you can read and write data directly from programs running on your PC or embedded controller. I/O is accessed via a serial interface using a serial protocol called Optomux, just as data is accessed via a classic FieldPoint network interface such as the FP-1000.

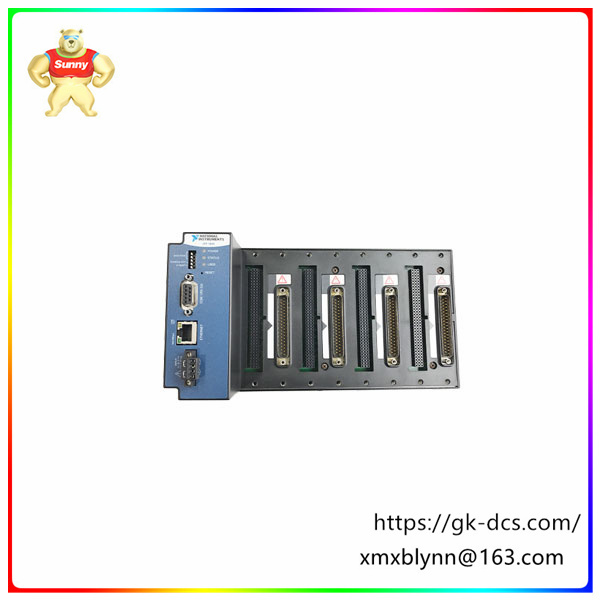

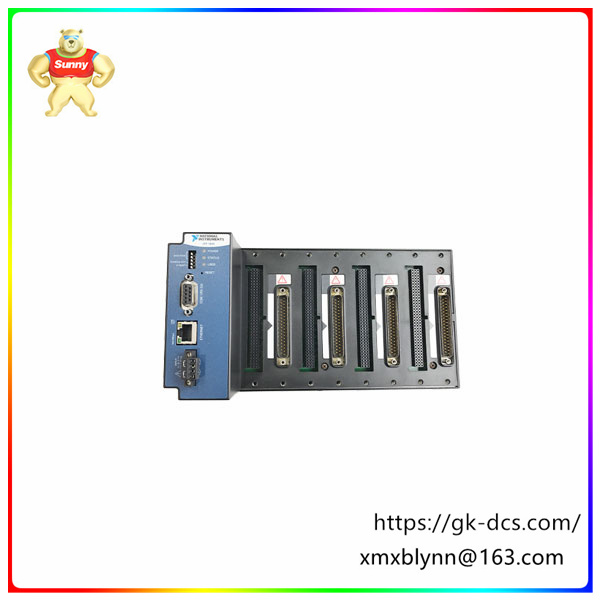

The cFP-1804 is an Ethernet/serial backplane commonly used in industrial automation systems. This backplane has multiple functions and application scenarios.
First, the cFP-1804 backplane connects Compact FieldPoint I/O modules to high-speed Ethernet or RS-232 serial ports, enabling fast, stable communication between devices. In addition, its communication rate can reach 10 Mbps, 100 Mbps, and it has the function of automatic negotiation rate, which ensures the efficiency and flexibility of data transmission.
Structurally, the cFP-1804 backplane is designed with four slots, each of which can be installed with corresponding I/O modules. To connect I/O modules to input signals or external loads, users need to install cFP-CB-x connector blocks or other connection accessories for each I/O model.
When using the cFP-1804 backplane, the user should write down the serial number on the back of the model and follow the installation instructions to install it correctly. In particular, if a user is using UL-certified I/O modules in conjunction with a Compact FieldPoint system, the entire system must be installed in an appropriately rated, UL-certified NEMA or IP housing. In addition, for optimal cooling efficiency, users should ensure that the Compact FieldPoint system's I/O module vents are located at the top and bottom.
Overall, the cFP-1804 is a powerful and stable Ethernet/serial backplane suitable for a wide range of industrial automation control systems.
