Features:
MPC7410 processor
High performance L2 cache
High performance, low latency SDRAM subsystem
DMA capability
Dual 10/100BaseT Ethernet
Two asynchronous serial ports
Two asynchronous/synchronous serial ports
Single PMC slot
Onboard debug monitor with self-diagnostic function
Four 32-bit timers, three watchdog timers

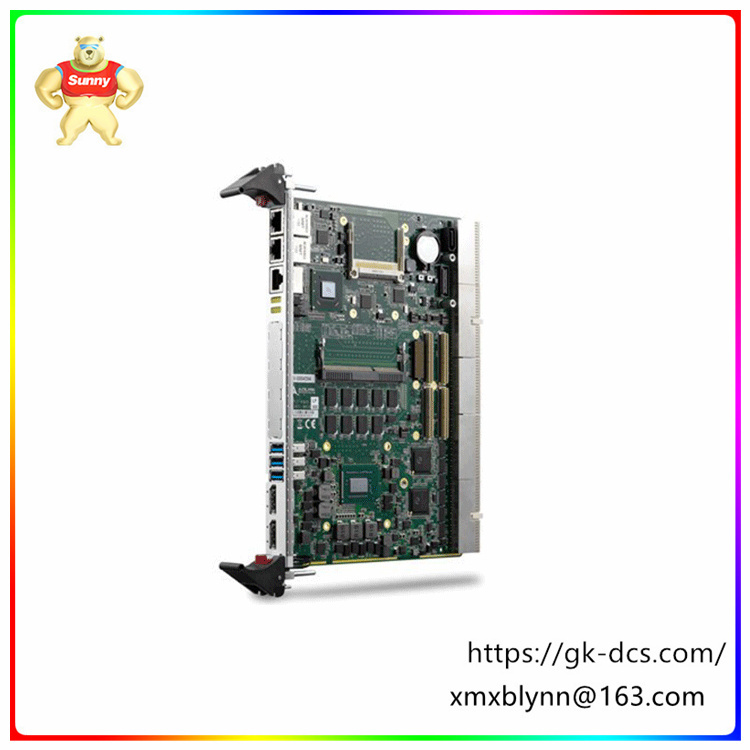

The Emerson/MOTOROLA CPCI-6020 series is a family of CompactPCI host slot processor modules and the first host slot module to benefit from the Emerson PowerPlus III architecture. The CPCI-6020 provides significant investment protection for deployed infrastructure by providing easy upgrades and migration to the most advanced features and performance. The CPCI-6020 series features a low-power, high-performance MPC7410 processor and 2MB auxiliary cache, a dual peripheral component Interconnect (PCI) bus for on-board peripherals, and a 64-bit bridge to the CompactPCI® interface. Best performance and functionality in a single CompactPCI slot.
It provides a variety of interfaces, including Ethernet, USB, serial port, parallel port, etc., to communicate with other devices. The board conforms to PICMG 2.0 standard, has good anti-seismic, anti-interference, anti-high temperature and other characteristics, so it is suitable for industrial control field.
The MOTOROLA CPCI-6020TM board is powered by a PowerPC G4 processor with a clock speed of 1.33 GHz and 256 KB of secondary cache. The memory is 512 MB DDR SDRAM and the storage is 1 GB Flash memory.
In addition, the board requires an access control system to set up and monitor. In a control system that does not rely on fieldbus, there is a clear boundary between the device and the control, each person's task is separated, and only analog values (measurement data) are transmitted between the device and the controller, and this communication is one-way. Using a digital fieldbus, such as MOTOROLA CPCI-6020TM, simplifies asset management, engineering and documentation, installation, and commissioning.
