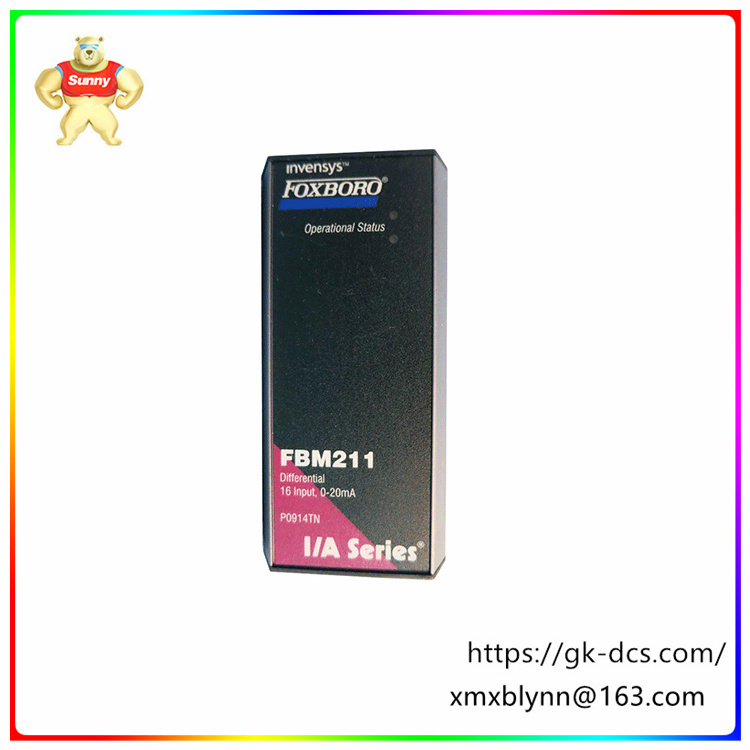

The FBM211 is an input interface module of FOXBORO, USA. The module has 16 isolated, independent channels, each of which can input two-wire analog signals ranging from 0 to 20.4mA dc, and the current limit for each channel is 33mA. In addition, these channels can also be used as a 20mA self-powered power supply. Each channel is isolated from other channels and ground, which helps ensure signal accuracy and stability.
The FBM211 module can convert the signal of the field instrument into a redundant fieldbus signal, thus facilitating data transmission and processing. It features a compact design and robust pressed aluminum housing that protects the electronic circuitry from physical damage. The special design of the enclosure also enables the module to adapt to a variety of environmental requirements, with the highest environmental grade reaching ISA standard S71.04.
In terms of communication, the FBM211 communicates with its associated FCM or FCP via a redundant 2 Mbps module fieldbus. This communication method not only improves the reliability of data transmission, but also enhances the overall performance of the system. In addition, the input voltage range of the module is ±5% to 10% of 24 volts DC, with a maximum power consumption of 7 watts or 11 watts at 24 volts DC (depending on operating conditions).
In terms of size, the size of the FBM211 module (including mounting lugs) is approximately 10.2 cm high, 11.4 cm wide and 4.5 cm deep, making the overall size moderate and easy to install and integrate into various systems. With a transport weight of 2 kg, it also shows refinement and robustness in its design and manufacture.
As for the control mode, in addition to the conventional PID control, the FBM211 may also support advanced control modes such as fuzzy control, adaptive control and predictive control to achieve more accurate and flexible control of the system.
Overall, the FBM211 is a powerful and well-designed input interface module for a wide range of industrial automation and control systems.
