Brand/Manufacturer :HIMA
Size: 2.5cm x 12.7cm x 20.3cm
Weight :0.1 kg
Country of origin: : Germany

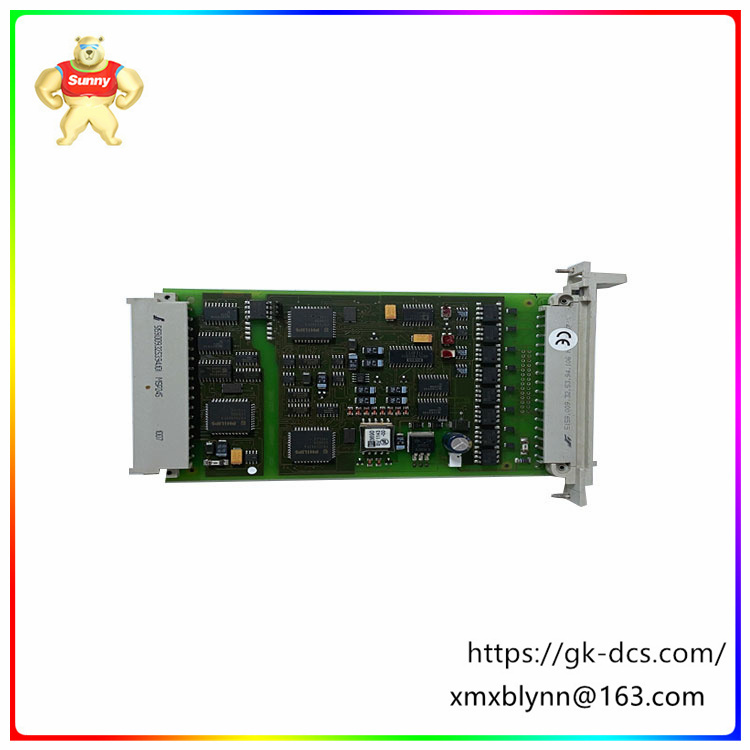

Description :HIMA F6214 analog input module
Planning considerations:
All unused channels must be terminated.
Appertaining softw. Building block: HA-RTE-. (For the current version, see
Operating system description).
Input voltage: 0... 1.06V (about 6% overflow)
Numeric value: 0 mV = 0
1 V = 3840 after the test
: 100 ms
R* : Shunt: 50 ohms; 0.05 %; 0.125 watts;
Current input: T<10 ppm/K; Part number: 00 0710500
Input resistance: 1 MOhm
Time constant IP. Filter: appr.10 ms
Transmitter power supply:
25 V ... 20 V,
0... 22 mA
Short circuit current: 25 mA
Load impedance: maximum 900 ohms
Scanning time: 4 channels
Maximum 100 ms Basic error: 25 °C
Operating error: 0.3% at 0... +60 °C
Electrical strength: 250 V butt to ground
Space requirement: 4 TE
Working data:
5 V DC: 150 mA
24 V DC: 250 mA
