Brand: HIMA
Product type: Assembly kit
Payment: T/T, Western Union
Loading port: Jinhua China
Delivery time: 1-3 working days
Condition: New and 100% original
Warranty: 12 months
Components of Assembly Kit B 5233-1/-2:
• 1 x K 1412A central rack, 5 units high, 19 inches, with integration
Cable tray with hinged socket for label.
• Back
The add-on module 3 x Z 6011 decouples and fuses for the power supply
Module power supply
1 x Z 6012 Fan module with fan operation monitoring and fuse
Supervisory control
2 x Z 6013
WD signal
Decoupling and fusing of supply voltage includes the following modules:
• 3 x F 7126 Power modules 24 V / 5 V, each 10 A (PS1-PS3).
The 5 V output of the power supply is switched in parallel.

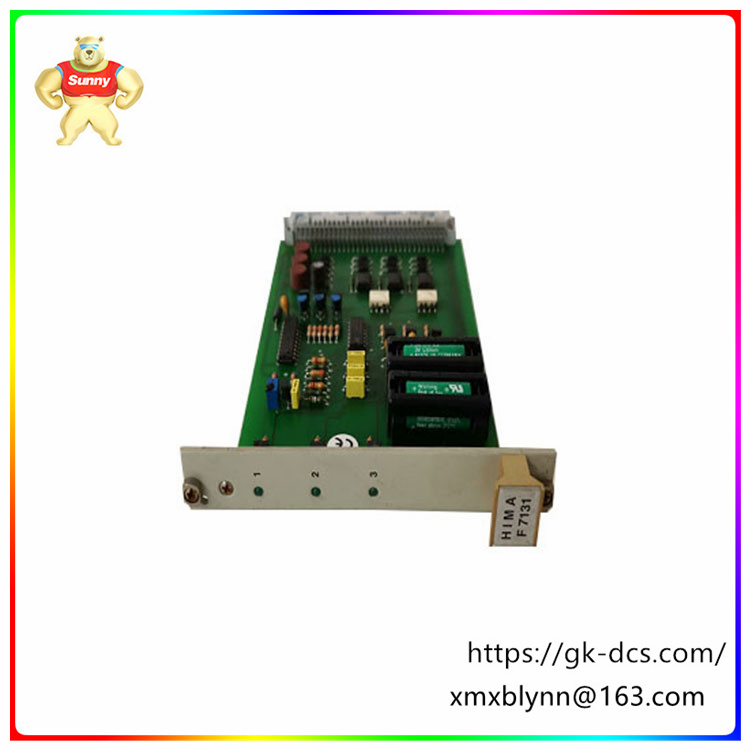

• 1 x F 7131 power monitoring
• 2 x F 8650 Central Module (CU1, CU2)
• 2 x F 7546 bus terminal module (B 5233-1)
• 4 x F 7546 bus terminal module (B 5233-2)
• 1 x BV 7032 Data connection cable (B 5233-1 only)
Modules optional (available separately)
• 6 x F 8621A coprocessor module (CM11-CM13, CM21-CM23)
• 10 x F8625 Ethernet communication module
• 10 x F8626 Profibus-DP communication module
Assembly kits for I/O levels:
• B 9302 I/O rack 4 units high, 19 inches
• B 9361 Additional power supply, 5 V DC, 5 units high, 19 inches
The maximum current must be 18 A if 3 F 7126 are used to hold the system
Run even if a power module F7126 fails. Total controller required
The current is the central rack
The sum of the module and I/O module consumption. Relate to
Current requirements (+5 V DC), please refer to the data sheet.
| HIMA F6705 | Analog Output Module | F 6705 |
| HIMA F6214 | ANALOG INPUT MODULE | 984621402 |
| HIMA F8628X communication module 984862865 |
| HIMA F3231 Security system digital input module |
| HIMA | F3237 | 984323702 | Input Module | F-3237 |
