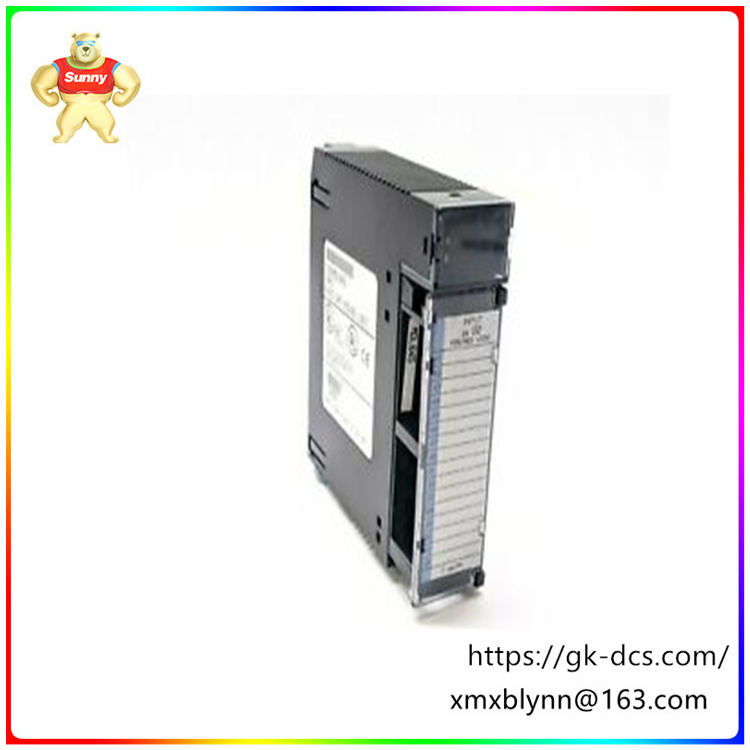

The GE Fanuc module whose part number is IC693MDL645D is a 90-30 series positive/negative logic input module. The module is used to connect input devices such as buttons, limit switches, proximity switches, auxiliary contacts and other similar devices.
The IC693MDL645D is equipped with a single input group with one (1) common terminal. It can accept external voltage signals in the range of 0-30 VDC, with a nominal voltage of 24VDC, while the input current requirement at rated voltage is 7 mA, and the field side and logical side isolation voltage rating is 1500 V.
The IC693MDL645D has a rated on-state voltage of 11.5-30 VDC and an off state voltage of 0-5VDC. Similarly, the on-state current is 3.2 mA (minimum) and the off state current is 1.1 mA. For ON and OFF states, the module has an ON response time of 7 ms. The module is installed in the available slots on the 5-slot or 10-slot baseplate of the 90-30 PLC system. It draws current from the backplane, which has a 5 V bus with 80 mA (all inputs on), an isolated 24 V backplane bus or a user-supplied power supply with 125 mA. Internally, the received voltage signal of the module is stored in the %I status table.
The IC693MDL645D is equipped with a status LED indicator to describe the power status of each channel. These indicators can also be used as a troubleshooting reference to confirm that the signal voltage from the external connected device has reached the specific input point of the module. The module uses a 20-slot detachable terminal and provides circuit information printed on the hinge backplane of the module.
The GE Fanuc IC693MDL645D module has an input voltage range of 0 to 30 V DC, while the input current is rated at 7 mA. Response times are rated for 7 ms on and 7 ms off, with a trigger voltage of 11.5 to 30 volts. The connector type is the terminal type, which uses up to 20 screws, all of which are included in the module. The internal power supply is rated for 80 mA (5 volts DC) and 125 mA (24 volts DC isolation voltage).
