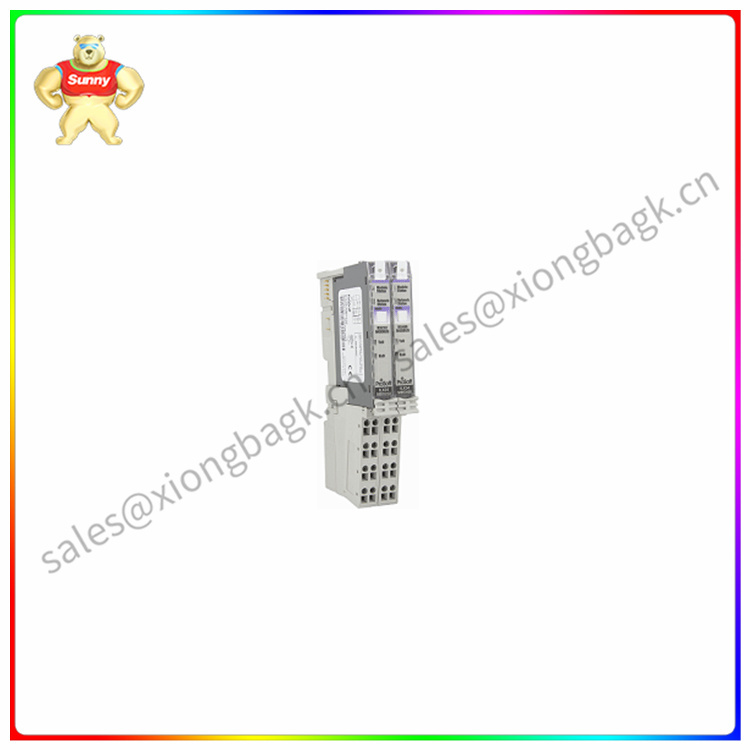

The ILX34-MBS485 is a programmable controller manufactured by Prosoft. It is a third-party product and can be connected to the Controllogix system to achieve serial communication over Modbus RTU protocol. The ILX34-MBS485 module allows three different sizes of data blocks and accesses the 1756 EtherNet/IP network via the 1734-AENTR module.
When using the ILX34-MBS485 module, it is usually necessary to perform hardware configuration, including creating a new project in the Studio 5000 software and adding the ILX34-MBS485 module, and then performing parameter Settings. In addition, it is necessary to import the AOI (Add-On Instruction) routines provided by the manufacturer in order to use the Modbus RTU communication function in the program.
ILX34-MBS485 module has a variety of functions, including obtaining the error code of each command through the program and the communication status of the corresponding slave station device. It also provides GSV instructions to get hardware error codes and status information for the module. This information helps you diagnose and remove faults.
In addition, the ILX34-MBS485 module also supports secondary judgment processing, when FaultCode is not equal to 0, the error code can be saved in a fault record array, or saved in the database for fault recording and analysis.
Overall, the ILX34-MBS485 is a powerful programmable controller for industrial automation and control systems requiring serial communication over the Modbus RTU protocol. It has high stability and reliability, and provides rich functions and diagnostic information, which is convenient for users to monitor and maintain the system.
The ILX34-MBS485 module is a programmable controller manufactured by Prosoft for serial communication over the Modbus RTU protocol. This module has certain advantages and disadvantages in industrial automation and control systems. The following is an analysis of its advantages and disadvantages:
Advantages:
Flexibility: The ILX34-MBS485 module supports a variety of data block sizes and can be adapted to different communication needs. At the same time, it can be easily integrated into ControlLogix systems and is connected via EtherNet/IP networks, providing flexible configuration and scalability.
Powerful communication function: The module supports the Modbus RTU protocol and can communicate with a variety of devices, including sensors, actuators, PLCS, etc. This allows it to achieve data exchange and control between various devices in industrial automation systems.
Easy to configure and use: The ILX34-MBS485 module can be configured and parameterized by the Studio 5000 software, and the interface is friendly and easy to operate. At the same time, it also provides AOI (Add-On Instruction) routine, which is convenient for users to realize Modbus RTU communication function in the program.
Fault diagnosis function: The module has GSV instruction and error code feedback function, which can easily obtain the hardware error code and status information of the module. This helps users to diagnose and eliminate faults, and improves the reliability and stability of the system.
Cons:
Higher price: Since the ILX34-MBS485 module is a third-party product and has powerful communication and configuration capabilities, its price can be relatively high. This can increase the overall cost of the project.
Expertise required: To get the most out of the functionality and performance of the ILX34-MBS485 module, users may need to have some knowledge of programming and automation technologies. This may require additional learning and training costs.
Compatibility Limitations: While the ILX34-MBS485 module can be integrated into ControlLogix systems, it may have limited compatibility with other non-ControlLogix systems or devices. This may limit its use in some specific application scenarios.
Communication rate limitations: The Modbus RTU protocol usually adopts serial communication mode, and its communication rate may be relatively low. This can affect the speed and efficiency of data transmission, especially in application scenarios that require high-speed communication.
