ISH1003005800000000100
Discontinued manufacturer
66013301-005.

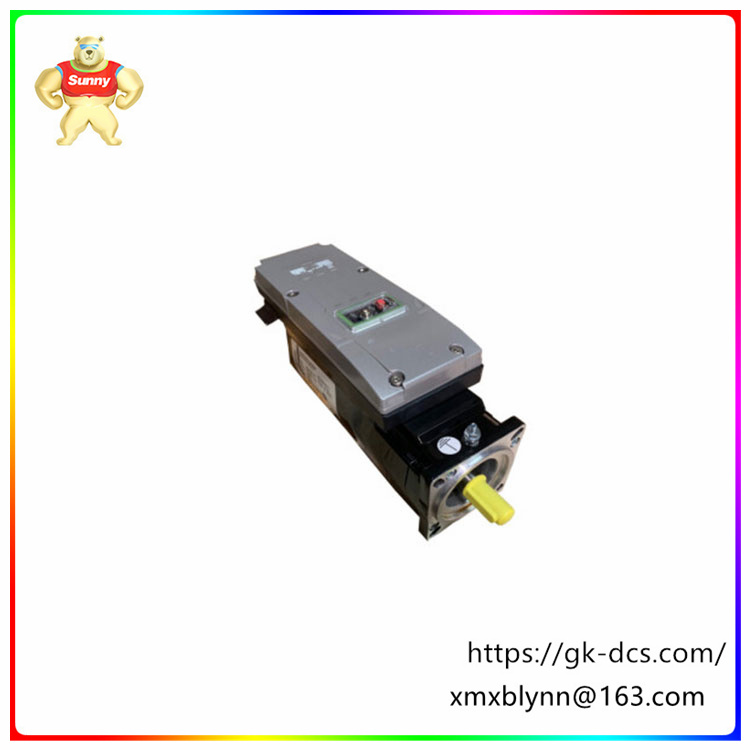

Servo motor
Input 1:3.6 amps /680 volts DC
Enter 2:0.95 amps /24 volts DC
3000 RPM
IP50 protection rating
The ISH100 is a continuously rotating servo motor manufactured by Schneider Electric, specifically its ELAU brand [1,2,3]. It is a flange-mounted AC synchronous motor with a permanent magnet rotor and brushless DC encoder. This design allows for high torque and precise positioning.
The ISH100 is available in a variety of models with different torque ratings, speeds and encoder resolutions. Here are some common specifications:
Voltage: 400 VAC, three phase
Power: 2.0 to 3.0 kW
Torque: 4.4 to 18.3 Nm (49.6 to 206.5 lb-ft)
Speed: up to 3000 RPM
Encoder: sine-cosine encoder with resolution up to 16,384 counts per revolution
The ISH100 is a versatile servo motor that can be used in a variety of industrial automation applications, including:
Material handling
Robot
Packaging machinery
Conveying system
Machine tool
Food and beverage processing
Textile machinery
