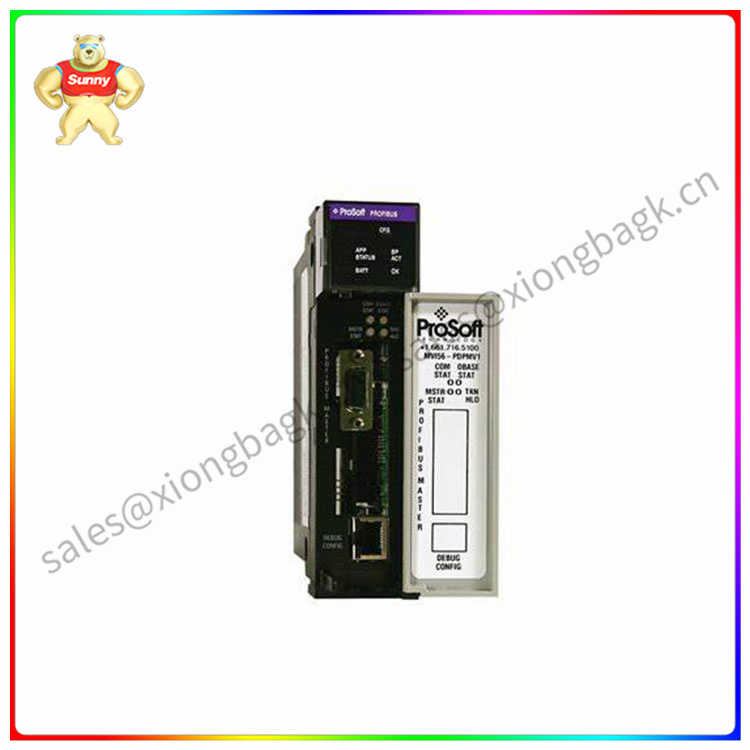

The MVI56-PDPMV1 is a communication module produced by Prosoft Technology for industrial automation and control systems. This module has a variety of functions and features to meet different communication needs.
First, the MVI56-PDPMV1 is a single slot module with an RS485 optically isolated Profibus interface that supports DP V1. This means that it can easily communicate with devices that use the Profibus protocol. In addition, the module can connect up to 125 slave devices and is compatible with Profibus Repeaters, providing greater flexibility and scalability.
In addition to its communication capabilities, the MVI56-PDPMV1 features LED status indicators and a debug/configuration port for easy troubleshooting and module configuration. In addition, it supports the full master device specification according to IEC61158, which means that it can communicate with other devices as a master station.
It is worth mentioning that MVI56-PDPMV1 also supports the transmission of acyclic parameter data, which can be carried out through Class 1 or Class 2 DP V1 services. This allows the processor to easily exchange data with other devices, improving the efficiency and reliability of the system.
In addition to the above features, the MVI56-PDPMV1 is commonly used with Rockwell Automation's ControlLogix platform. This makes it a powerful tool to help users achieve efficient and stable operation of industrial automation and control systems.
Overall, the MVI56-PDPMV1 is a powerful, easy-to-use communication module for a variety of industrial automation and control systems. Whether it's connecting devices, transferring data, or debugging and configuring, it provides a reliable and efficient solution.
The MVI56-PDPMV1 is a ControlLogix platform compatible module. This module is a Profibus DPV1 compatible module and acts as the main device in the Profibus network. The module was developed by Prosoft Technology, a Rockwell Automation partner company responsible for developing the Allen-Bradley PLC-compatible module.
The MVI56-PDPMV1 has one (1) optically isolated RS485 port and supports the PROFIBUS DP Version 1 protocol. Up to 125 PROFIBUS slave devices can be connected to this port, which is also compatible with PPROFIBUS Repeaters. The module is capable of configuring up to 1536 cycle bytes and 1536 bytes of output, and supports extended diagnostic data.
Additional features supported by MVI56-PDPMV1 include alarm handling, sync and freeze commands, support for PROFIDrive version 3.1 parameter read and write operations, multicast and broadcast messages.
