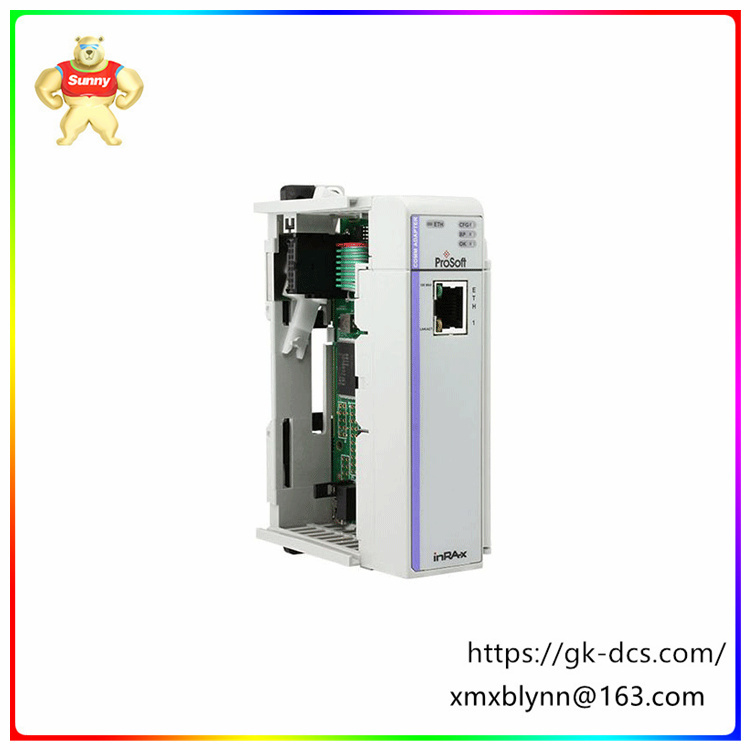

The MVI56E-MNETCR is an enhanced communication module jointly introduced by Allen-Bradley and Prosoft Technology. The module is part of the ControlLogix family and is part of the MVI56E product line. It has several key features and functions, as follows:
Data processing capability: MVI56E-MNETCR module can handle read data and write data. It is designed to allow paging of 40 registered read or write data blocks at a time, and is capable of handling a total of 600 read data registers and 600 write data registers.
Electrical specifications: The base plate of the module is rated at 800 MA at 5 volt DC and 3 mA at 24 volt DC. In addition, it operates in a temperature range of 32 to 140 degrees Fahrenheit, stores in a temperature range of -40 to 185 degrees Fahrenheit, and can withstand 5 to 95 percent relative humidity without condensation.
Installation and deployment: The MVI56E-MNETCR module can be installed in a remote chassis, providing it with a high degree of flexibility and convenience.
To sum up, the MVI56E-MNETCR module is a powerful, flexible and adaptable communication module for a variety of working environments. However, as with any product, it is equally important to understand its potential limitations or deficiencies.
Although the MVI56E-MNETCR module has many key features and functions, there may still be some technical limitations or deficiencies in practical applications. Here are some possible ways:
Compatibility issues: Although the MVI56E-MNETCR module is designed to be compatible with the ControlLogix family, compatibility issues may be encountered in integration with certain specific devices or systems. This may require additional configuration or tuning, and may even require the development of specific interfaces or drivers.
Performance bottlenecks: The MVI56E-MNETCR module may experience performance bottlenecks when dealing with large amounts of data or high frequency communications. This can lead to data transmission delays, packet loss, or other communication issues, especially in complex industrial automation systems.
Configuration and management complexity: Configuring and managing the MVI56E-MNETCR module may require some technical knowledge and experience. Users need to be familiar with the relevant configuration tools, communication protocols, and parameter Settings to ensure the normal operation and optimal performance of the module. This may increase the user's learning cost and maintenance difficulty.
Dependent on specific environments: The MVI56E-MNETCR module is designed for specific application environments and may not work with all types of networks or communication protocols. If the user's network environment or protocol requirements do not match the design of the module, then additional adaptation work may be required or other communication modules may be selected.
