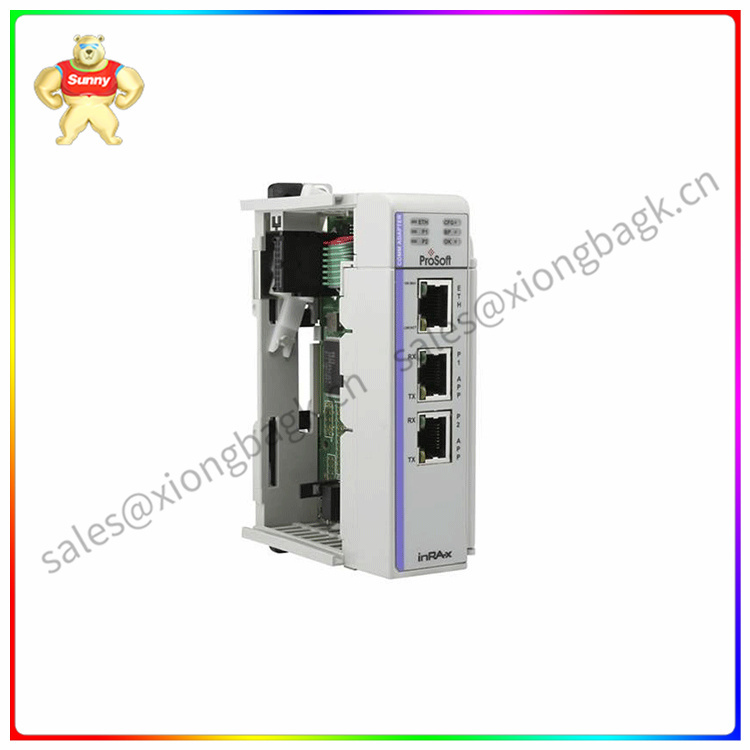

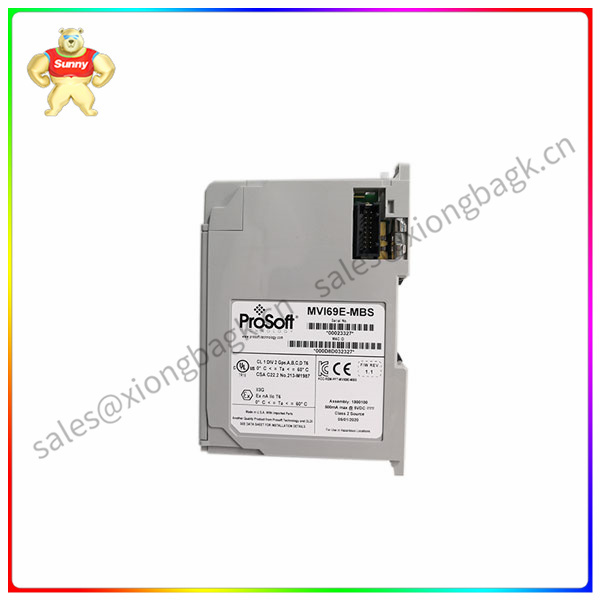

The MVI69E-MBS is a Modbus serial module for CompactLogix™ controllers. The following are its main features:
Compatibility: The MVI69E-MBS module integrates seamlessly with the CompactLogix controller, providing connectivity to various Modbus devices.
Communication capability: The module is equipped with additional profiles and additional instructions to reduce debugging time and to enable the master and/or slave station to connect to various devices using the Modbus protocol.
Reliability: The module adopts redundant configuration with dual, quadruple, six-fold and eight-fold configuration options to improve the reliability and stability of the system.
Scalability: Unlimited changes and expansions can be made to the software and hardware during the operation of the system to meet changing needs.
Power management: Fully integrated and fully protected power distribution design to ensure stable operation of the system.
Size and connectivity: Available in three different mounting sizes and two different wiring methods, support panel mounting and rack mounting for easy integration into a variety of industrial environments.
Data Integration: With the ControlST software suite, data from external systems is integrated into critical factory data to improve system performance and reduce costs.
Real-time response: Engineers can more effectively analyze process trends and adjust control software, operators can respond more quickly to alerts and operational outages, and maintenance teams can pinpoint problem areas and respond proactively.
In summary, the MVI69E-MBS is a full-featured and reliable Modbus serial module suitable for industrial automation environments requiring efficient and stable data communication.
The MVI69E-MBS is a Modbus serial module for CompactLogix™ controllers with the following functions and features:
Communication capability: The MVI69E-MBS module supports all applications with serial Modbus connectivity requirements, with additional profiles and additional instructions to reduce debugging time. In addition, it has two serial ports that enable master and/or slave station connections to various devices using the Modbus protocol.
Data Storage and Processing: The MVI69E-MBS provides a data storage area of up to 10,000 words, and each Modbus port can be configured as a Modbus master or slave device. It also supports the 1769 I/O bus CompactLogix processor.
User-defined tags (UDTs) : Provide logical definitions for users, for I/O, module status, and control data.
Integration: MVI69E-MBS, as a cooperative processor, does not need to occupy CPU resources, which can reduce the impact on PLC scan time.
Data Transfer Rate and distance: The MVI69E-MBS presents data in meaningful context and supports fast data transfer. For example, its 155M dual optical interface can support the advantages of fiber transmission Profibus DP bus, including peer-to-peer transmission, data, bus arbitration, etc., while achieving high rate long-distance transmission, electrical and ground line isolation, reducing interference and other performance.
In summary, the MVI69E-MBS is a full-featured and reliable Modbus serial module suitable for industrial automation environments requiring efficient and stable data communication.
