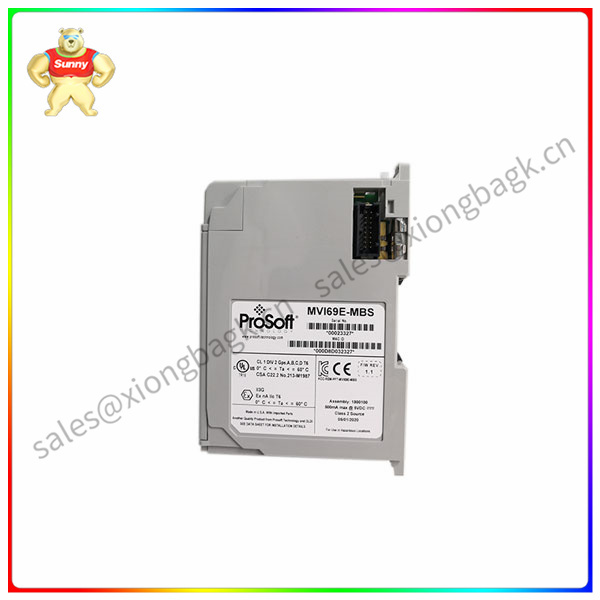

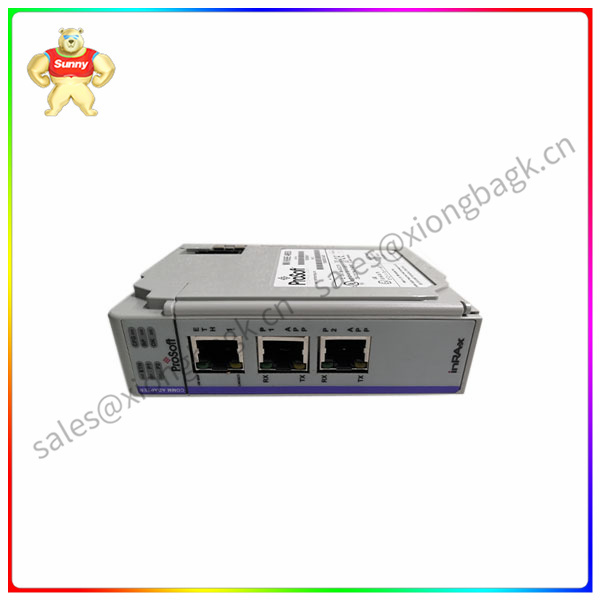

MVI69E-MBS is a serial enhanced communication module produced by ProSoft Technology.
It has a variety of features and advantages, such as high density design, each module supports density from 4 to 32 points; Modular design, IP20 protection grade, suitable for 2 zones; Field diagnostic functions such as electronic fusing and isolated input/output; Equipped with remote terminal block (RTB) or wiring system.
In addition, the MVI69E-MBS also uses the ControlLogix Power Supply 1756 chassis to provide 1.2V, 3.3V, 5V, and 24V DC power supplies directly to the chassis backplane, and one DC power supply is selected in each chassis.
In summary, the MVI69E-MBS is a powerful communication module suitable for various industrial automation application scenarios.
The functions of the MVI69E-MBS include:
Implement the connection between CompactLogix or MicroLogix processors and Modbus protocol devices, acting as input and output communication modules between these two devices, and can store a database full of information.
When installed in a slot, it is identified as an input and output module, enabling data in the processor's memory to be accessed.
It can operate in a specific temperature range of 0 to 60 degrees Celsius and a relative humidity range of 5 to 95% without condensation.
LED indicators with 4 options, such as "Module Normal" status, backplane activity, Ethernet port activity, and configuration activity.
Regarding the advantages of the MVI69E-MBS, it has a high-density design, each module supports densities from 4 to 32 points, is suitable for 2-zone environments, and has field-side diagnostic functions such as electronic fusing and separately isolated input/output. In addition, it is equipped with remote terminal Block (RTB) or wiring system.
As for the disadvantages of MVI69E-MBS, no information can be provided at this time on the obvious disadvantages or deficiencies of this module.
