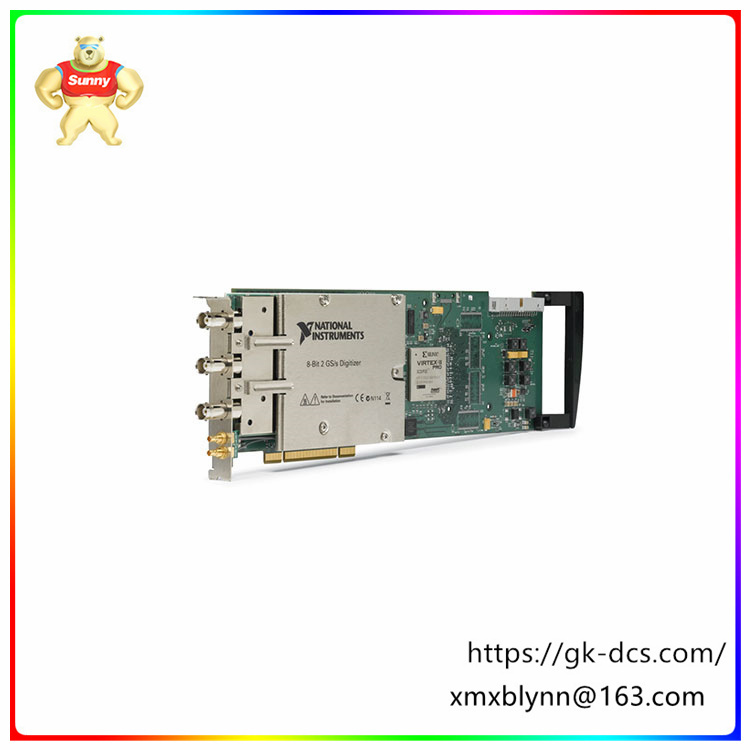

300 MHz bandwidth, 2 GS/s, 8-bit PCI oscilloscope devices - PCI 5152 High-speed oscilloscope devices feature two channels with sampling rates up to 2•GS/s, providing flexible coupling, impedance, voltage range, and filtering Settings. The oscilloscope also has multiple trigger modes, high capacity onboard memory, and an instrument driver that includes data streams and analysis functions. The device is ideal for high-speed signal applications requiring up to 300 MHz analog bandwidth and flexible measurement configurations.
outline
PCI-5152 is a high-density PXI oscilloscope module produced by National Instruments (NI) that can simultaneously sample 8 channels.
Main function
Eight channels were sampled simultaneously
Maximum sampling rate of 125ms /s
14-bit resolution
500mhz real-time bandwidth
Rich trigger function
Large capacity onboard memory
IVI compatible drivers
The PCI-5152 is a powerful oscilloscope device used in a wide range of automated test and data reading and writing applications in the consumer electronics, semiconductor, space/defense and life sciences industries. The following are the main features and functions of PCI-5152:
Sampling rate and channel configuration: The PCI-5152 provides real-time sampling rates of up to 2 GS/s per channel. When the two channels are collected simultaneously, the sampling rate is reduced to 1 GS/s. In addition, the device has an equivalent Time sampling (ETS) mode that enables sampling rates up to 20 GS/s for accurate measurement of repeated signals.
Custom features: Engineers can customize the PCI-5152 through software to meet specific application requirements. This flexibility enables PCI-5152 to be used in a variety of applications, such as semiconductor chip characterization, ultrasonic nondestructive testing (NDT), optical coherence tomography (OCT), and mass spectrometry.
System Integration and synchronization: The PCI-5152 is capable of multi-module mesopicosecond synchronization with other NI devices, making it ideal for building high channel count systems. In addition, it can run on numerous NI software platforms, such as LabVIEW and TestStand, providing users with rich data processing and analysis capabilities.
Overall, the PCI-5152 is a high-performance, highly flexible oscilloscope device for a variety of applications requiring accurate, high-speed signal acquisition and processing.
