Main features:
Analog input:
Channels: 16 (single-ended) or 8 (differential)
Maximum sampling rate: 200 kS/s
Resolution: 12 or 16 bits
Input signal range: Choose from four ranges
Analog output:
Number of channels: 2
Resolution: 12 bits
Maximum update rate: 10 kS/s
Digital I/O:
Number of lines: 8 (TTL/CMOS compatible)
Counter:
Two 24-bit counters

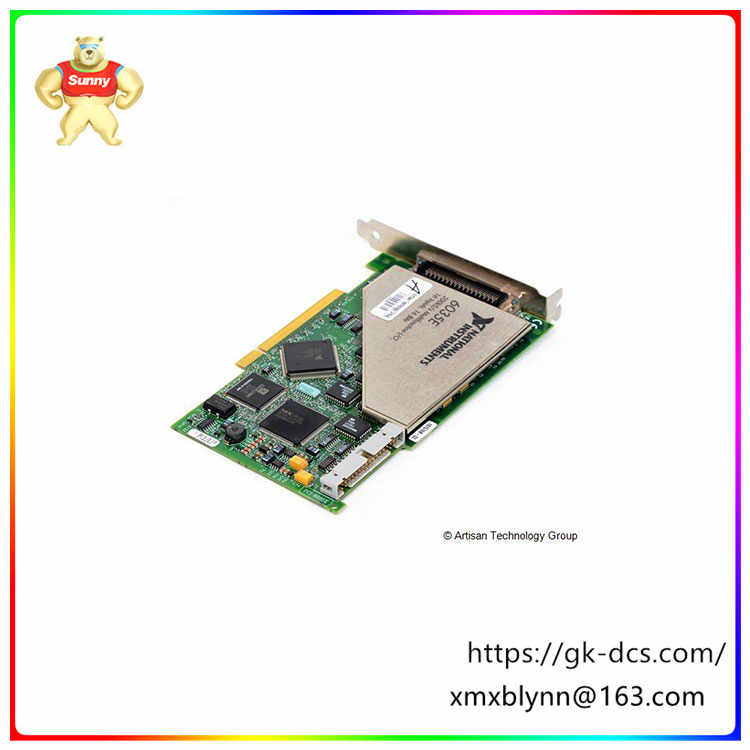

The NI PCI-6035E (Part number: 778026-01) province's least powerful DAQ board was developed using the E series to deliver proven, real-world estimates in a variety of jobs. Users can achieve sampling rates of up to 200 kS/s and 16-bit resolution through 16 single-ended or 8 differential channels. In addition, the PCI-6035E integrates two 12-bit direct outputs. Depending on the user's hard drive, the PCI-6035E can be streamed to the board at rates of up to 200 kS/s. It features 8 digital I/O lines and is compatible with TTL/CMOS. The ground reference banner source is associated with the building structural ground in one way or another, and in this way has a tangible connection to the common belief point of the NI PCI-6035E device, expecting the PC to be associated with the comparison power system. The non-separated outputs of instruments and devices that interface with the building power structure fall into this category. The device is equipped with a 68-pin male SCSI-II I/O connector.
The PCI-6035E has an input multiplexer on the device. PGIA changes more than two data signals into a banner, which is the limit between the two data signals, extended by the gain setting of the device. This model comes with an A/D converter or ADC that estimates the output voltage while playing A/D changes. For large source impedances, this membership usually causes differential signal routing to change. The output voltage of this model is located at the ground of the gadget. For large source impedances, this membership usually causes differential signal routing to change. In this model, the disturbance is related to the ground, so it will be electrostatically coupled to the positive electrode, but not to the negative line.
The NI device weighs 5.8 ounces and measures 6.9 x 4.2 inches. In the physical dimension. It has a recommended operating temperature range of 0 to 55 °C, a storage temperature of -20 to 70 °C, and a non-condensing relative humidity range of 10% to 90%.
