16-way AI (200 kS/s), 2-way AO (16-bit), 8-way DIO, PCI Multi-function I/O device - The PCI-6040 offers analog I/O, digital I/O, and two 24-bit counters/timers. The device provides affordable and reliable data acquisition for a variety of applications ranging from laboratory automation, research, design validation/testing to manufacturing testing. SCC or SCXI signal conditioning modules can be used to add sensors and high voltage measurement capabilities to the device. The included NI-DAQmx driver and configuration utility simplify configuration and measurement.

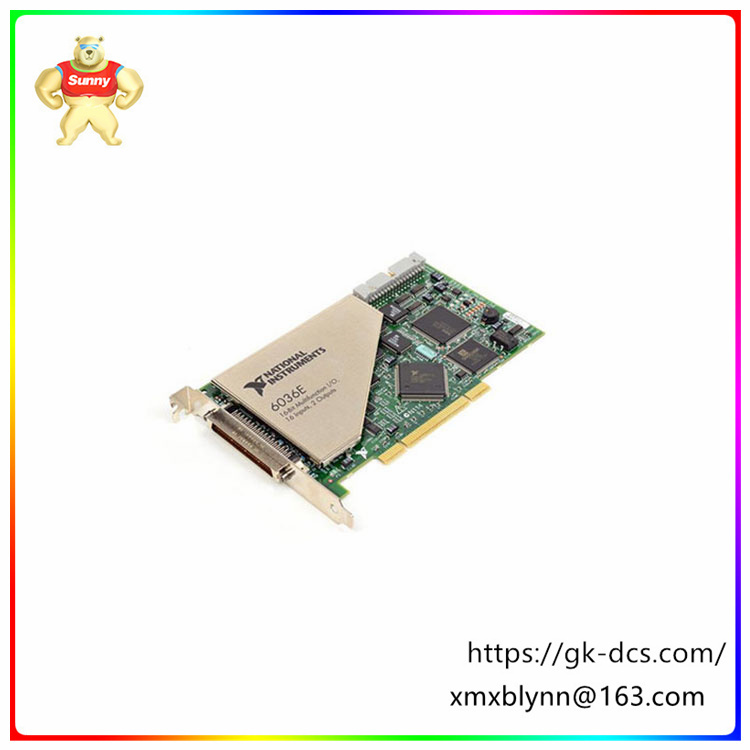

The NI PCI-6036E (Part number: 778465-01) is a low-cost, versatile DAQ device that uses innovative E-series technology to provide reliable 16-bit protection for a variety of applications. The PCI 6036E has 16 single-ended or 8 differential input channels (16-bit resolution) and two 16-bit output channels. The device also features eight computerized I/O lines and two 24-bit, 20 MHz counters/clocks. The NI PCI-6036E can stream at a sampling rate of 200 kS/ s or an output rate of 10 kS/ s. With the alternative of NI devices and drivers, users can obtain adaptive operating systems, application advancement conditions, and application planning decisions. Users can use NI signal molding to complete their DAQ framework to quantify any type of sensor and voltage.
Using the software, users can arrange channels for two unique single-ended associations: RSE setup and NRSE design. RSE Settings are used for floating signal sources. In this case, the DAQ PCI 6036E provides a reference ground point for the external signal. The NRSE input is configured for a ground-referenced signal source. For this case, the external signal provides its own reference ground point, while the PCI 6036E National Instruments do not need to provide a reference ground point. The device is run using NI-DAQmx driver software.
