Port number 2
CAN Standard High speed /FD CAN
Maximum communication speed 1mbps
Memory 256 megabytes
Trigger function edge, level, pulse width, window, etc
Interface PCI interface
Driver IVI guidelines

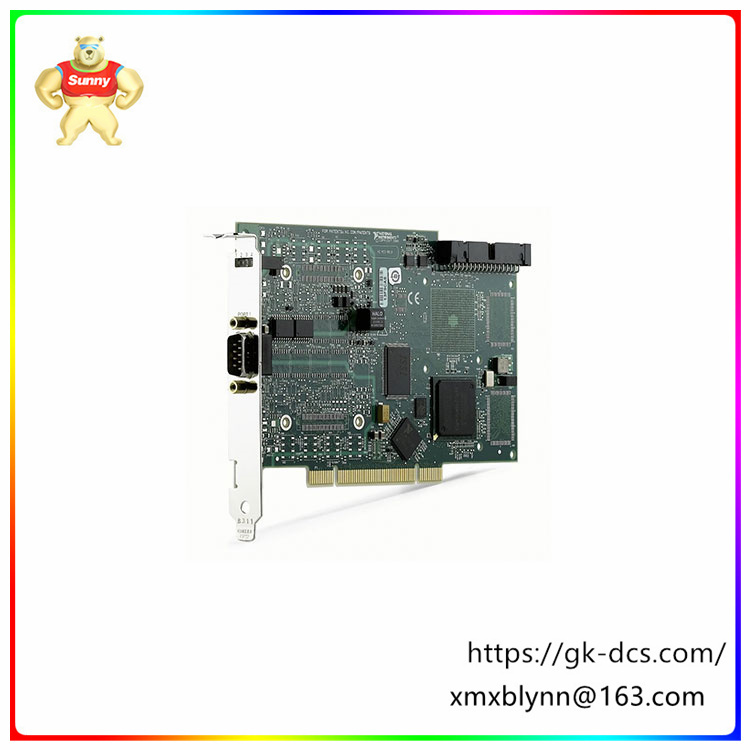

The PCI-8512/2 (Part number: 780683-02) comes with an NI-XNET database editor, a stand-alone instrument for making and saving inserted compilation files, with parameters related to frames, signals, and systems. The NI-XNET project utilizes the basic functionality of ASAM FIBEX (FIeld Bus Exchange) as a basic database storage design. In spite of FIBEX, the NI-XNET database editor can organize by arranging (.nCD) and CANdb (.DBC) and change it to FIBEX. It is important to understand that all Ni-XNET families work perfectly with most of the traditional Ni-CAN channel apis and NI-CAN frame API applications that were built to inherit the USB CAN and NI Series 2 CAN interfaces. The instrument comes with a similarity layer that can work at the driver level, guaranteeing direct execution of the lift to establish internal functionality. NI-XNET driver programming is available locally with FIBEX, CANdb (.DBC), LDF, and NI-CAN (.nCD) signal database documentation. The database combined with the driver makes it possible to monotonically assign the casing to the real building unit unloaded from the main program. This improves programming and maintains stable results when the system setup goes beyond the framework outline. Subsequent, less complex code is easier to understand, requires less follow-through, and is more adaptable between the ages of the framework.
