Features
◆Data prioritization: Multiple /0 connections allow you to set RPIs for status and/or control data, optimizing Ethernet bandwidth.
◆Includes an embedded EDS Add-On Profile, allowing for simplifed integration and reduced commissioning time.
Includes a SD card slot (SD card optional) for storing configuration files. This can be used for disaster recovery.
Four seral ports allow for connectivity of up to 400 Modbuse devices, reducing the amount of gateways required for your
application.
◆ProSoft Discovery Service: This utility alows your PC to see the gateway and change its default IP address without being on the
same subnet.
Secure module configuration via module switch (v1.04 and greater).
Up to 10,000 16-bit registers can be used to exchange large amounts of data.
Ethernet /IP Back to Modbus Serial gateway provides bidirectional data transfer between the Modbus serial port and the Ethernet /IP network. Our Ethernet /IP drivers use Class I/O connections and/or Class 3 message instructions. Protocol translation gateways, the ideal solution for adding remote racks in a distributed network, became too expensive.

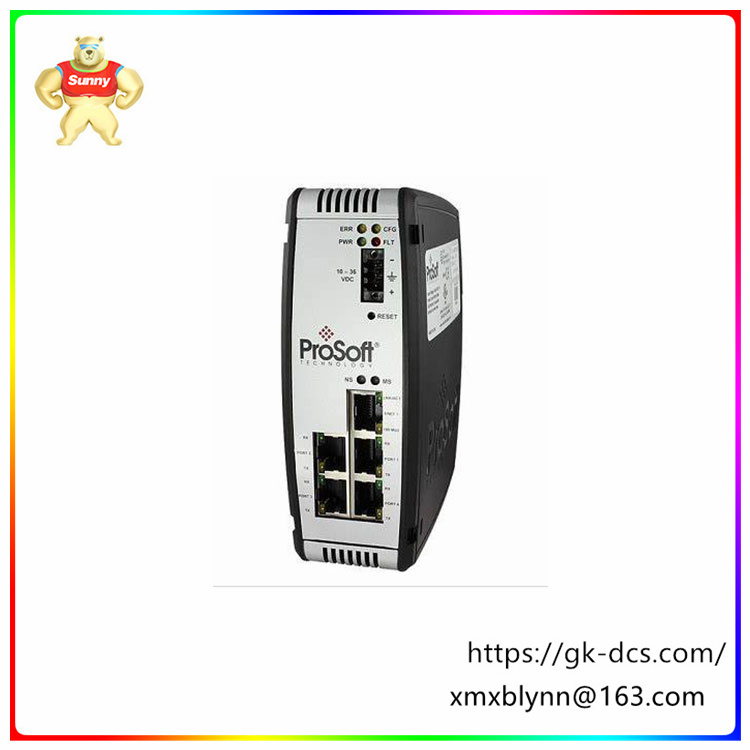

The PLX31-EIP-MBS4 gateway is a stand-alone din rail mounted gateway providing one Ethernet port for communication, allowing remote configuration and diagnostics, and up to four (4) serial communication ports. PL X30 Gateway
There is also an SD card slot (SD card optional) for storing configuration files. In the event of a failure, the SD card can be transferred to another gateway to reduce downtime. These gateways also feature a wide input power range (10 VDCS - 36 Vdc) and an extended temperature range (-25°C to 70°C). The PLX30 gateway includes all necessary cables for communication.
