Basic information
Brand Name: EPRO
Size: CM/MM
Color: Black/White/gray
Version :C/D/E/F
Voltage: VDC
Model: PR 6423/003-030
Minimum order quantity: 1 piece/piece
Warranty: 2 years
Weight: pounds
Currency: EUR/RMB/USD
Current: A/mA/uA
Country of Origin: Germany
Origin: Fujian
Mode of transportation: Sea, air, land

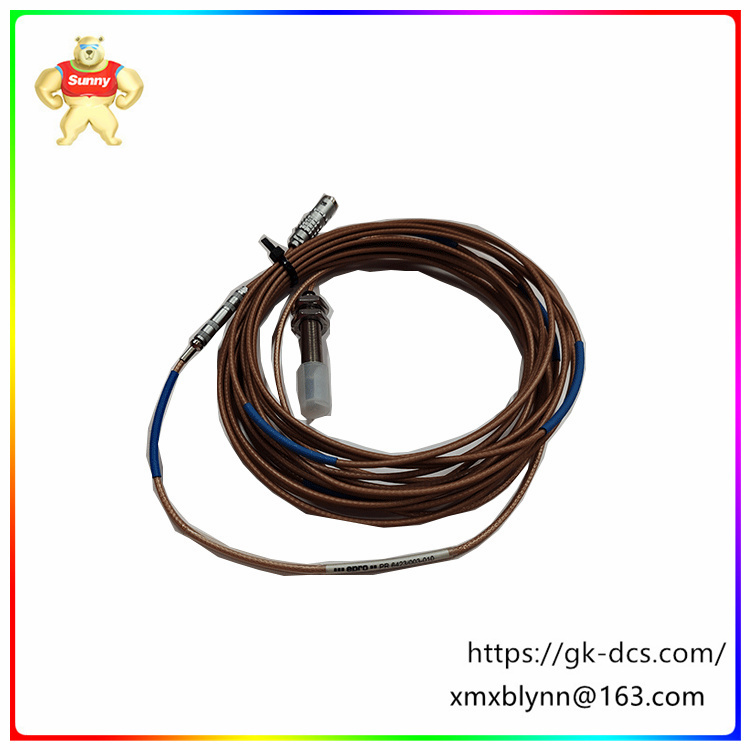

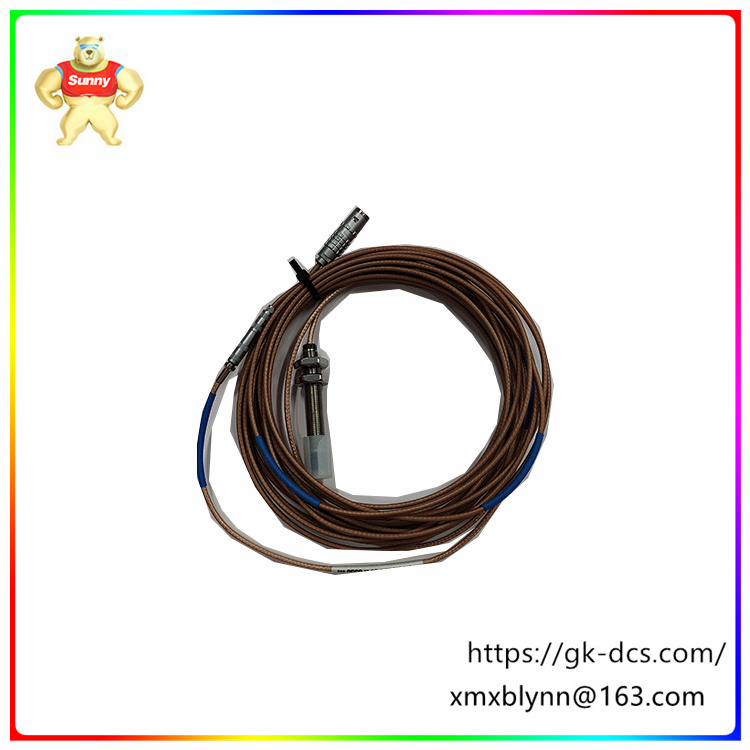

The PR6423/003-010-CN is an 8mm eddy current sensor with an Emerson Epro signal converter. It is designed for use in critical applications of turbo-machinery such as steam, gas and hydraulic turbines, compressors, transmissions, pumps and fans to measure dynamic motion in both radial and axial axes; Position, eccentricity and velocity.
Features:
Size :16cm16cm12cm
Weight :0.8 kg
Tip diameter :8mm
Chassis thread :M10x1
Armored cable: No
Model :PR6423/003-010-CN
Output signal :4-20 mA or 0-10 V cc
Accuracy :±0.25%
Repeatability :±0.1%
Operating temperature range :-40℃~ +125℃
Storage temperature range :-55℃~ +150℃
Humidity :95% HR, non-condensing
Vibration: peak-to-peak 20 g, 10-2000 Hz
Shock: Peak 50g, 11ms, half sine wave
Features:
High accuracy and repeatability
Wide operating temperature range
A solid and reliable building
Easy to install and use
Applications:
Steam, gas and hydraulic turbines
compressor
Gear case
pump
fan
