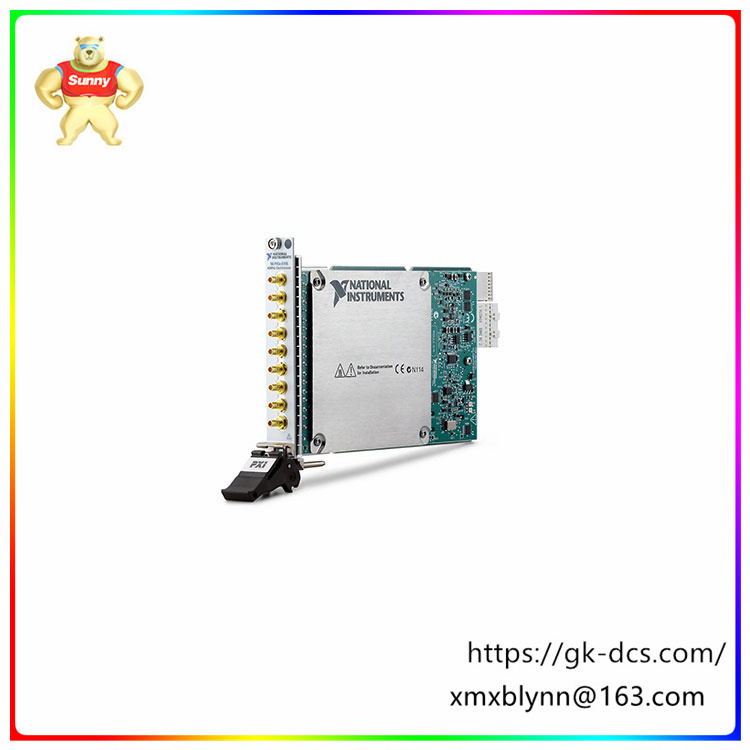

The PXle-5105 high-density Px oscilloscope features eight synchronous sampling channels, providing flexible coupling, impedance, voltage range, and filtering Settings. The Px oscilloscope also features multiple trigger modes, high capacity onboard memory, and an instrument driver that includes data streaming and analysis functions. The device is ideal for multi-channel applications that require up to 60 MS /s or 60 MHz analog bandwidth. The PXle-5105 also has advanced Px synchronization and data streaming capabilities.
The PXIe-5105 is an oscilloscope designed for a variety of data acquisition and signal processing applications. Here are its key features:
Multi-channel synchronous sampling: Provides 8 synchronous sampling channels to collect multiple signals at the same time, ensuring timing consistency between data, which is especially important for measurements requiring accurate time correlation.
High vertical resolution: The 12-bit vertical resolution enables the device to fine-quantify the input signal, capturing even smaller signal changes.
High real-time sampling rate: The real-time sampling rate reaches 60 MS/s (millions of samples per second), which makes it possible to accurately capture rapidly changing signals, such as high-frequency signals or short-time events.
Wide bandwidth: With 60 MHz analog bandwidth, it ensures that a wide range of frequency components can be processed, which is very advantageous for the acquisition of broadband signals.
Mass storage: Up to 512 MB of on-board memory enables data collection over long periods of time without real-time processing or transmission of data.
Modularity and scalability: Can be used in combination with other PXIe-5105 digitizers to achieve high channel count applications, providing great flexibility for large test systems or multi-point monitoring projects.
In summary, the PXIe-5105 oscilloscope is used in laboratory research, industrial automation, and anywhere that requires a high-performance data acquisition solution
