The PX1-6255 offers analog I/ O, associated digital /O, two 32-bit counters/timers, and analog and digital triggers. The device provides low-cost, reliable DAQ capabilities for a variety of applications ranging from laboratory automation, research, design validation/testing to manufacturing testing. sCc or scx signal conditioning modules can be used to add sensors and high voltage measurement capabilities to the device. The included N-DAQmx driver and configuration utility simplify configuration and measurement.

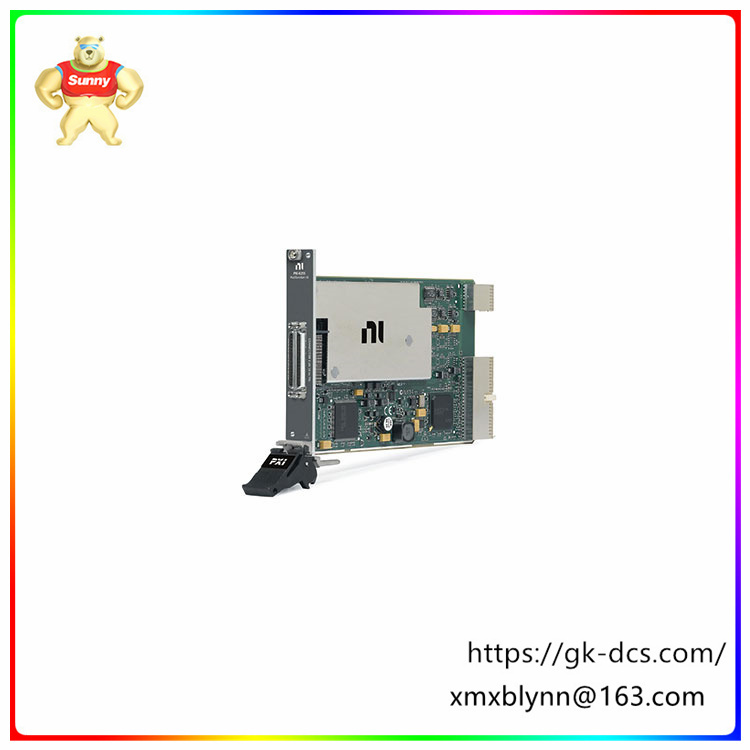

Pxi-6255 The PXI digital multi-function I/O module (Part number: 779547-01) is powerful. The user can route an internal or external cycle clock signal (with a known cycle) to the input countercurrent source. In pulse width estimation, the counter is able to measure the pulse width on its gate input signal. In addition, the PXI-6255 multi-function I/O module is compatible with NI SCC and SCXI signal conditioning platforms and is able to provide amplification, filtering and power for any type of sensor. These platforms also comply with IEEE 1451.4 Electronic Data Sheets (TEDS) requirements for smart Sensors, providing digital storage for information in sensor data sheets.
In terms of hardware configuration, the PXI-6255 has 80 analog input channels, and its input resolution is 16 bits. This enables it to accurately capture and process analog signals to meet the needs of complex industrial automation systems.
In the application field, the PXI-6255 has a wide range of uses. For example, in machine vision applications, it can be used in industrial scenarios such as robot guidance, quality control and material handling. In addition, the PXI-6255 can be paired with professional vision software to support high-speed image processing and machine learning applications.
Overall, the PXI-6255 is a powerful and stable PXI multi-function I/O module that meets the needs of a wide range of industrial automation and control applications.
