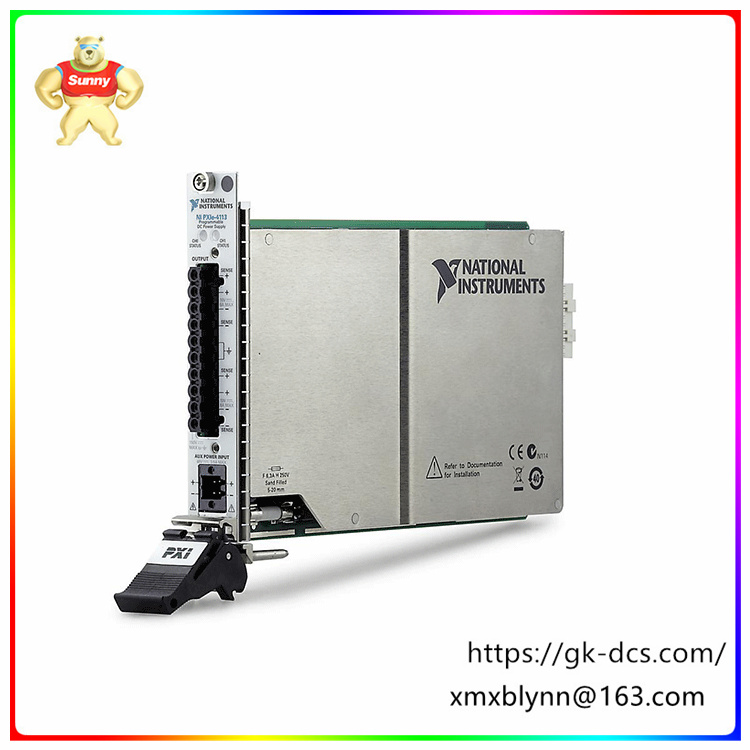

The PXle-4113 is a programmable DC power supply with isolated output. With this module, there is no need to integrate multiple instruments in a specific test rack, simplifying the design of automated systems for various applications such as defense and aerospace, automotive, component testing, and more. It also has a standard output disconnect function, which can be directly disconnected from the device under test when it is not needed, and also has a remote sensing function to correct path losses caused by system wiring.
The PXIe-4113 is a high-performance analog output module manufactured by National Instruments (NI) for measurement and control applications based on the PXI Express platform. Here's a closer look at the PXIe-4113:
First, the PXIe-4113 has a high-speed update rate, making it suitable for application scenarios that require real-time response. Its precise analog output signals can be used in analog control, waveform generators, signal generators and other applications, providing users with highly flexible signal output capabilities.
Secondly, the PXIe-4113 has the capability of real-time control. Its high-speed update rate and low latency characteristics enable it to meet the strict requirements of real-time control systems. Whether it's automated testing or data acquisition and control tasks, the PXIe-4113 delivers outstanding performance.
In addition, the PXIe-4113 has a high degree of synchronization performance. It enables highly synchronized operation with other PXIe modules and devices, which is critical for complex measurement and control systems. With precise synchronization, users can ensure the stability and accuracy of the entire system.
In terms of applications, the PXIe-4113 is versatile. It can be used for automated test equipment, sensors and systems to generate a variety of test signals through analog outputs. At the same time, it can also be used for data acquisition tasks, collecting analog signals and controlling actuators and performing real-time control tasks. In addition, PXIe-4113 can also be used as a signal generator to generate various waveforms and signals, such as sine wave, square wave, pulse, etc., to meet the needs of various signal generation.
In terms of hardware configuration, the PXIe-4113 is a dual-channel module that can provide 10V and 6A output capabilities per channel. In addition, it also has built-in voltage and current echo function, which is convenient for users to monitor and adjust the output signal. The maximum sampling rate of the module can reach 5kS/s, ensuring high-speed data transmission and processing capability.
In terms of output, PXIe-4113 has hardware timing output and trigger functions to achieve the best test throughput. In addition, it has an output disconnect relay and remote sensing function to isolate the device under test (DUT) and correct for line losses, improving test accuracy and reliability.
Overall, the PXIe-4113 is a powerful and stable analog output module suitable for a variety of measurement and control applications based on the PXI Express platform.
