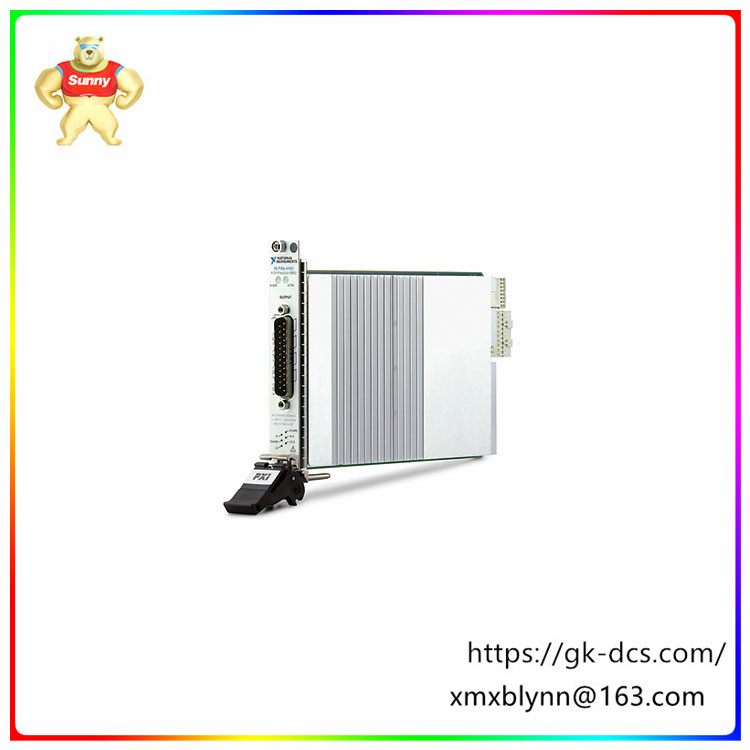

The PXIe-4143 is a 4-channel source measurement unit (SMU) ideal for high pin count applications. The module operates in a four-quadrant mode, with remote (4-wire) sensing capabilities integrated in each channel for accurate measurements. The high sampling rate of the PXIe-4143 helps to shorten the measurement time, capture the transient characteristics of the device, and enable rapid IV characteristic analysis of the device under test (DUT). With the high-speed sequence engine, users can synchronize these SMUs with each other or with other instruments, such as switches or high-speed digital test modules. In addition, SourceAdapt technology can adjust the PXIe-4143's response to any load to obtain the best response, maximize stability and minimize transient characteristics.The PXIe-4143 is a sophisticated PXI Source Measurement Unit (SMU) with many outstanding features and functions.
First, the PXIe-4143 is a 4-channel source measurement unit that is ideal for high pin count applications. Each channel is integrated with remote (4-wire) sensing capabilities for accurate measurements. The module uses a four-quadrant operation mode to provide high-precision voltage and current measurement capabilities with high resolution and low noise, which can meet the requirements of high precision applications.
Secondly, PXIe-4143 has a high sampling rate, which helps to shorten the measurement time, capture the transient characteristics of the device, and perform rapid IV characteristic analysis of the device under test (DUT). In addition, its high-speed sequence engine enables synchronization between multiple SMUs or with other instruments, such as switches or high-speed digital test modules.
Furthermore, the PXIe-4143's SourceAdapt technology adjusts the module's response to any load for optimal response, maximizing stability and minimizing transient characteristics. This technology enables the PXIe-4143 to maintain outstanding performance under a variety of load conditions.
In terms of data transmission and synchronization, the PXIE-4143 carries out data transmission and synchronous communication through the PXIe bus. The PXIe bus provides high-speed data transmission and synchronous operation capabilities, making it easier to integrate the module with other PXIe modules and devices.
In addition, the PXIe-4143 has flexible configuration options, allowing users to select the appropriate range, gain and filtering options to meet the measurement requirements of different applications.
In summary, the PXIe-4143 is a powerful, high-performance PXI source measurement unit for a variety of measurement tasks requiring high accuracy, high sampling rates, and stable performance.
