Bus connector PXI Express
Analog input impedance :1MQ,50 ohms
Oscilloscope maximum bandwidth: 100 MHz
Maximum sampling rate 100 MS/s
Analog input voltage range: -10V to 10V
Analog input resolution: 14 bits
FPGA--
Number of voltage input channels 2
"CableSense": No
The PXle-5122 high-resolution PX oscilloscope consists of two channels with a spury-free dynamic range (SFDR) greater than 75 dBc, and allows for flexible setting of coupling, impedance, voltage range, and filtering.
The Pxi oscilloscope also features multiple trigger modes, high capacity onboard memory, and an instrument driver that includes data streaming and analysis capabilities. The device is ideal for time - and frequency-domain applications requiring high-resolution, low-noise measurements with analog bandwidths of up to 100 MS/s and 100 MHz. The PXle 5122 also features advanced Px sync and data streaming capabilities.

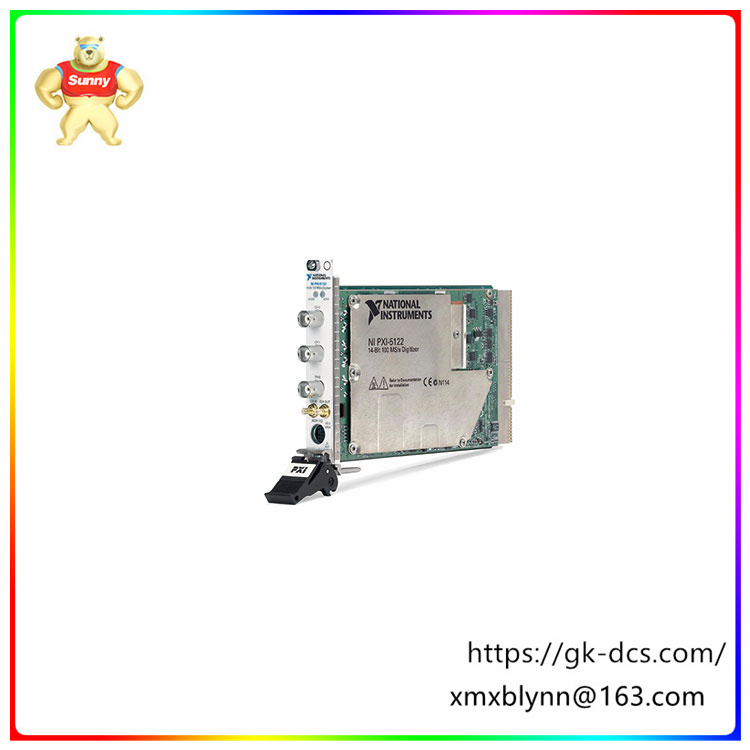

The PXIe-5122 is a high-resolution digitizer and a high-performance PXI oscilloscope. It is an x4 PXI Express module capable of reading and writing PC memory, hard disk, or RAID 0 disk arrays at a data rate of up to 400 MB/s. The digitizer features a spury-free dynamic range (SFDR) of greater than 75 dBc and the ability to flexibly set coupling, impedance, voltage range and filtering.
The PXIe-5122 has an analog bandwidth of up to 100 MS/s and a resolution of 14 bits, making it ideal for high resolution, low noise measurements. It also features two channels, each with a 64 MB of on-board memory, making it ideal for both time and frequency domain applications.
In addition, the PXY-5122 is equipped with multiple trigger modes, an instrument driver with data streaming and analysis capabilities, and advanced PXI synchronization and data streaming capabilities. These features enable the PXIe-5122 to meet a wide variety of complex measurement needs, such as signal intelligence, radar, IF/RF data reading applications.
