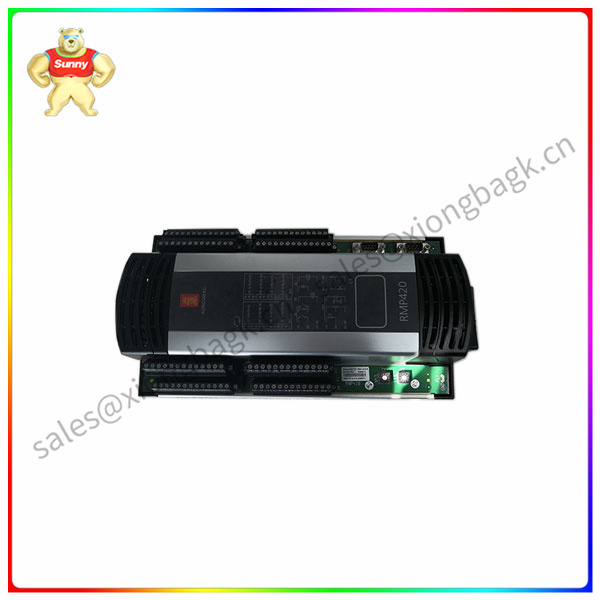

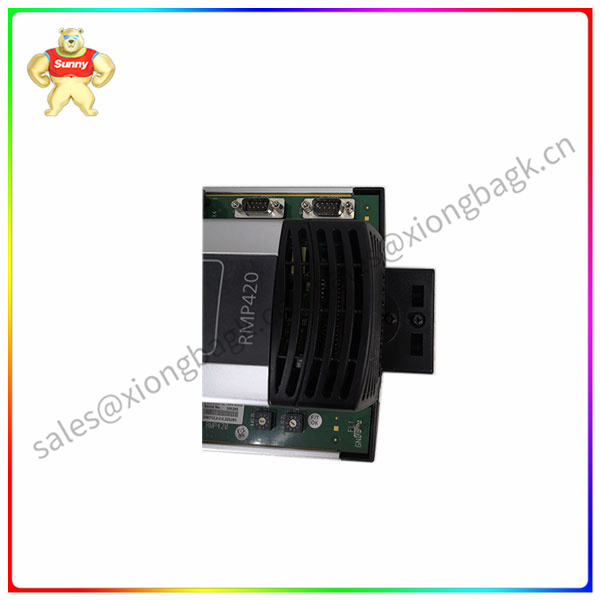

RPM420 is a multipurpose I/O module for use in Alarm monitoring and
Integrated Control Systems. RMP420 is designed for 32 field input channels
in single topologies. Its interface towards the host control computer (RCU) is
provided by redundant I/O bus.
The module is approved for Ex Zone 2 applications.
Functions
• 32 software configurable multipurpose solid-state channels.
• Analog and Digital Input and Output (AI, AO, DI and DO).
• 2 or 3 wire Resistance Temperature Detector (RTD).
• 2 channels can be configured as pulse/frequency/encoder input.
• Short-circuit protected I/O loop power output.
• Dual Remote I/O process BUS interface for redundant communication with
host computer(s).
• Communication ports galvanically insulated from other module circuitry.
• Loop monitoring (per channel)
BENEFITS
• Over-voltage protection
• Extensive module diagnostics
• I/O channels online
configurable
• Soft and hard fail-safe
• Dual watchdog
• Certified for use in
hazardous area zone 2
• RIO module and I/O loop,
powered from the same
source
• Automatic recovery protection e.g. automatic
start of faulty channels
• Easy installation and
replacement
• Simple and safe FW upgrade
• Status LED
Applications:
profession
Refining and petrochemicals
Upstream and midstream oil and gas
Chemicals and specialty chemicals
Generate electricity
pharmacy
Security and critical control applications
TuV certification for SIL 3 applications according to international standard IEC61508:2010
- Emergency shutdown system (ESD control)
- Fire and Gas systems (F&G control)
- Burner Management System (BMS control)
- High integrity pressure protection system (HIPPS control)
- Turbomachinery control (TMC) and protection systems
Suitable for centralized, distributed, and remote I/O applications
Suitable for harsh environments
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
