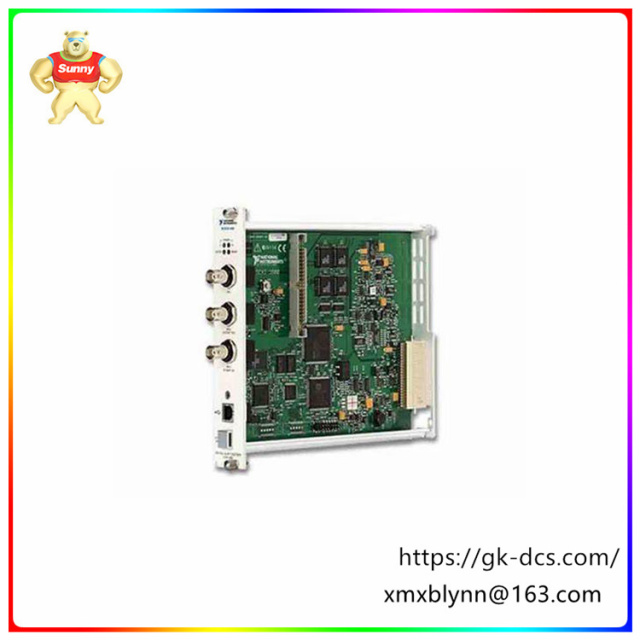

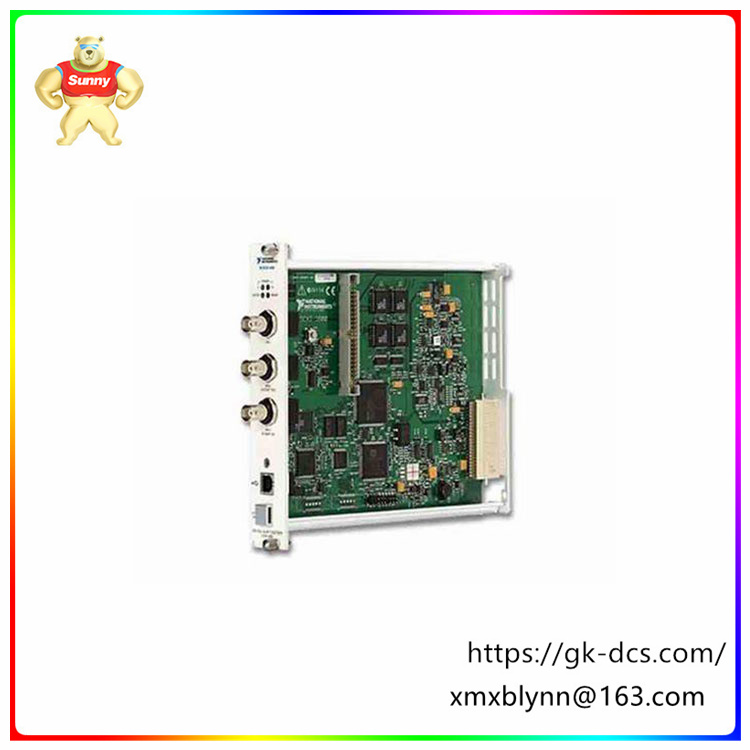

16-bit Data Acquisition Module - for SCXI - SCXI‑1600 is a full-featured data acquisition and control module for SCXI analog input, analog output, digital I/O and switching modules. The SCXI‑1600 can be installed in the SCXI chassis, providing external digital triggering, clock and calibration connections for all modules in the chassis. With SCXI‑1600, any SCXI chassis can be converted into a plug-in data acquisition system.
The SCXI-1600 is a full-featured data acquisition and control module designed for SCXI analog input, analog output, digital I/O, and switching modules. It can be used in conjunction with this module to create a true plug and play USB data acquisition system.
The SCXI-1600 has a total of 32 independently programmable virtual inputs that respond to input signals from the keyboard (command menu) and communication protocols. All virtual input operands default to exit =0 unless the appropriate input signal is received. The state of the virtual input is maintained by the control power supply. In addition, the module has 16-bit data acquisition capability, can be installed in the SCXI chassis, and provides external digital triggering, clock and calibration connections for all modules within the chassis.
Overall, the SCXI-1600 is an excellent and powerful data acquisition and control module for a variety of applications requiring high-precision data acquisition and control.
