The T8842 Multifunctional Field Terminal Assembly (VFTA) is primarily designed to act as the primary interface between field equipment related to the detection and suppression of fire and gas hazards and the T8448 Trusted three-module Redundant (TMR) area interface module. It also serves as an interface to the trusted TMR valve [monitoring module T8449], where the digital output of the solenoid valve is interchangeable with the analog input of the valve [] position.
Each channel of the VFTA is configurable and can be connected to a variety of field devices. These devices include devices that generate analog and digital input signals, as well as output devices that require digital signals up to 28 Vdc.
Features:
●40 channels per VFTA each can be configured as input or output.
Industry standard field equipment link (2 or 3 lines).
Standard DIN rail compatibility.
Simple installation and connection.
● Simple configuration with plug-in fuse and built-in resistor.
●18vdc to 28vdc operation.
The on-site power supply is divided into 5 groups and 8 channels.
Choose to power each group from a controlled output.
Weld field power supply for each channel.

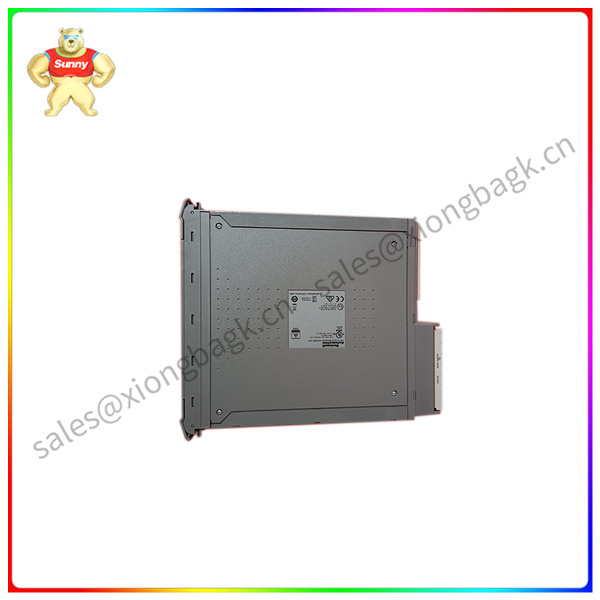

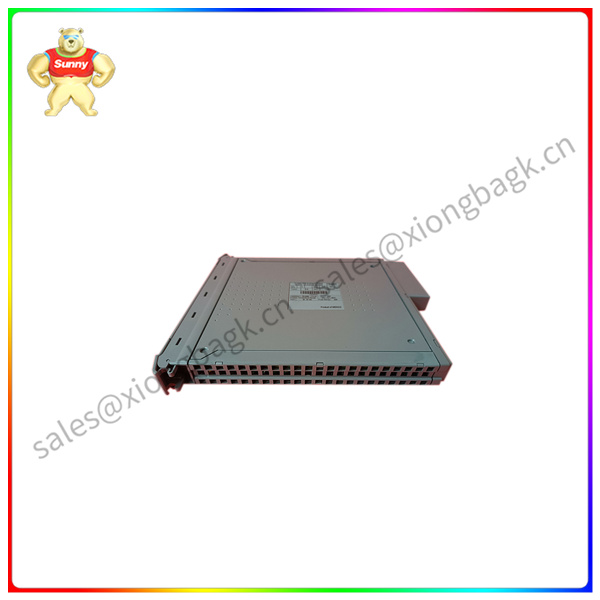

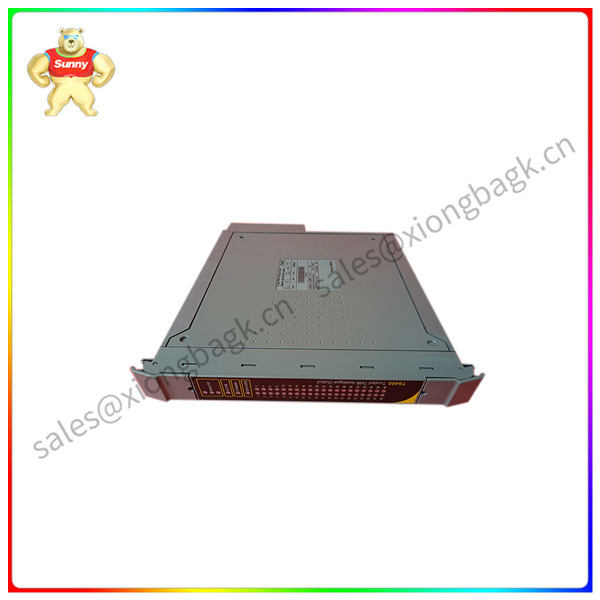

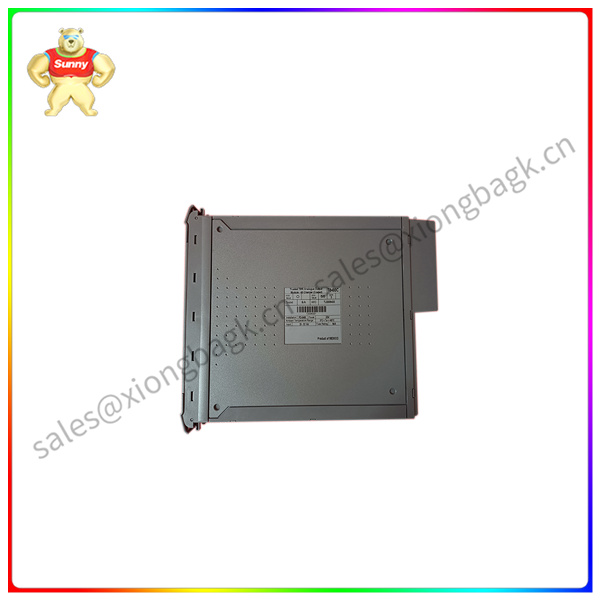

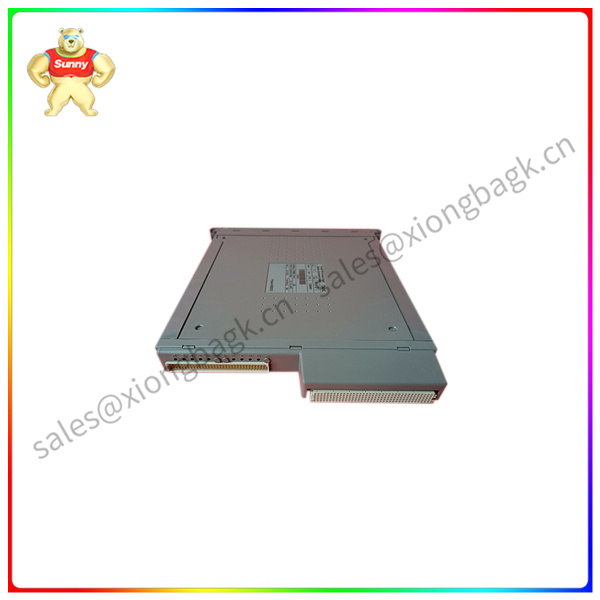

The T8480 is an analog output module produced by Rockwell Automation with a variety of features and benefits. Here are some of the features of the T8480 analog output module:
Analog output function: T8480 module has a number of analog output channels, can output analog signals, suitable for a variety of analog signal control and adjustment applications.
High precision and high stability: The T8480 module adopts high precision and high stability analog output technology, which can ensure the accuracy and stability of the output.
Multiple interface support: The T8480 module supports a variety of communication interfaces and protocols, such as Modbus, Foundation Fieldbus, Profibus, etc., which can be easily integrated and communicated with other devices or systems.
Programmability: The T8480 module supports programmability, and users can configure and control the module through programming to achieve custom functions and operations.
Hardware fault-tolerant (HIFT) and voting functions: The T8480 module has hardware fault-tolerant (HIFT) and voting functions to ensure the security and reliability of the system.
1-millisecond SOE event recording function: The T8480 module can record 1-millisecond SOE events and record and analyze system events.
Online modification is not limited by the number of times: The T8480 module supports online modification, and is not limited by the number of modifications, you can easily configure and debug the module.
Adjacent/smart slot hot replacement: The T8480 module supports adjacent/smart slot hot replacement for easy expansion and maintenance.
Dedicated speed monitoring module: The T8480 module is equipped with a dedicated speed monitoring module, which can be used in applications such as fire gas system mixing TMR.
In summary, the T8480 analog output module is a powerful, reliable and easy to use analog output module for a variety of industrial automation and control applications. It features high precision and stability, multiple interface support, programmability, hardware implementation of fault tolerance (HIFT) and voting, 1 millisecond SOE event logging, unlimited number of online modifications, adjacent/smart slot hot replacement, and dedicated speed monitoring module.
