HIMATRIX Z7127 security-related digital output
The Z7127 is an 8-channel analog input module manufactured by HIMA. It is a discontinued product, but is still available from some distributors. This module allows you to connect up to 8 analog sensors to the HIMA control system. The sensor can be voltage, current or resistance type. The module provides 16-bit resolution for each channel. It also has a built-in amplifier and filter to improve signal quality.
The Z7127 is a DIN rail mounting module. It has a 24 VDC power input. The module communicates with the control system using the HIMA CCNET protocol.
The following are the technical specifications of the Z7127:
Number of channels: 8
Input type: voltage, current, or resistance
Resolution: 16 bits
Amplifier gain: 1000:1
Filter: 40 Hz
Communication protocol: CCNET
Power Supply: 24 VDC
The Z7127 is a versatile analog input module that can be used with a variety of sensors. This is a good choice for applications that require high precision and resolution.
Here are some applications of the Z7127:
Temperature measurement
Pressure measurement
Flow measurement
Liquid level measurement
Weight measurement
Vibration monitoring
Motor control
Process control
| HIMA CPU F8650X Central Module F-8650X |
| HIMA Central Module F8652E 984865264 CPU Card F-8652E |
| HIMA F3 AIO 8/4 01 | HIMatrix F3 | Safety-Related Controller HIMA HIMatrix F35 Module 982200416 |
| HIMA F8627X Ethernet Communication Module 984862702 |
| HIMA F3 DIO 8/8 01 | HIMatrix F3 | Safety-Related Controller |
| HIMA F6217 | 984621702 | AI Card | F-6217 | ANALOG INPUT MODULE |
| HIMA Central module F8652X DCS system module, card |

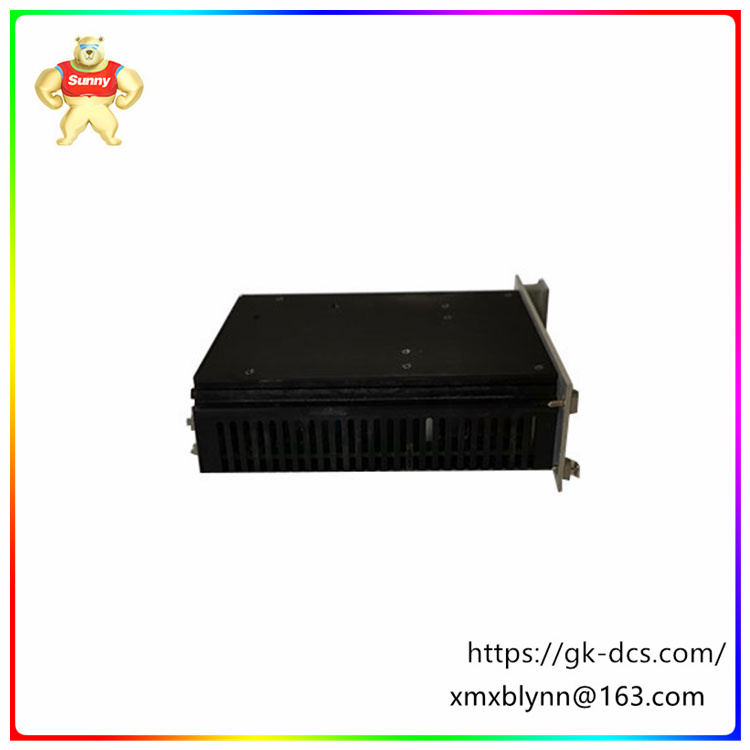

| HIMA F7126 Power Supply Module F-7126 |
