Technical specifications for IC660TBA023
Brand GE Fanuc
Series Genius I-O
Part number IC660TBA023
Description Terminal assembly
Voltage 24/48 V DC
Dimensions 8.83x3.50x3.94 inches
Weight 4 kg
Isolation 1500 volts
Temperature 0-60 degrees Celsius
The threshold frequency is 400 ms
Dissipated 9 watts

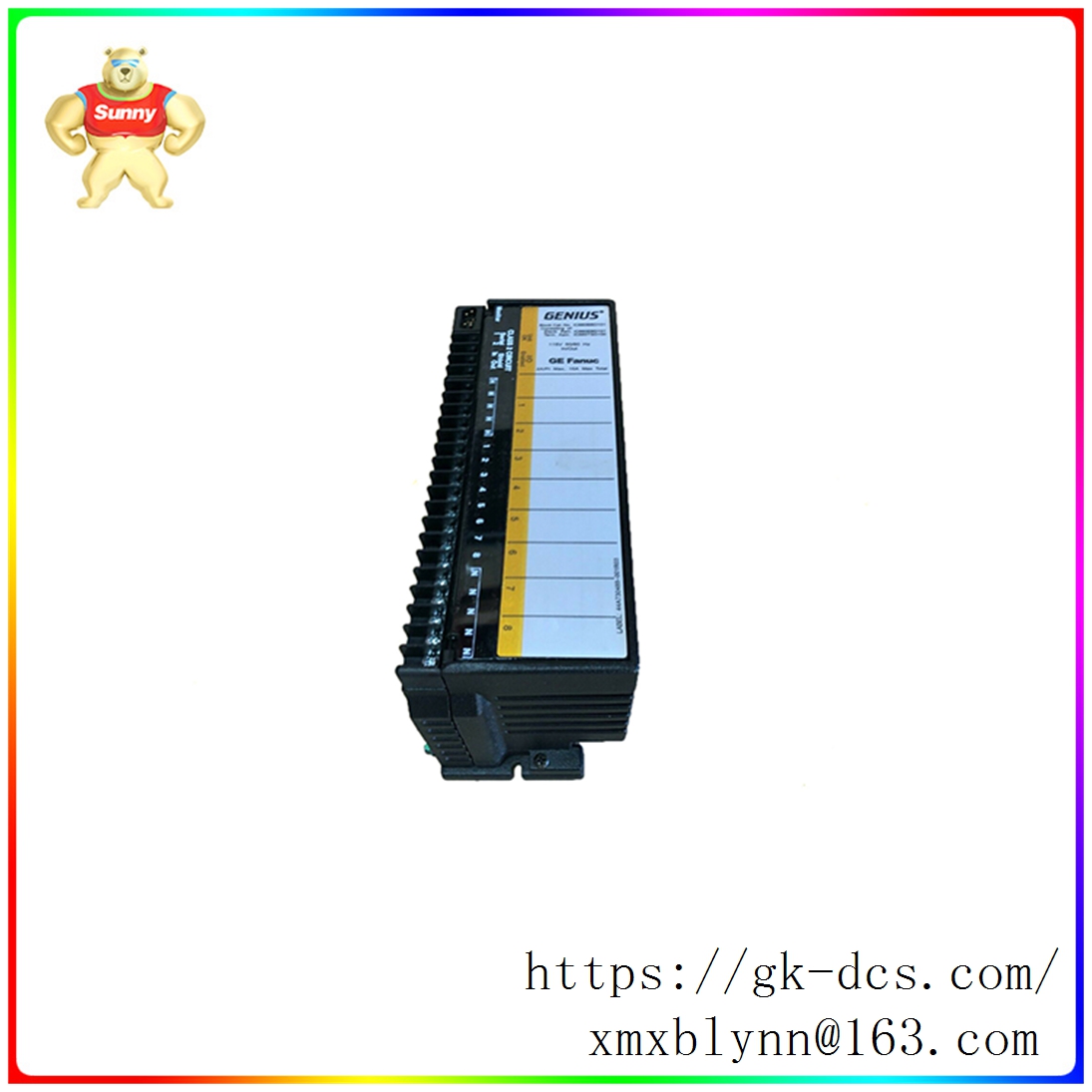

The IC660TBA023 device is a GE Fanuc terminal assembly. It is a thermocouple block with a rated voltage of 24/48 VDC. The block has a total of 16 circuits available. Its small size saves a lot of panel space. Its dimensions are 8.83 inches high, 3.50 inches wide, and 3.94 inches deep. It weighs about four pounds. During normal operation, the module dissipates 9 watts of heat. The front side of the IC660TBA023 terminal assembly has 2 leds. One is a "unit normal" LED and one is an "I/O enabled" LED, both of which light up green for normal operation. The ambient temperature should be set between 0 and 60 degrees Celsius, with a maximum relative humidity level of 95% and no condensation. The isolation voltage between the modules is 1500 volts for 1 minute.
The IC660TBA023 terminal assembly is equipped with three pairs of inputs. By using a voltage-to-frequency converter, each input signal is converted into a common amplifier. The gate time count for the output frequency is 400 milliseconds. There is a multiplexer that checks the input time of the thermocouple. Measure and store cold junction inputs. The IC660TBA023 terminal assembly can be connected to a handheld monitoring device that can be used to adjust the module. There is a monitoring port at the top of the module that can be used to connect it to monitoring devices. The operator can get alerts about different events from the alerts set in the module. Each input can be configured for low and high alarm.
