Manufacturer: Rockwell Automation
Brand: Alan Bradley
Part Number/Catalog Number :1734- Acetyl intima
Series: Point I/O
Module type: ControlNet Adapter module
Input voltage: 24 volts DC
Surge current :6 amps 10 ms

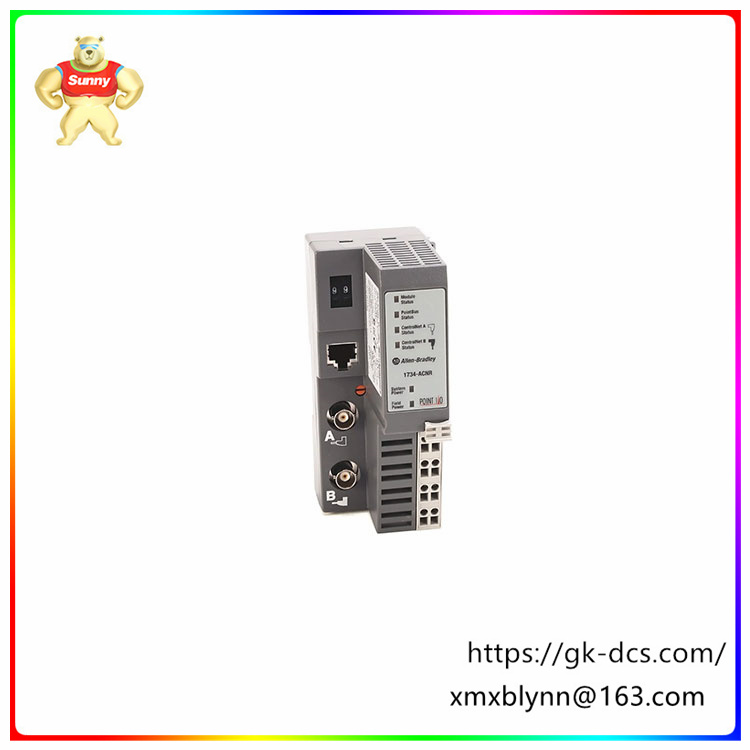

The Allen-Bradley 1734-ACNR I/O adapter provides an interface for communication and control with the I/O modules of the ControlNet network. The adapter offers a variety of control solutions, including high-speed data transfer between I/O devices and controllers. The 1734-ACNR handles redundant media and supports local communication via network access ports.
Multiple I/O control connections can be established with a single 1734-ACNR ControlNet adapter. For digital modules, up to five rack-optimized I/O connections can be established per adapter. It also allows direct connection of up to 25 dedicated modules and analog modules. The total number of connections supported in the network depends on the I/O configuration. With multiple 1734-EP24DC power supplies, the I/O capacity can be further expanded to up to 63 I/O modules. It should be noted that the 1734-ACNR can only control I/O modules of the C series or later. The adapter uses a standard 24-volt DC supply with a maximum power of 10.2W. It has a maximum backplane current of 5 amps at 1 volt DC.
