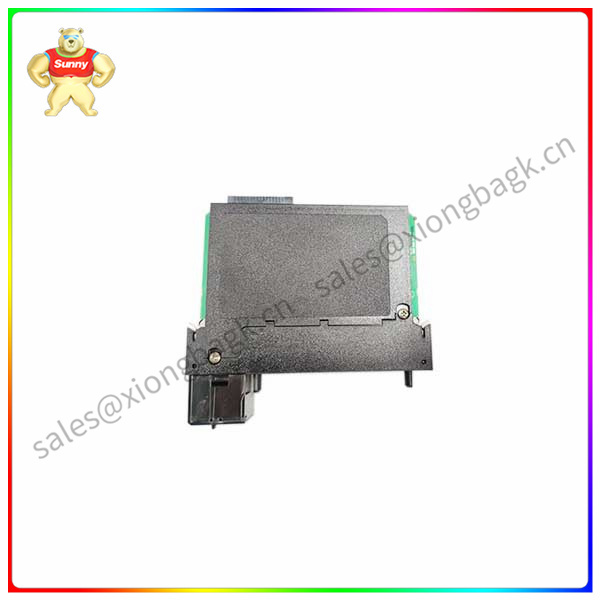

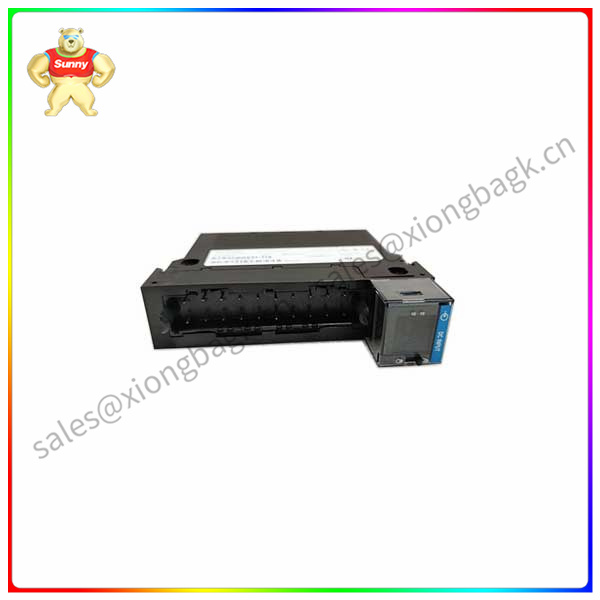

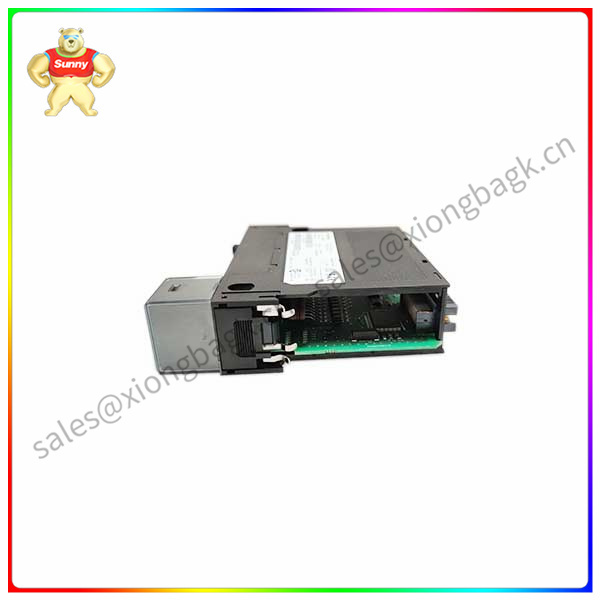

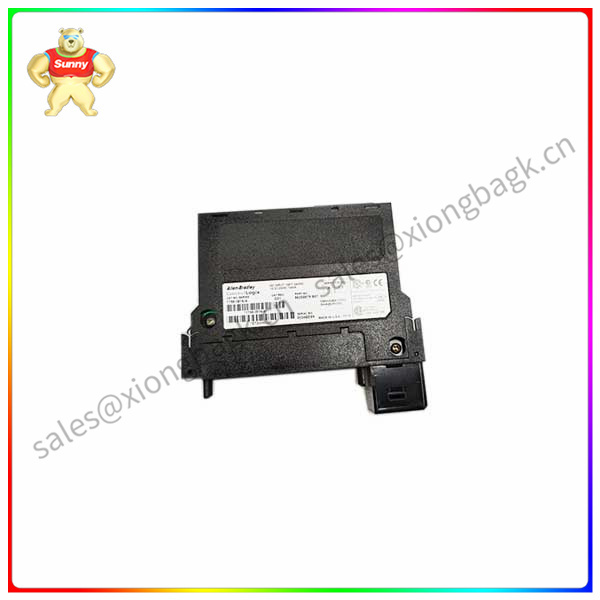

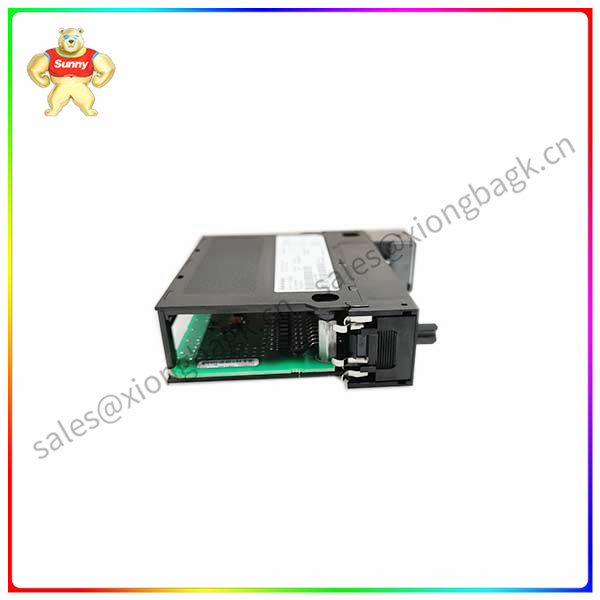

The 1756-IB16 is a digital input module under the Allen-Bradley brand, part of the ControlLogix family. It has 16 channels and operates at 10 to 31.2V DC. The module is current-absorbing and has input and communication status and module health display functions. In addition, it has received several certifications, including CCC in China, CE in Europe, and other international certifications.
The 1756-IB16 is a digital input module under the Allen-Bradley brand for connecting discrete devices such as buttons, switches, auxiliary contacts, and other devices that provide binary or switching signal states. It has the following functions:
Sixteen independently isolated input channels, each capable of receiving input signal voltages ranging from 10-30VDC.
It is commonly used for local I/O configurations as well as remote or distributed I/O architectures.
There is an inherent signal conversion delay of up to 1 ms+ filter time hardware delay for the conversion from off to on.
For the conversion from on to off, the signal delay consists of a maximum of 4 ms filter time.
The user can configure the filter time, such as 0 ms, 1 ms or 2 ms.
Its current consumption is 100 mA at 5.1V and 3 mA at 24V.
A large surge current with a peak of 250 mA decays to 37% in 22 milliseconds without activation.
The maximum current ranges from 2 mA at 24VDC to 10 mA at 30VDC.
In the off state, the maximum voltage is 5V and the maximum current is 1.5mA.
Conduction current ranges from 2.0 mA at 10 volts DC to 10 mA at 31.2 volts DC.
About the advantages of 1756-IB16, it has high reliability, precision and ease of use. It can operate for a long time in harsh industrial environments, and has high-precision position measurement capabilities that can provide accurate position feedback information. In addition, it has a simple user interface and easy to use programming software for easy programming and maintenance.
However, for the disadvantages, it may have some problems with signal conversion delay and current consumption. In addition, it requires proper configuration and installation to work properly, and if incorrectly configured or installed may cause the module to not work properly. In addition, although it has high reliability and precision, under some extreme conditions, such as too high or too low temperature or humidity, it may have a certain impact on its performance.
Overall, the 1756-IB16 is a powerful, reliable and easy-to-use digital input module for a variety of industrial automation applications. However, it is necessary to pay attention to its scope of application and environmental conditions when selecting and using it to ensure its performance and stability.
