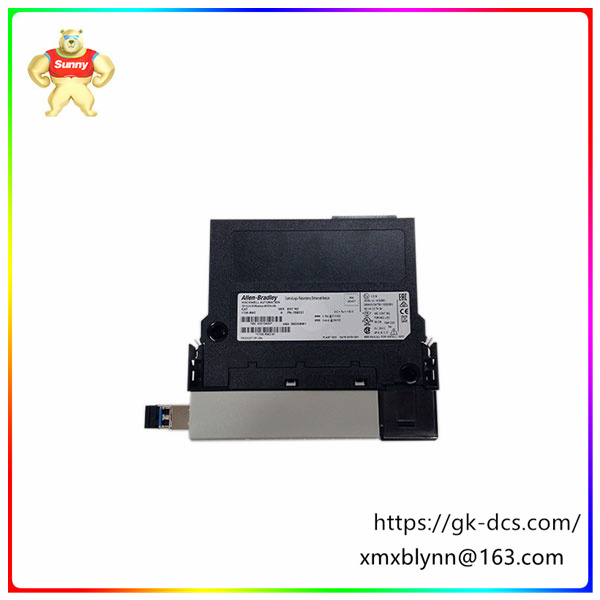

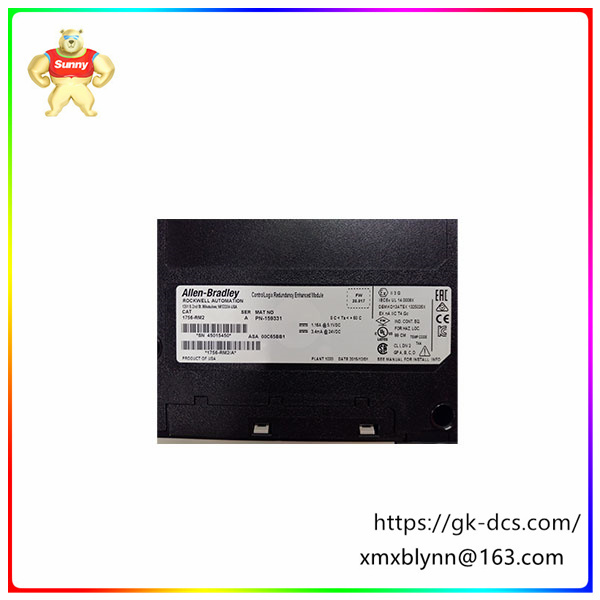

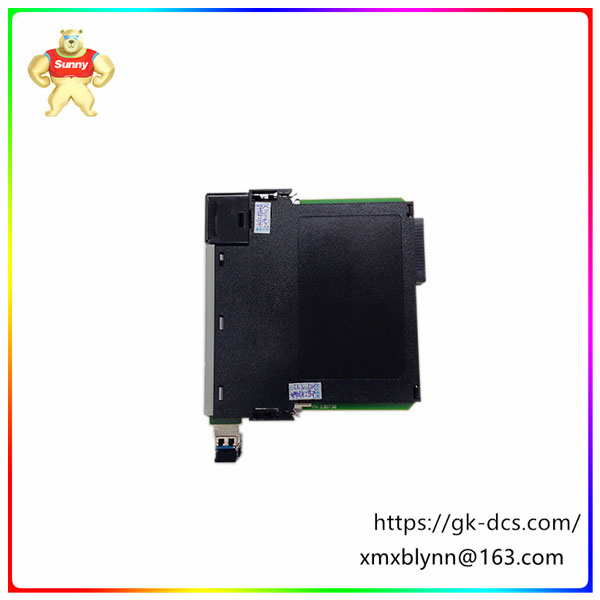

1756-RM2 | ControlLogix module | The isolation module type is available

Brand: A-B
Model: 1756-RM2
Product type: ControlLogix module
Payment method: Wire transfer, Western Union
Port of shipment for remittance: Xiamen, China
Delivery time: 1-3 working days
Condition: New and 100% original
Warranty: 12 months

The Allen-Bradley 1756-RM2 is a ControlLogix redundant module. It has enhanced features for speeds up to 1000 Mbps. When paired with the 1756-L7x controller in both cases, it provides the best scanning performance. For cross-loading, the 1756-RM2 uses redundant fiber ports with no single point of failure. During channel switching, the processing chassis stays synchronized, while scan times can experience a delay of about 10 milliseconds. It features enhanced security features and interference-free diagnostics.

The 1756-RM2 redundant module consumes 1.16A current at 5.1V DC and 3.4 mA current at 24V DC. It has a maximum power consumption of 6W and a thermal dissipation of 21 BTU/hr. It can be installed in any slot in the ControlLogix chassis. 1756-RM2 weighs 0.64 LBS and has an open shell. In terms of communication, it supports up to seven enhanced ControlNet and EtherNet/IP communication modules. In terms of cabling, the 1756-RM2 supports 1756-RMC1, 1756-RMC3 and 1756-RMC10 cables with lengths of 1m, 3m and 10m respectively.

1756 ControlLogix CIP Secure I/0 module

Compact GuardLogix® 5380 or GuardLogix 5580 console is supported
Functional safety levels up to (including) SIL3 and PLe are available
Supports CIP Safety information forwarding and routing
Local or distributed I/O for use as the 5580 GuardLogix controller
Provides faster response times
Use the Logix Designer application version 32
Digital input modules available: IB16S-16 channels (SIL 3 for all grades)
Digital output modules available: OBV8S-8 channels (SIL 3 for all grades)
Includes compliance marks: TUV, UL, IECEx, ATEX, CE, Marine, FM
ControlLogix Digital I/O module

Various voltages available
Each module provides 8 to 32 points
Both isolated and non-isolated module types are available
Contains channel-level fault status output
Direct connection or rack-optimized communication is possible
Field diagnostics for selected modules
