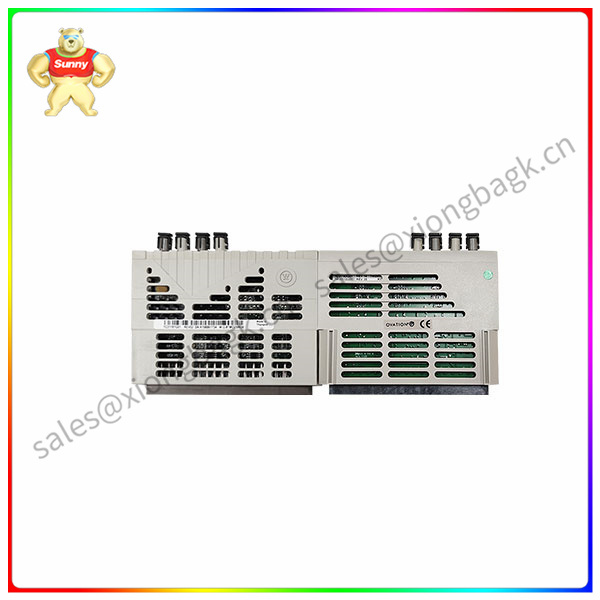

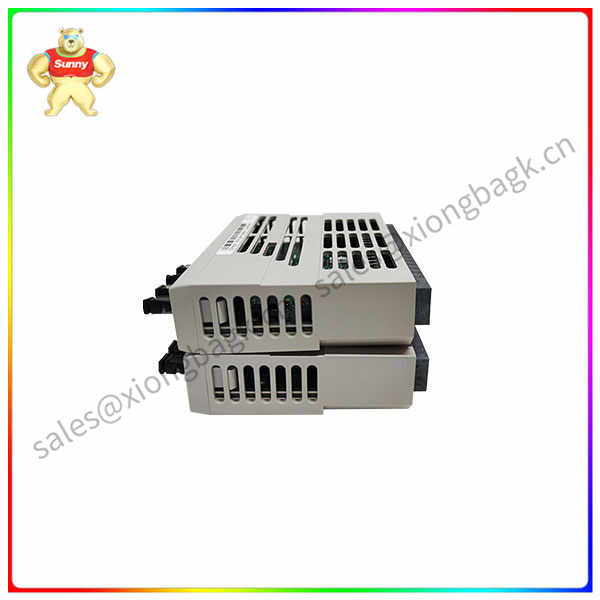

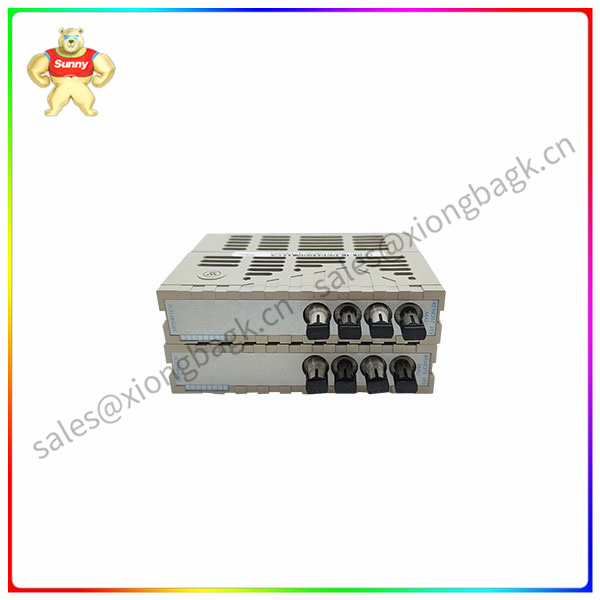

1C31181G01 is a programmable module from Emerson that implements a specific control logic or algorithm.
It may be programmed in a programming language, such as C, C++, or Java, to implement user-defined control logic or algorithms. This module is highly modular, which means that its design allows users to customize and extend it according to the specific application needs.
In addition, 1C31181G01 has a high efficiency rating, which directly means that it can help users save costs. Its high protection rating (IP55) guarantees its stability and reliability in a variety of environments.
PLC network is composed of multiple subnets, the communication process of each subnet is determined by the communication protocol, and the communication mode is the core content of the communication protocol. So how many kinds of network communication methods are there in PLC programming? 1. Periodic input/output communication mode
Periodic input/output communication is often used in remote input/output links of programmable controllers. The remote input/output link works in master-slave mode, and the PLC remote input/output master control unit acts as the master station.
Other remote input/output units act as slave stations. The communication processor in the master station exchanges data with each slave station in turn by means of periodic scanning, and sends the data sent in the corresponding subbox to the slave station and from the slave station
Read the data and put it into the receiving box of the corresponding subbox. In this way, the Remote Input/Output buffer in the master station is periodically refreshed.
2. Global input/output communication mode
All I/0 pass-through is a communication method for the serial shared storage area, and it is necessary to communicate between the PLCS of the linked area. In global I/O communication mode, PLC directly reads and writes links with read and write instructions
A write operation to an address in one programmable logic controller can only read the same address in other programmable logic controllers. Like the periodic I/O mode, the curium I/O mode also uses the PLC I/O zone
The domain is therefore only suitable for communication with small amounts of data.
3. Master/Slave bus communication mode
Slave bus communication mode, also known as 1:N communication mode, means that there are N stations in the PLC subnet of the bus structure, of which there is only one master station, which is the slave station. Use centralized access control technology to allocate total
Line access rights are usually allocated by polling table.
The functions of 1C31181G01 include:
Programmability: The module may be programmed in programming languages such as C, C++, or Java to implement specific control logic or algorithms.
High efficiency level: This can reduce energy consumption and direct cost savings.
High level of protection (IP55) : ensures stable and reliable operation of the module in a variety of environments.
