Brand: A-B
Model: 2094-BC04-M03-M
Product type: Integrated module
AC input voltage: 324-528V AC (RMS, three-phase)
Compatible motor series: LDAT integrated linear thruster, MPAI heavy-duty electric cylinder, MPAR electric cylinder, MPMA integrated linear platform, MPF Fo
Continuous internal parallel power supply: 200 watts
Internal shunt resistor: 27.75 ohms
Bus continuous power output: 27.6 kW
Payment method: Wire transfer, Western Union
Port of shipment for remittance: Xiamen, China
Delivery time: 1-3 working days
Condition: New and 100% original
Warranty: 12 months
The

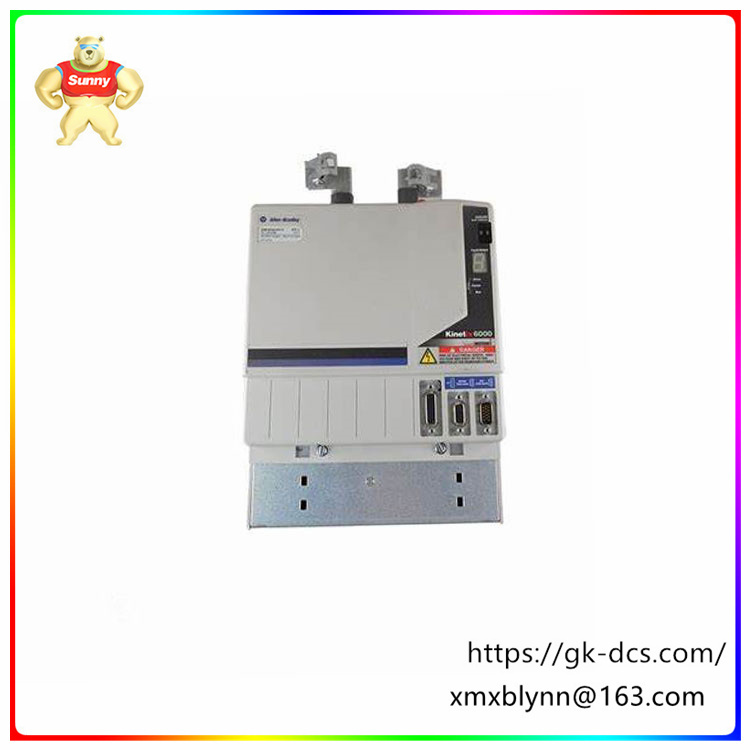

2094-BC04-M03-M is an axis module in the Kinetix 6000 multi-axis servo drive family. The module mainly has 13.5kW bus output power, continuous bus output current of 21.2A, continuous current (sinusoidal) 0 packet of 30.0A, peak current (rms) of 53.0A, and peak current (0-PK) of 75.0A.
The shaft module operates by providing AC input voltages of 360VAC-480VAC. It has a speed loop bandwidth of 500Hz and a current loop bandwidth of 1300 Hz. It has a pulse width modulation (PWM) frequency of 4 kHz and a nominal input voltage of 650VDC.
The shaft module has an efficiency of 98%, A capacitance of 840 F, a capacitory-energy absorption of 108 joules, and a short circuit current rating of 200,000 A (rms) symmetric.
The input frequency range of the 2094-BC04-M03-M module is 47 Hz to 63 Hz. The module has A rated main input current of 44 A and a maximum main input current rating of 31.1A (0 peak). The inverter has a rated input voltage of 650 VDC and a line loss crossing time of 20 ms. The 2094-BC04-M03-M module has an internal parallel power supply function, including 200 W continuous power, and an internal parallel resistance rating of 27.75 ohms. For high-speed operation, the 2094-BC04-M03-M module has current ratings of 21.2 A (continuous RMS) and 30 A (continuous sine 0 peak), with peak current ratings of 53 A (RMS) and 75 A (0 peak). The integrated shaft module can be installed in the Logix platform and can be used in multi-axis types of integrated motion control systems. Its compact size enhances the flexibility of the machine design, and its simplified wiring requirements and modular design reduce the number of connections required for operation. The 2094-BC04-M03-M module is compatible with all Allen-Bradley motor series, Including LDAT integrated linear thrusters, MPAI Heavy duty electric cylinder, MPAR electric cylinder, MPMA integrated linear platform, MPF food grade, MPL Low inertia, MPM medium inertia and MPS stainless steel series. The 2094-BC04-M03-M integrated shaft module has an operating temperature range of 0 to 50 °C and can be stored at temperatures of -40 to 70 °C.
