Manufacturer：Rockwell Automation
Brand：Allen-Bradley
Part Number/Catalog No.：2711-K10C15
Product Line：Panelview 1000
Display Size：10.1 in.
Display Color：Multi-Color
Input Type：Keypad

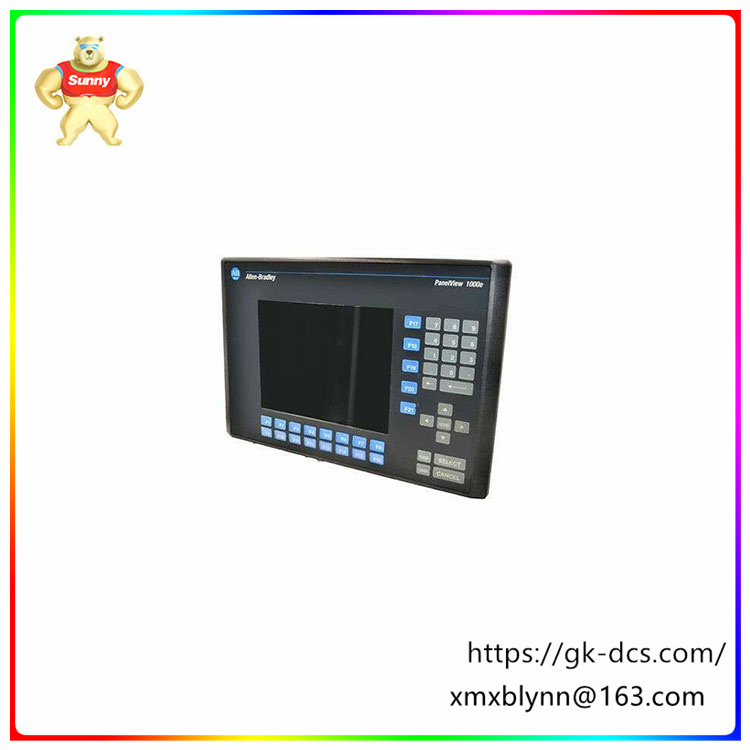

The 2711-K10C15 by Allen-Bradley is part of the Panelview 1000 series and is engineered for users to effectively interface with their machinery. Operators can easily input information and commands with the Keypad. Equipped a sharp 10.1 in. Multi-Color display. Each module features a durable NEMA Type 12/13 or 4X enclosure and runs on 85-264 Volts Alternating Current input power. There is Printer (RS-232) Port and ControlNet ports for adaptable communication.
PanelView 2711-K10C15 terminals equipped with an RS-232 printer port can print. The input power should be protecred by a 15 amp fuse or circuit breaker. The Panelview should have a separate power source from communication cables. The terminal is equipped to support five languages, French, German, Italian, Spanish and English.
The 2711-K10C15 PV900/PV1000 terminals have an operating temperature with a range of 0 to 135 degrees celsius. Do not install the terminals in environments where atmospheric gases have ignition temperatures less than 135 °C (275 °F). The terminla should be mounted in and environment that provides IEC-1131-2 Pollution degree 2 protection. Mount the terminal in an enclosure that will protect the internal circuity. Allow adequate space for proper vnetilation The temperature around the terminal should be between 0 to 55 degrees celsius.
In practical applications, the 2711-K10C15 module may be used in various industrial automation scenarios, such as production line monitoring, machine tool control, etc. By cooperating with other devices and systems, it can realize real-time data acquisition, display and processing, and improve production efficiency and quality.
