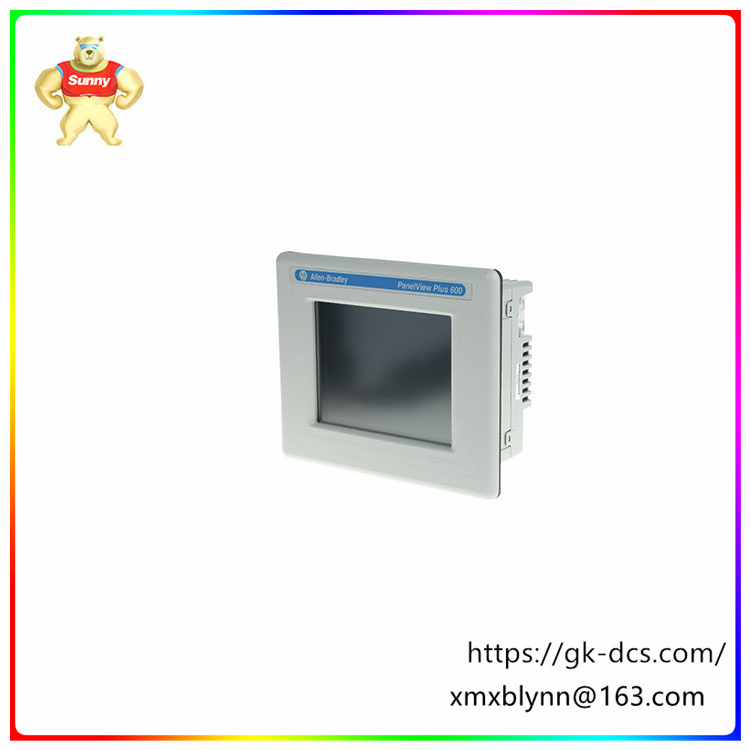

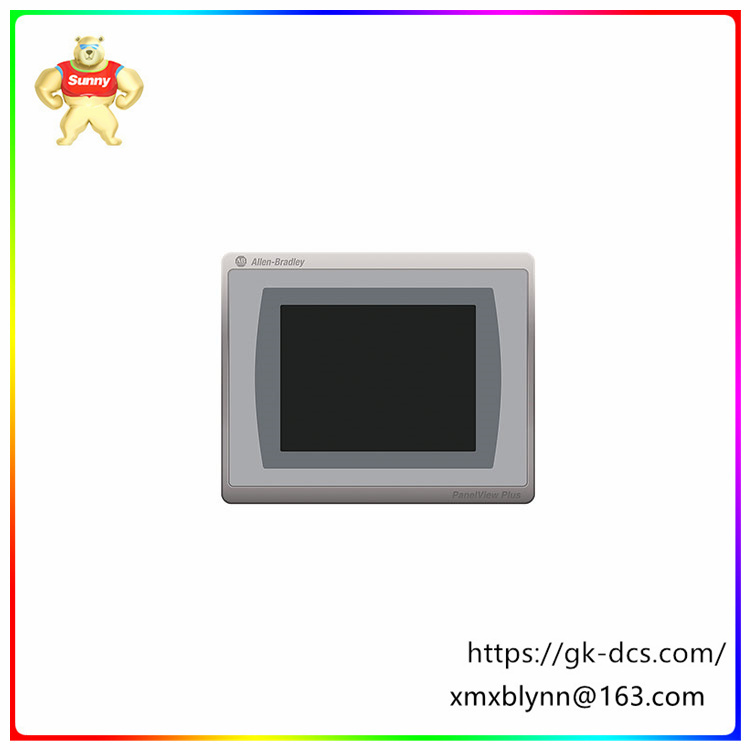

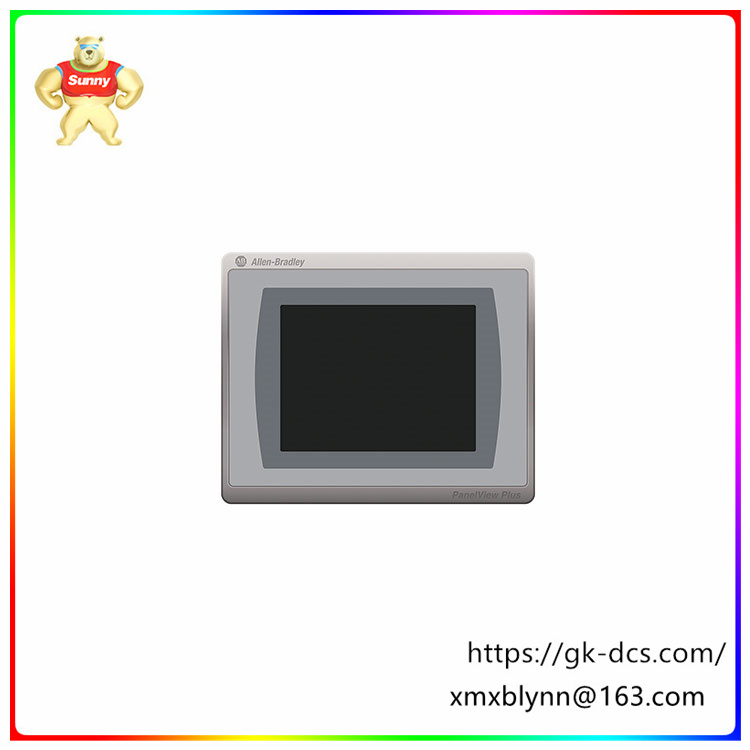

Brand: a-b
Model: 2711P-RDT15C
Product type: PanelView Plus Disp module
Width :416 mm
Height :330 mm
Depth :65 mm
Weight :4.2 kg
Opening size :305 x 391 mm
Payment method: Wire transfer, Western Union
Port of shipment for remittance: Xiamen, China
Delivery time: 1-3 working days
Condition: New and 100% original
Warranty: 12 months
Technical specifications:Touch screen module with high speed counter (6, 30KHz) and analog potentiometer (1 for CPU 221/222 and 2 for CPU 224/224XP/226).
2 high frequency pulse outputs (up to 20KHz), suitable for controlling stepper motors or servo motors for positioning tasks.
The real-time clock function can be used to time stamp information, record machine running time, or time control processes.
Software support:
Support FactoryTalk View Machine Edition software for building application projects and simplifying configuration.
FactoryTalk View Studio Machine Edition software allows users to program all PanelView Plus 6 compact graphics terminals.
Integration and connectivity:
Remote location monitoring and control can be achieved through Ethernet connection.
Tight integration with Rockwell's other automation products, such as PLCS, improves overall system efficiency and reliability.
The display module mainly uses a 15-inch display with an effective display area of 304 x 228 mm (12.0 x 9.0 inches), a pixel resolution of 1024 x 768, and 18-bit color graphics. The display module is not limited to providing process visualization, as it also contains an analog resistive touch screen. The touchscreen interface can operate up to 1 million drives with a driving force of 10-110 g.
The display module is the most active and utilized component in PanelView operation terminal. However, the component can be protected and maintained to maximize the design life of the component. To maintain the display module, the surface of the component can be wiped with a soft cloth to eliminate the build-up of contaminants such as oil, grease and dirt and prevent viewing obstacles. In addition, the window suite can be used to protect the display module and prevent unwanted and unauthorized access.
