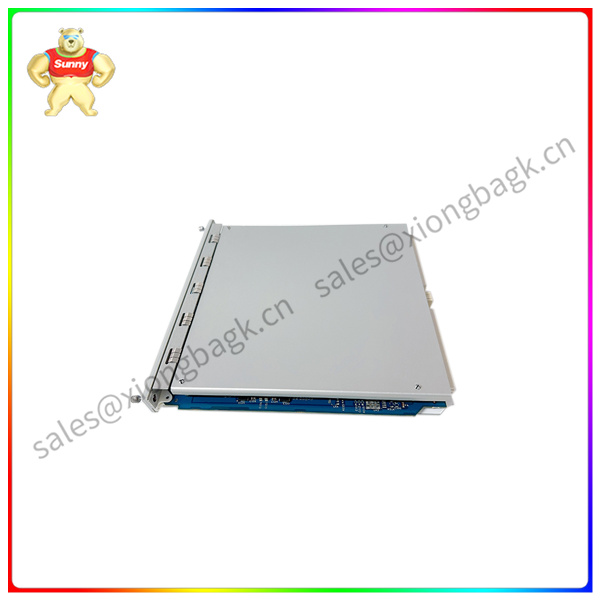

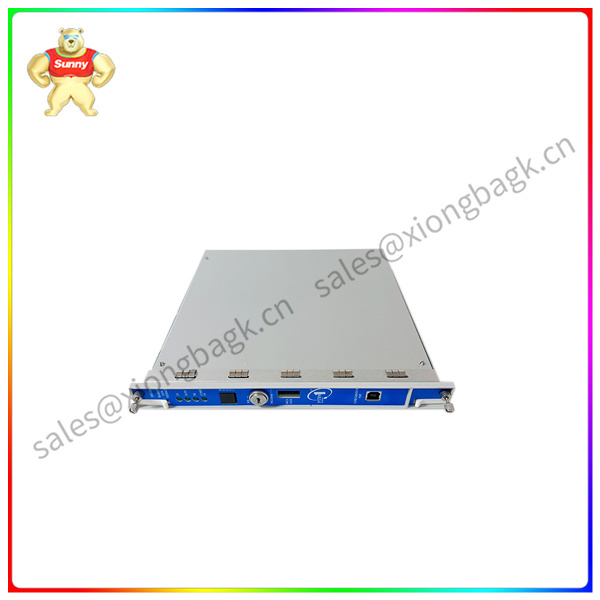

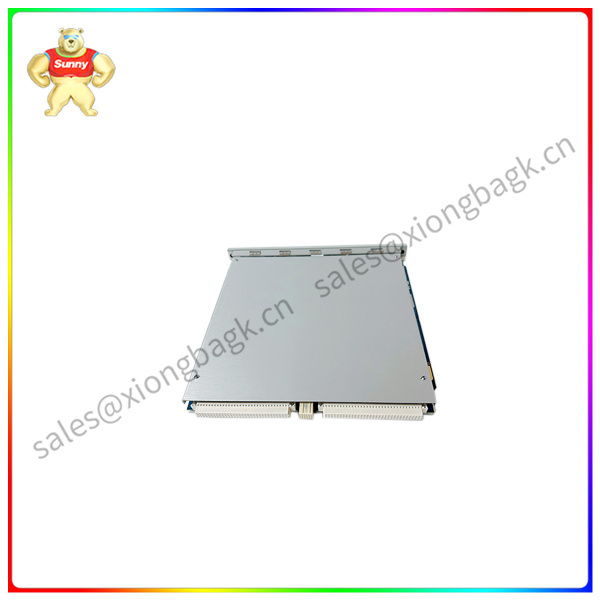

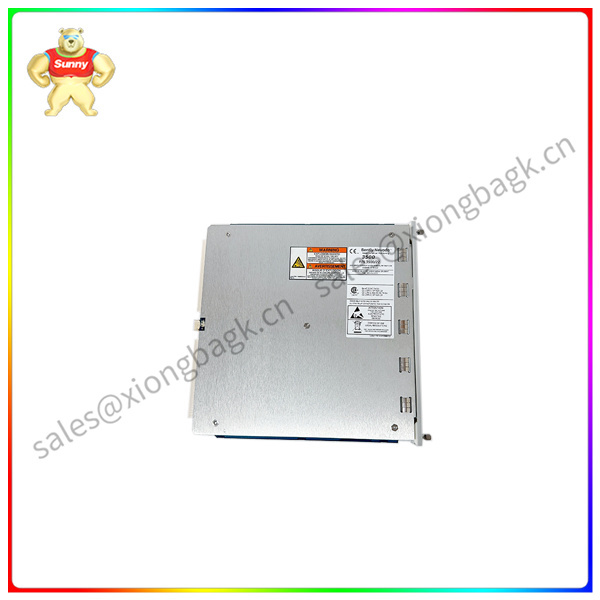

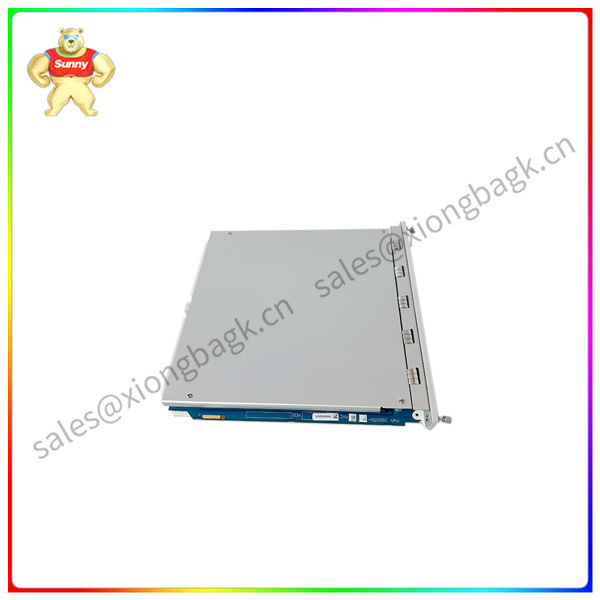

The 288055-01 is a Bentley Nevada 3500/22m scarce front card module model commonly used in the field of industrial automation.
This module has a variety of functions and features, including:
New original stock, quality guaranteed.
The scarce front card module has high collection value and market value.
For the Bentley Nevada 3500/22m system.
When using, pay attention to the following issues:
When ordering, specify the specific module model to avoid confusion or delay.
When used, it is necessary to operate according to the specifications and requirements of the module to ensure its normal operation and extend its service life.
In general, 288055-01 is an important industrial automation equipment, with a wide range of application areas and value. In use, it is necessary to pay attention to operation and maintenance in accordance with the requirements to ensure its normal operation and extend its service life.
The 3500/22M frame interface module is the basic interface to connect to the 3500 frame. The drum uses Bentley Nevada's proprietary protocol to configure the framework and collect machine information. RIM must be installed in the frame
Slot (Next to the power module.
RIM provides a connection that supports current Bentley Nevada communications processors (External Transient Data Interface TDIX and External Dynamic Data Interface DDIX).
RIM uses two types of /O modules, the Framework interface /O module and the data management I/O module. These /O modules allow you to connect the main computer and communication processor to the 3500 frame - only once
Mount a frame interface I/O module behind the RIM(disk or rack mounted frame) or above the RIM(wall mounted frame).
For 3500 monitoring systems, the two effective frame interface I/O modules are the RS-232 /RS-422I/O module and the modem I/O module. The following features are common to both types of I/O modules.
The frame interface I/O module must be mounted behind the frame interface E module (disk or rack mounted frame) or on top of the frame interface module (wall mounted frame).
