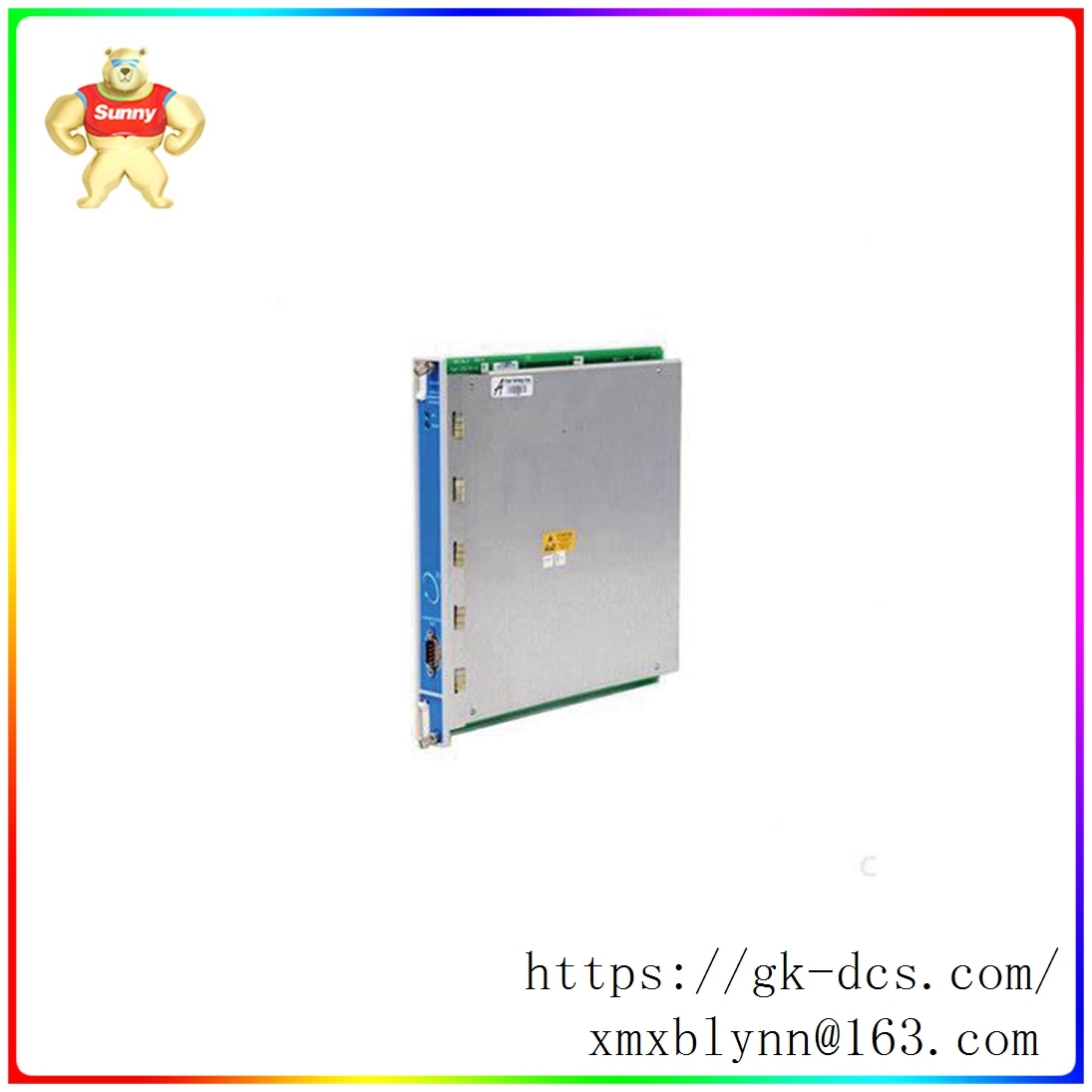

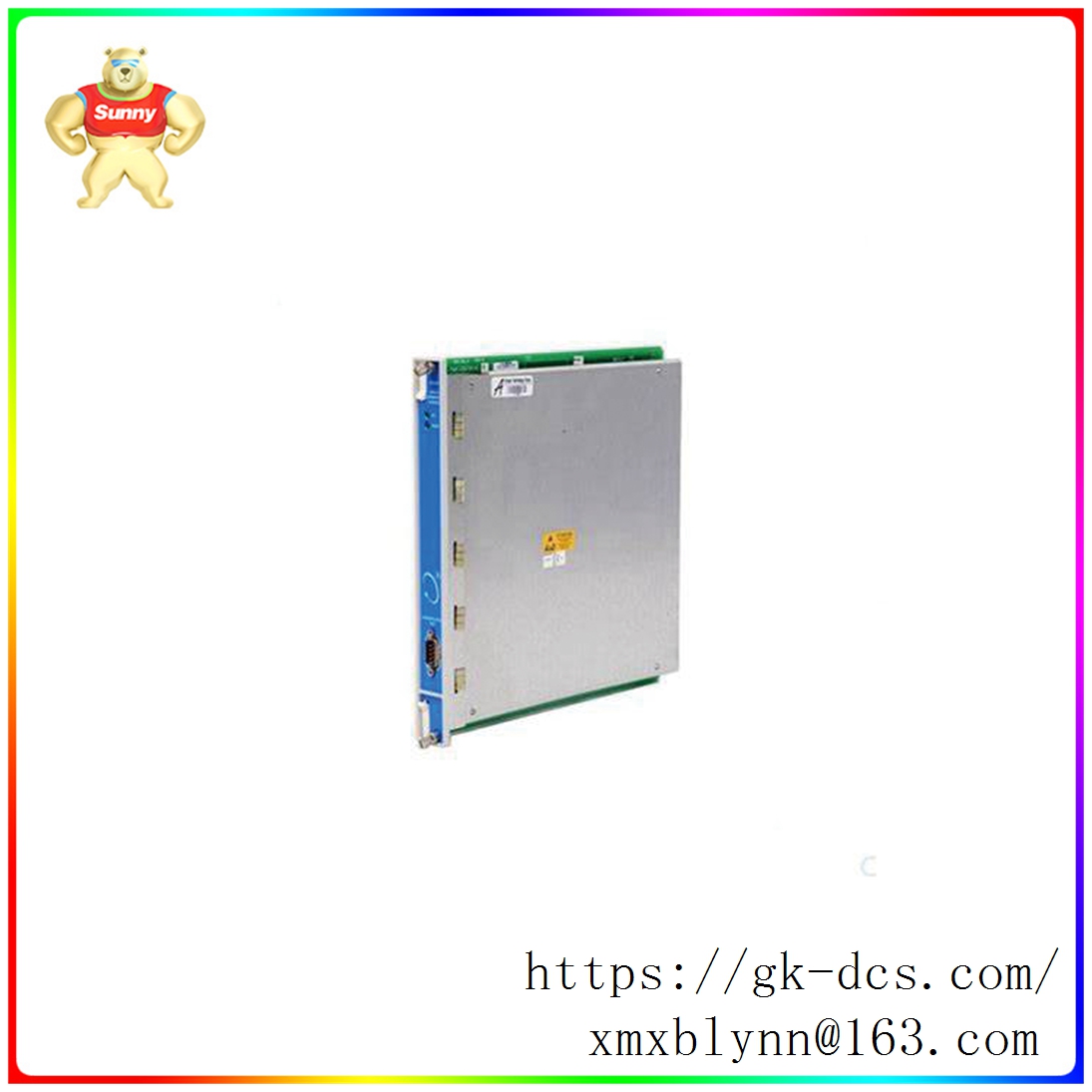

3500/44M 176449-03 Aviation reform GT vibration monitor
Part Number :3500/44M
Manufacturer: Bentley, Nevada
Series :3500
Product type: Aero GT vibration monitor
Dimensions (H x W x D):241.3 mm x 24.4mm x241.8 mm
Weight 0.91 kg
Direct signal :4 Hz to 30 KHZ, -3 dB
Power consumption :7.7 watts, typical value
Availability: In stock
Country of Manufacture: USA (USA)
Function description
The 3500/44M is an aero-modified GT vibration monitor designed and developed by Bentley Nevada. The vibration monitor of aero-modified gas turbine is a four-channel instrument used in aero-modified gas turbine. It continuously monitors the machine by comparing the monitored parameters to the configured alarm Settings in order to generate alarms. It transmits vital machine data to operations and maintenance personnel. The Aero GT I/O module communicates with the Velomitor sensor and accelerometer via the Bently Nevada interface module. The monitor communicates with us via Prox/Velom I/O. You can use the frame configuration software to configure the Aeroderivitive GT vibration monitor for the following filter options :1X vibration tracking, signal integration, and bandpass vibration.
trait
The GT vibration monitor accepts two independent Keyphasor signals as input, allowing each channel pair to use a different tracking filter. The multimode channel can be configured with up to eight sets of alarm parameters, including alarm and hazard setpoints and alarm time delays.
Each group can be customized to a specific machine pattern. When the machine changes mode by using contacts on the multimode I/O module or through software commands on the communication gateway, the monitor can be switched to a specific setting.
