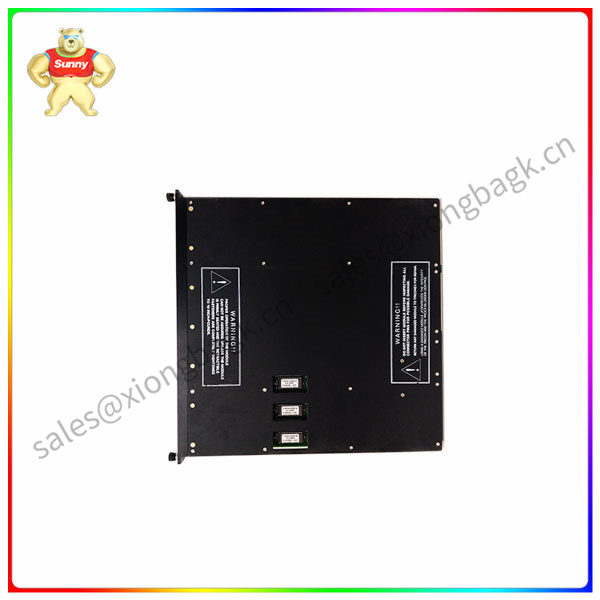

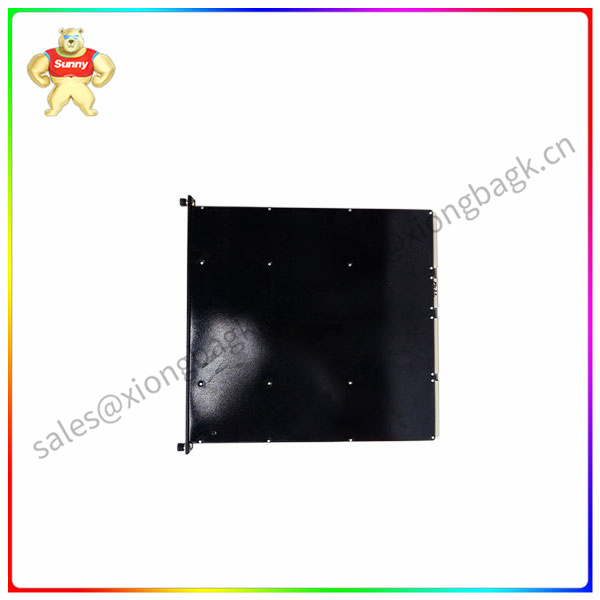

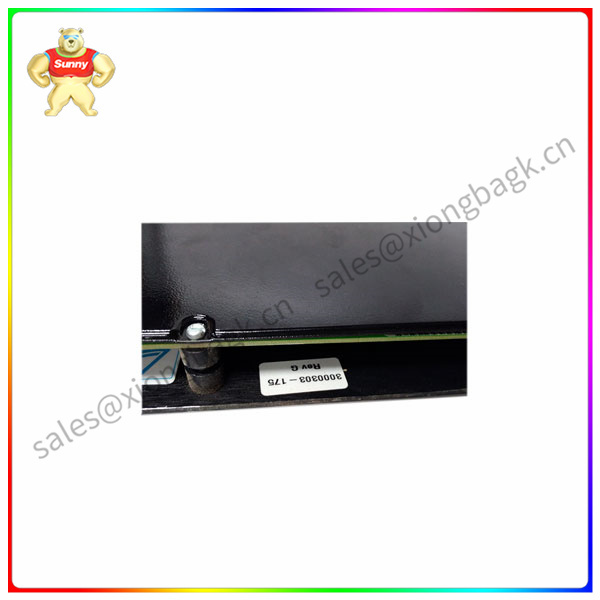

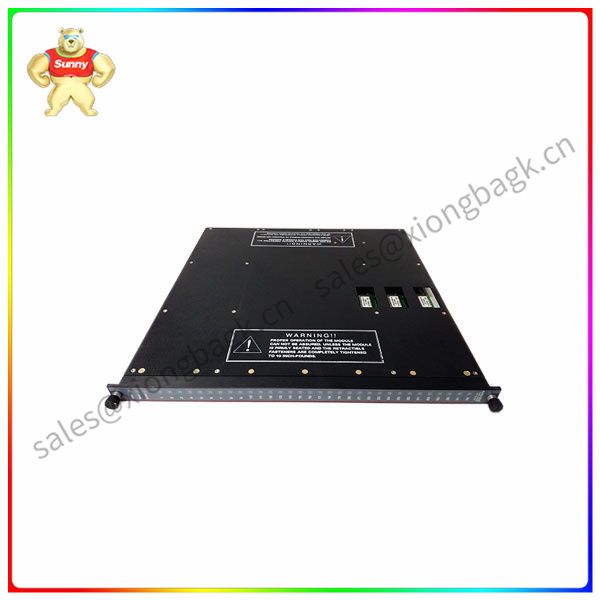

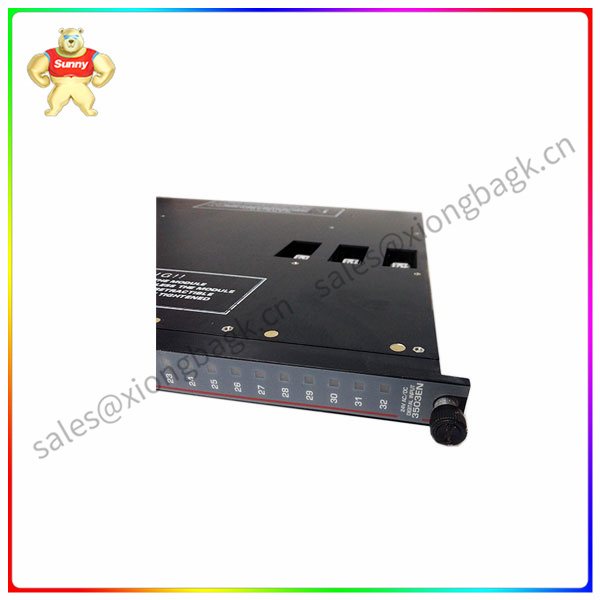

The 3503EN is a digital input module with 32 input channels, typically used to monitor digital signals or switching signals, such as switch status, button status, sensor status, etc. It is usually connected to a PLC, DCS or other control device via an adapter or bus for data transmission and monitoring.
Specifically, the role of the 3503EN digital input module is to convert analog signals collected from various industrial field sensors into digital quantities that the CPU can recognize as received. It is suitable for a variety of industries and fields, such as industrial automation, mechanical equipment monitoring, safety control systems, etc.
In short, the 3503EN is an important digital input module that is widely used in a variety of industrial automation and control systems, providing strong support for stable operation and precise control of the system.
Model: 3503EN 3503E
Manufacturer: TRICONEX
Product name: Digital input module
On the 3503E TMR digital input module, all critical signal paths are 100% triple to guarantee
Security and maximum availability. Each channel processes signals independently and provides isolation between the field and Tricon controllers. The Type 3504E high-density module is an exception.
Is an exception, it has no isolation from channel to channel.
Models 3502E, 3503E, and 3505E include a self-test function that verifies the capabilities of the Tricon controller.
The Tricon controller's ability to detect the transition from a normally energized circuit to a closed state. because
Because most safety systems use a power-off to trip setting, the ability to detect a power failure is an important feature.
Important function. To test a stuck input, a switch in the input circuit is turned off to allow zero input (off).
Allows the optical isolation circuit to read zero input (off). The final data reading is frozen in the I/O processor
Freeze in the I/O processor while the test is running
