5463-531 | Output analog module | Ensure accurate and precise calibration of I/O channels

Product Number: 5463-531
Lead time: 2-3 days
Product Organization: United States
Brand: Woodward
Loading port: Xiamen
Payment: Wire transfer and Western Union
Woodward 5463-531

Main function blocks - These function blocks are supported by dedicated displays on the 1042 and 559 series operating interfaces. They have tag names and other attributes to support online user interaction. Typical main functional blocks include PID, setpoint programming, sequencer, alternator, stage, etc.

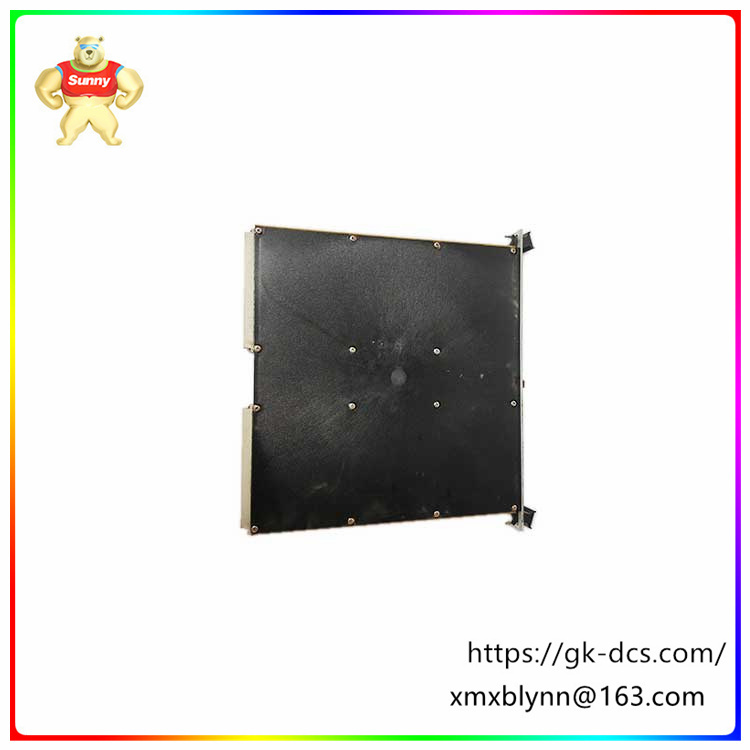

5463-531 is an output analog module developed by Woodward. This module plays a vital role in the control system by providing analog output signals that can be used to regulate and control various devices and processes. It is an important interface between the control system and external components, allowing precise control of key variables. The module component was developed by Woodward and integrates several advanced features to enhance its functionality and performance. These features include an onboard processor for automatically calibrating I/O channels and a time-stamp capability with a resolution of 5 ms for analog inputs. The module assembly includes an onboard processor for each board, ensuring accurate and precise calibration of the I/O channel. Automatic calibration eliminates the need for manual calibration procedures, simplifies setup and reduces maintenance requirements. With onboard processors, module components can continuously monitor and adjust the calibration of each channel, ensuring the best accuracy and reliability of the analog output signal. In addition to automatic calibration, the analog input of the module components is also equipped with a timestamp function. This feature enables the module to record the precise time when the input signal exceeds a predefined threshold. The timestamp function provides valuable information for event logging, troubleshooting, and process analysis. The module components have a resolution of 5 ms and can accurately capture the timing of changes in the input signal, allowing for precise monitoring and analysis of transient processes.

trait
The module is rated for 4-20 mA.
Another feature of the module is its compatibility with DCS II systems.
It uses state-of-the-art technology and engineering excellence to ensure optimum performance and durability. It is able to withstand challenging operating environments, including extreme temperatures, vibration and electrical interference, while maintaining consistent and reliable analog output signal generation.
One of the main features of the module is its versatility and flexibility. It supports a variety of analog output types, such as voltage, current, or milliamp outputs. This versatility can be seamlessly integrated with a wide range of devices and systems to meet a wide range of control requirements in industries such as power generation, industrial automation, and oil and gas.
The module provides multiple analog output channels, allowing simultaneous control of multiple devices or variables. Each channel can be individually configured and calibrated to provide precise customization for specific control needs. This flexibility makes it ideal for applications that require high-precision analog control and regulation.
Woodward emphasizes user-friendly design in product development. It provides an intuitive configuration interface and software tools that simplify the setup and integration process. This ensures seamless compatibility with existing control systems and minimizes downtime during installation and maintenance activities.
In addition, it integrates advanced safety features and troubleshooting capabilities. It includes protective measures to prevent damage to connected devices and systems, and provides comprehensive monitoring and diagnostic capabilities to detect and resolve any issues in a timely manner.
System TMR CPU features
Each CPU module runs the same software program as the other two. The input from each kernel is distributed to the other two. Before sending a signal to the application software, each CPU compares the value it reads with the value read by the other two cpus.
Depending on the configuration, the voting logic can use a total of nine values for the same input parameter to provide the best signal to the application software. Even if the data values are corrupted along any data path, all cpus use the same correct data to perform application calculations. To produce the same output, all cpus use the same voting input signal in the same application calculation.
