Product number 5464-834
Manufacturer: Woodward

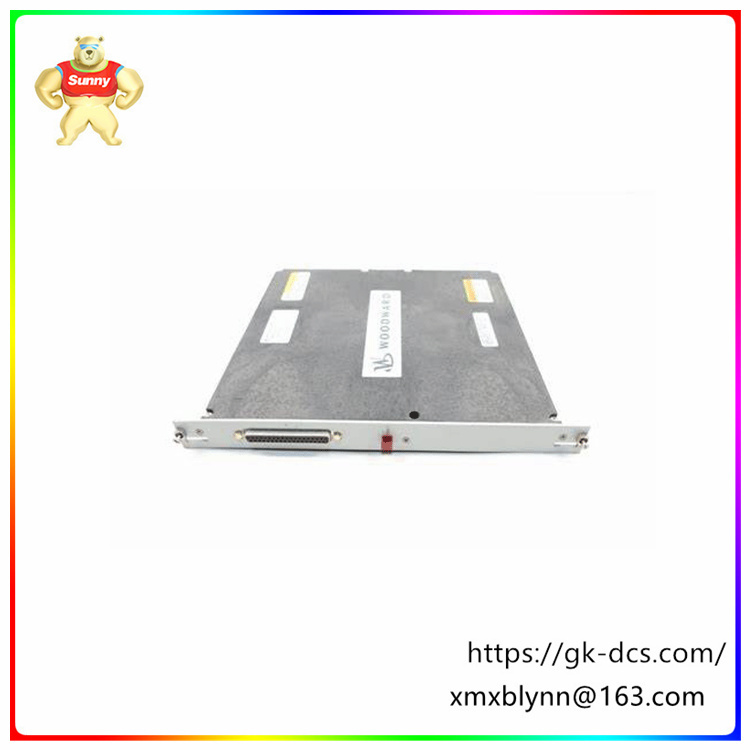

Product Type: Digital speed sensor
Availability: Available
Country of Manufacture: USA
Function description
The 5464-834 is a digital speed sensor developed by Woodward. The module can sense and measure real-time speed data for precise control and monitoring purposes. It can be easily connected to the control system, enabling the monitoring and control of speed parameters. The module provides high precision speed measurement, ensuring reliable and precise speed monitoring. It provides accurate and consistent speed data for efficient control and troubleshooting of rotating machinery.
trait
Number of channels: The module has 4 channels for MPU input and 8 channels for analog input, allowing multiple signals to be monitored and controlled.
Update time: The update time of the module is 5 milliseconds, indicating the speed at which it can process and respond to changes in the input signal.
The maximum input voltage range varies between 4.975 and 5.025 V, depending on the module.
MPU input rating
Input frequency: The MPU input supports the input frequency range from 100 Hz to 25,000 Hz.
Input amplitude: The MPU input accepts an input amplitude from 1 Vrms to 25 Vrms.
Input impedance: The input impedance of the MPU input is 2000 ohms.
Isolation voltage: The MPU input provides isolation up to 500 Vrms.
Resolution: The minimum resolution of the MPU input in the selected frequency range is 12 bits.
Accuracy: The minimum accuracy of the MPU input is 0.03% full scale, ensuring accurate measurement and monitoring of the input signal.
Close to probe input rating
Input frequency: Close probe input supports an input frequency range from 0.5 Hz to 25,000 Hz.
Input amplitude: Close to the probe input accepts an input amplitude from 3.5 Vdc to 32 Vdc.
Available power: The module provides available power of 12 Vdc or 24 Vdc with a maximum current of 50 mA.
Isolation voltage: No isolation voltage (0 Vrms) near the probe input.
Resolution: The minimum resolution for approaching the probe input in the selected frequency range is 12 bits.
Accuracy: Close to the probe input is calibrated by software to achieve full scale accuracy of 0.03%, ensuring accurate measurement and monitoring.
Fuse: Each channel close to the probe input is protected by a 24 Vdc 100 mA fuse, and the 12 Vdc power supply has short circuit protection.
Timestamp: This module supports low event and low latch resolution timestamps of 5 ms, providing accurate event tracking and logging.
Simulate input ratings
Number of channels: The module has 8 channels for analog input.
Update time: The update time for the analog input is 5 milliseconds.
Input range: Analog inputs have an input range of 0-25 mA or 0-5 V, depending on the specific module part number. The scope is determined by the configuration of the module.
