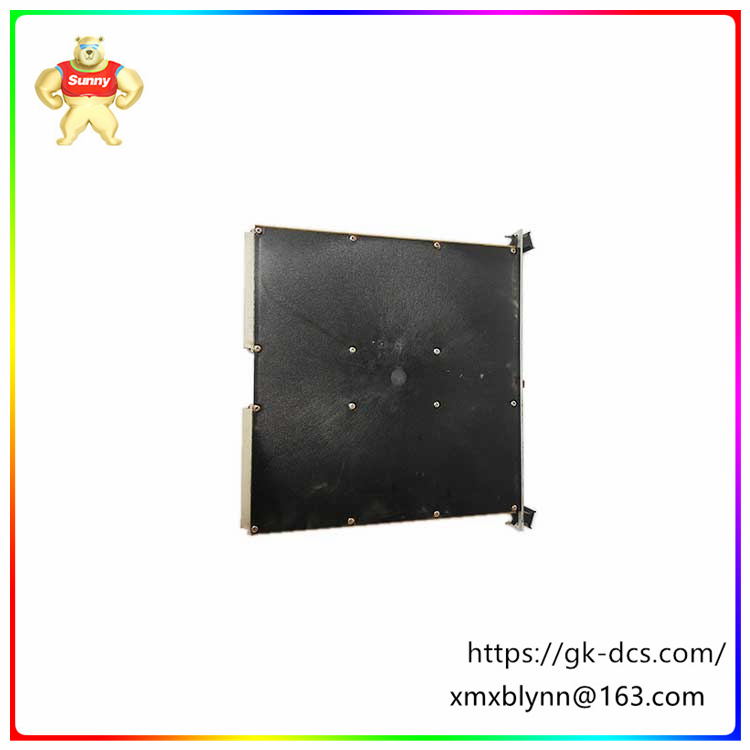

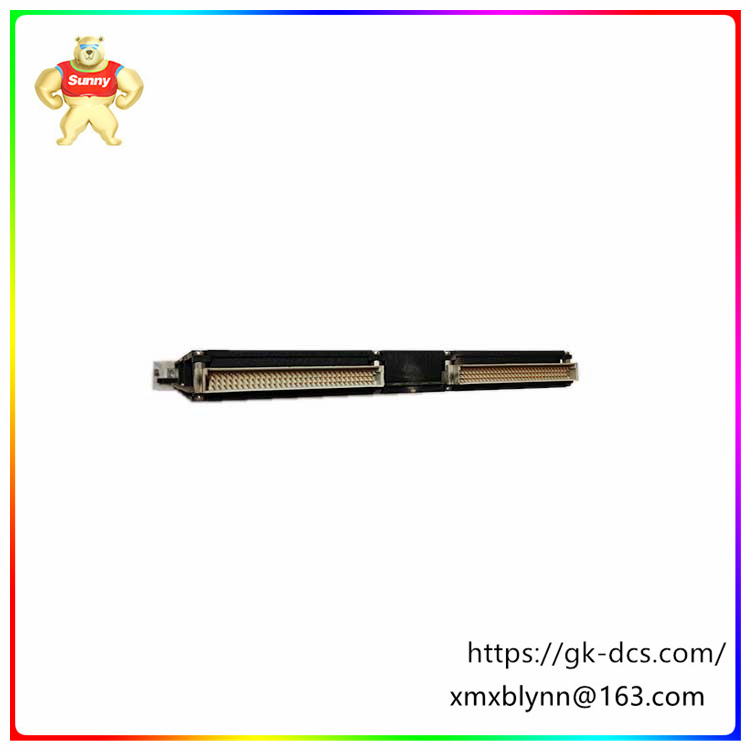

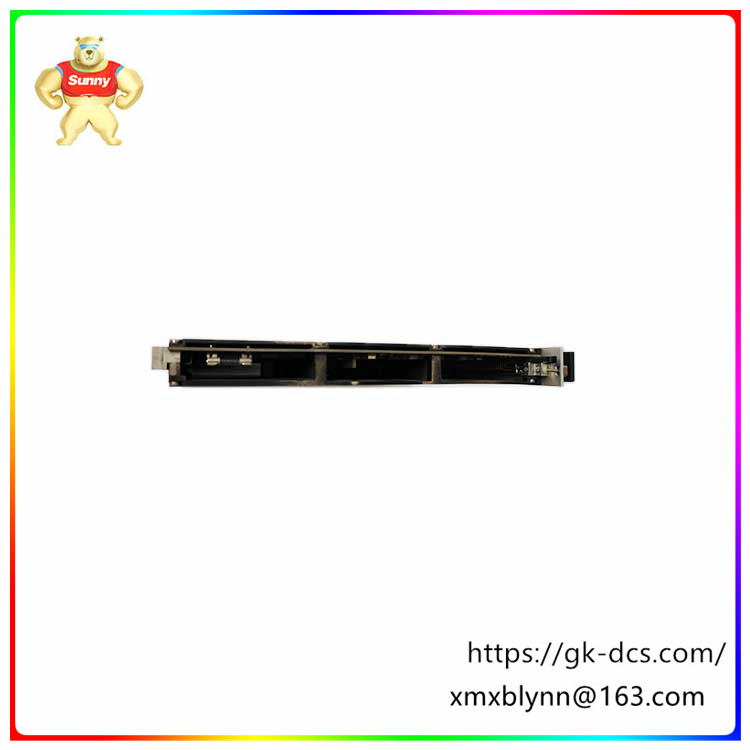

The 5466-258 is a simplex discrete input/output unit manufactured by Woodward as part of the MicroNet digital control family. The module can be used with Vertical-Pro chassis and is suitable for both simplex and redundant systems. Whether it is an 8-slot or 14-slot chassis module, the 5466-258 can be flexibly configured.
The module is a 48/24 discrete combination module, meaning that it has 48 input and 24 output channels, enabling the connection of multiple sensors and actuators. When configured, the module can consist of two 24/12 discrete FTMS, which are connected to the module via two high-density discrete/analog cables. In addition, the discrete inputs on the module are optically isolated, providing greater stability and security.
5466-258 Discrete I/O module is mainly used to receive discrete signals (such as switch status, sensor status, etc.) and control discrete devices (such as relays, solenoid valves, etc.). It has high reliability and is designed to operate continuously and stably in industrial automation systems and meet the requirements of real-time control with fast input and output response times. In addition, in order to adapt to different industrial environments, the module usually has an appropriate level of protection, such as dust and water resistance.
The 5466-258 discrete I/O module has several remarkable features that make it play an important role in industrial automation and control systems.
First, the module has a digital input (DI) function and is able to receive input signals from digital devices such as switches, buttons, sensors, etc. This allows it to detect changes in the state of the device, such as whether a switch is on or off. At the same time, it also has a digital output (DO) function, which is able to control digital output devices such as relays, valves, electric motors, etc., to open or close these devices as needed.
Second, the 5466-258 module has high reliability, which is a very important feature in industrial environments. Its high reliability ensures the stability and safety of the system, which can work continuously and stably during long periods of operation, reducing failures and downtime.
In addition, the module usually has a communication interface that can be integrated with other control devices and systems for automated process control and monitoring. This makes it easy to communicate and exchange data with other system components, improving the synergy and efficiency of the entire system.
In order to integrate with specific automation systems and applications, 5466-258 discrete I/O modules often need to be programmed and configured. This can be done through programming software or configuration tools, providing greater flexibility and customizability.
In addition, some modules also have a status indicator function, through the status indicator or display screen to display the module's working status and fault information. This makes it easy for users to monitor the running status of the module and detect and deal with potential problems in a timely manner.
In summary, the 5466-258 discrete I/O module features digital input/output capabilities, high reliability, communication interfaces, programming and configuration flexibility, and status indications, making it a key component in industrial automation and control systems.
