Motion control (MC) A branch of automation that uses devices known as servomechanisms, such as fluid pumps, linear actuators, or motors, to control the position or speed of a machine. kinesia
Applications in the field of robotics and CNC machine tools are more complex than applications in specialized machines, because the latter has a simpler form of motion and is often referred to as general motion control (GMC). Motion control
It is widely used in packaging, printing, textile and assembly industries.
The basic architectural components of a motion control system include:
A motion controller is used to generate track points (expected outputs) and close a position feedback loop. Many controllers can also close a speed loop internally.
A driver or amplifier that converts a control signal (usually a speed or torque signal) from a motion controller into a higher power current or voltage signal. More advanced intelligent drive can itself
Close the position and speed loops for more precise control.
- An actuator such as a liquid pump, cylinder, linear actuator or motor to output motion.
A feedback sensor such as a photoelectric encoder, rotary transformer or Hall effect device is used to feedback the position of the actuator to the position controller to achieve closure of the position control ring.
A wide range of mechanical components are used to convert the motion form of the actuator into the desired motion form, including gear boxes, shafts, ball screws, belts, couplings, and linear and rotating bearings.
In general, the functions of a motion control system include:
Speed control
Point control (point to point). There are many ways to calculate a motion trajectory, and they are usually based on a motion velocity curve such as a triangular velocity curve, a trapezoidal velocity curve, or an S-shaped velocity curve.
Electronic gear (or electronic CAM). That is, the position of the driven shaft mechanically changes with the position of a drive shaft. A simple example is a system consisting of two turntables, which follow one feed
The relative Angle of rotation is fixed. The electric CAM is more complex than the electronic wheel, which makes the following relation curve between the drive shaft and the driven shaft a function. This curve can be non-linear, but
It has to be a functional relationship.

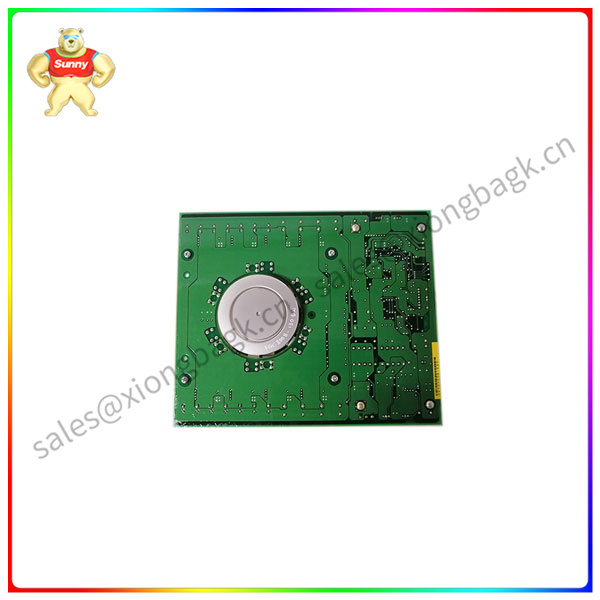

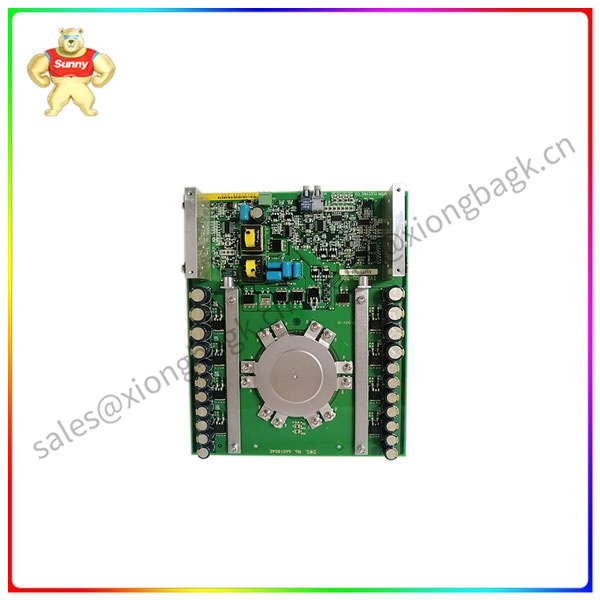

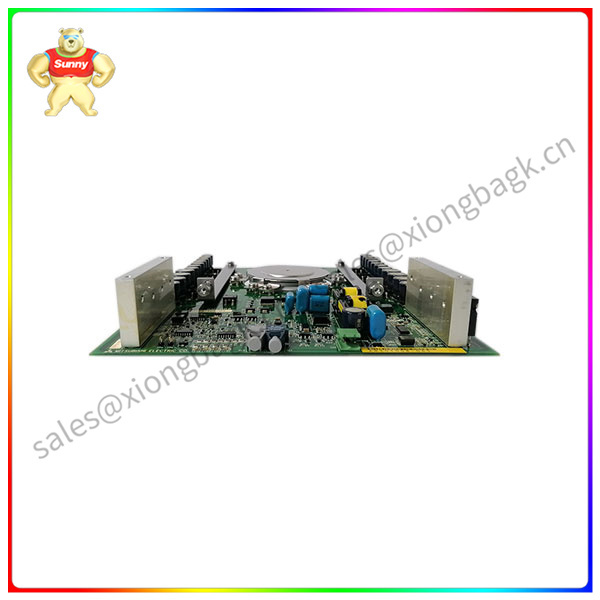

The 81001-450-53-R is a thyristor module commonly used in power control and power conditioning applications. It is also known as a thyristor switch, Silicon Controlled Rectifier, or simply SCR (Silicon Controlled Rectifier).
The thyristor module works based on the properties of the semiconductor silicon material, which can control the current flow. In power control and regulation applications, thyristor modules are widely used in various devices, such as power supplies, motor controllers, lighting systems, etc.
The specific parameters and characteristics of the 81001-450-53-R May vary by manufacturer and model, but generally have the following characteristics:
Voltage and current range: Depending on the specific application requirements, the 81001-450-53-R can withstand different voltages and currents.
Switching speed: The switching speed of the thyristor module is very fast, and the current can be turned on and off in a short time.
Thermal performance: Since the thyristor module generates heat during operation, it needs to have good thermal performance to maintain stable operation.
Reliability and stability: Because thyristor modules play a role in many important systems, they need to have high reliability and stability.
