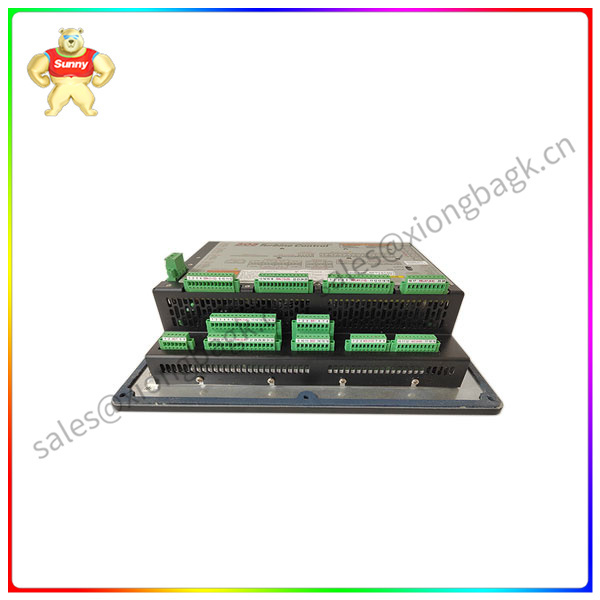

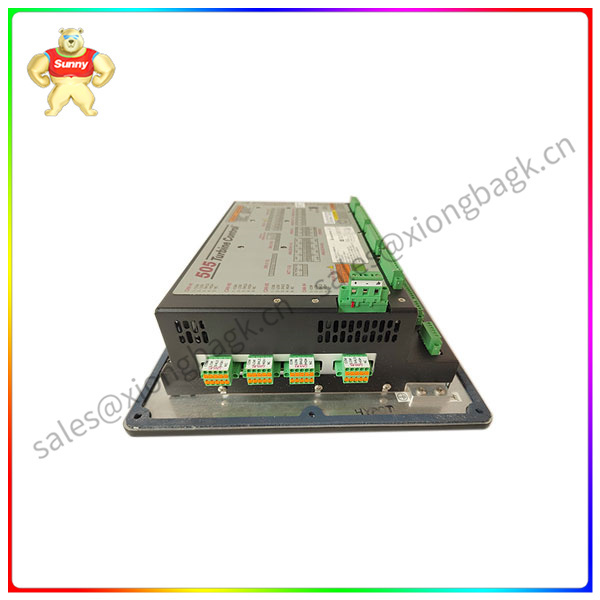

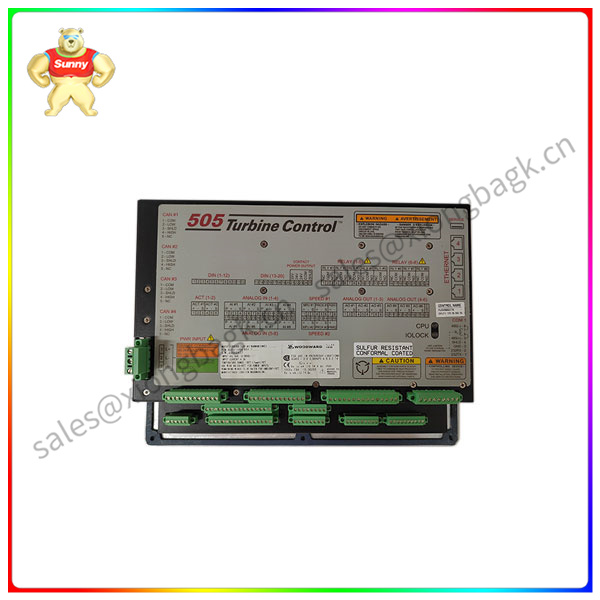

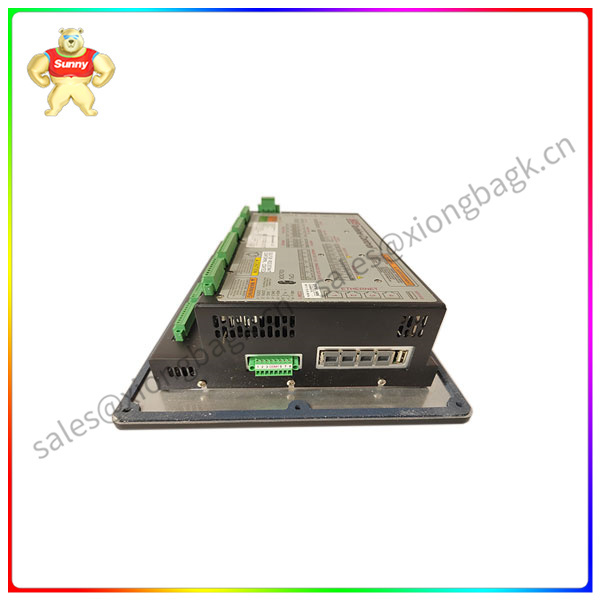

Woodward's 8200-1300 provides digital control for steam turbines. It is one of several digital governors available in the 505 turbine control series. The device uses a standards-compliant LVDC (18-32
VDC) power supply.
The device can be used in non-hazardous places. Also applies to class I, Div. 2. Organize A/B/C/D positions. The unit is usually fitted with stranded copper field wiring with a temperature rating of at least 75 degrees Celsius.
The 8200-1300 can control single or double split actuator turbines. It can be configured as part of a factory DCS(Distributed control System) or used as a stand-alone unit. It is designed with five PID controls

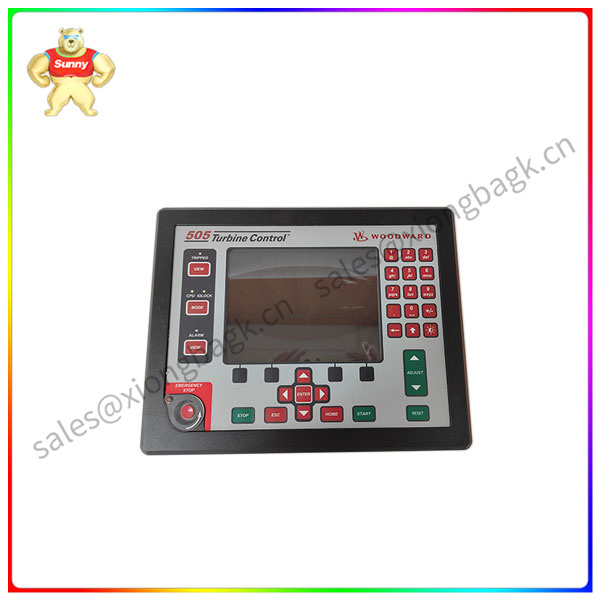

Controllers, including speed/load PID controllers, cascade PID controllers, and AUX1 and AUX2 PID controllers. The unit provides an operator control surface with a graphical control panel display and keyboard
Board. The panel includes an emergency stop button, start, stop, esc, and home buttons, a numeric keypad, a toggle up and down button, and a back with up and down and left/right buttons
The car keys. There are also four leds on the left side of the panel, including CPU Health, I0 lock, summary alert, and summary trip.
Internally, the 8200-1,300 includes a watchdog timer and a CPU fault circuit to monitor the operation of the microprocessor and its phase storage.
The 8200-1300 can control single or double split actuator turbines. It can be configured as a factory
Part of the DCS(Distributed control System), it can also be used as a standalone unit. Other set
The meter has five PID controllers, including speed/load PID controller and cascade PID controller
And AUX1 and AUX2 PID controllers. The device is provided with a graphical control surface
Board display and keyboard operator control panel. The panel includes an emergency stop press
Button, start, Stop, esc and home buttons, a numeric keypad, up/down toggle
Button and a return key with up and down and left/right buttons. Panel left
There are also four leds, including CPU Health, I0 lock, summary alert, and summary trip.
